Most Trusted Steel Dowel Pins Manufacturer in India

Dowel Pin Features

Ready Stock: M1 to M20
Diameter: 1mm to 12 mm
Sizes Can Be Manufacture: Up to 2"
International Standard: ASME B18.8.2
Dowel Pin Standard: DIN 7, DIN 6325, ISO 2338
Raw Material Origin: Morocco, South Africa, New Zealand, SA, Europe, New Zealand, Algeria, United Kingdom, Australia India etc
MTC: EN 10204/3.1B
Suitable Environment: Salt Water and Mild Acids
Thread Pitch: Fine Thread and Coarse Thread
Finish: Phosphating, HDG, Oxidation
Threads: UNJ, UNC, UNF, Rolled, UNR
Two Primary Functions: Alignment and Fastening

To Know About Latest Price List of Dowel Pin Please Contact Us

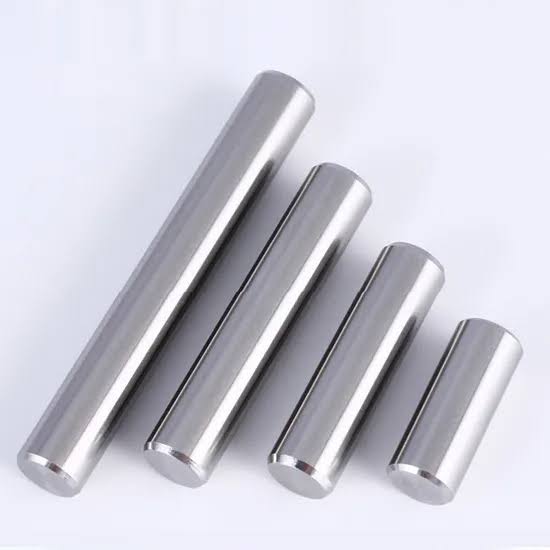

Carbide Dowel Pins

Carbide Dowel Pins

Vented Dowel Pins

Vented Dowel Pins

Stepped Dowel Pins

Stepped Dowel Pins

Table of Content

Dowel Pin Specification

Dowel Pin Size

  • M1 to M20

Stainless Steel Dowel Pins Diameter

  • 1mm to 12 mm

Grades

  • Grade 8

Metric dowel Pins Dowel Style

  • Vented, Spiral & Flat Vent
  • Standard Round

Metal dowel pins Manufacturing Methods

  • Cold Forging
  • CNC Machined
  • Hot Forging

Testing & Inspection

  • Magnetic Particle Inspection
  • Proof Load Test
  • Salt Spray Testing

Packaging

  • Wooden Pallet
  • Wooden Cases
  • Carton Box

Standards

  • ASME B18.8.2
  • DIN 7 and DIN 6325

Finishes

  • Black Oxide
  • Zinc Flake Coated
  • Plain

Supplier of Vented Dowel Pins in Various Sizes and Grades at Lowest Price in Mumbai

Price List of Dowel Pin

Are You Trying to Find Dowel Pin at a Discount? To get an estimate immediately Contact Us

Diamond Dowel Pin Sizes

Dowel Pin Supplier in India Who Provides Sizes and Specification

ASME B18.8.2 Size : 1/8", 1/4", 1/2"
DIN 7 & DIN 6325 Size : M1 to M20
ISO 2338 & 8734 1mm to 20mm

Exporter of Proof Load Tested Stepped Dowel Pins For Extreme Environments

Dowel Pin Load Capacity

Nominal Pin Diameter 1/8 3/16 1/4 5/16 3/8 7/16 1/2 5/8 3/4 7/8
Double Shear Load 3,200 lb 7,200 lb 12,800 lb 20,000 lb 28,000 lb 38,000 lb 50,000 lb 78,000 lb 114,000 lb 150,000 lb

Get Threaded Dowel Pin With Various Threads for Aerospace and Marine Industry

Threaded Dowel Pin Applications

Dowel Pin Supplier in India Supplying in Various engineering applications

  • General-purpose
  • High-strength Applications
  • Corrosive environments
  • Food processing
  • Medical
  • Aerospace
  • Weight-sensitive applications
  • Electronic applications

Types of Dowel Pins

Threaded Dowel Pin

Threaded Dowel Pin

Magnetic Dowel Pins

Magnetic Dowel Pins

Diamond Dowel Pin

Diamond Dowel Pin

Check Ready Stock of Diamond Dowel Pin in ASME B18.8.2, DIN 7 and DIN 6325, Also Check Tolerance

Dowel Pin Tolerances

Dowel Pin Manufacturer in India Offering Custom Tolerance at Lowest Price

Size 0.8 – 12 mm 6.35 – 50.8 mm
Tolerances O.D. tolerance is +/- .0001 Length tolerance is +/- .010

Round Head Dowel Pins Dimensions

Dowel Pin Height of Crown Standard Diameter of Dowel Pin Diameter of Point
Size (C and R) Min-Max. (A) (B) Min-Max.
1/16 0.008 – 0.020 0.0627 0.048 – 0.058
1/8 0.016 – 0.041 0.1250 0.110 – 0.120
5/32 0.020 – 0.052 0.1562 0.140 – 0.150
5/64 0.010 – 0.026 0.0783 0.064 – 0.074
3/32 0.012 – 0.031 0.0940 0.079 – 0.089
3/16 0.023 – 0.062 0.1875 0.170 – 0.180
1/4 0.031 – 0.083 0.2500 0.230 – 0.240
7/16 0.055 – 0.146 0.4377 0.409 – 0.424
1/2 0.063 – 0.167 0.5002 0.471 – 0.486
5/16 0.039 – 0.104 0.3127 0.290 – 0.302
3/8 0.047 – 0.125 0.3752 0.350 – 0.365
5/8 0.078 – 0.208 0.6252 0.595 – 0.611
3/4 0.094 – 0.250 0.7502 0.715 – 0.735
7/8 0.109 – 0.293 0.8752 0.840 – 0.860
1 0.125 – 0.333 1.0002 0.960 – 0.980
