ISO Certified Stainless Steel Hex Flange Bolt Manufacturer in India
Flange Bolt Highlights
| Ready Stock: |
M5 To M27 |
| Custom Sizes: |
Up to 2 1/2" |
| Length: |
3mm to 200mm |
| International Standard: |
DIN 6921 , ISO 4162 |
| Raw Material Origin: |
SA, Algeria, Europe, New Zealand, New Zealand, United Kingdom, Morocco, South Africa, India,
Australia etc |
| MTC: |
EN 10204/3.1B |
| Thread Pitch: |
Coarse Thread and Fine Thread |
| Finish: |
HDG, Oxidation,Phosphating |
| Threads: |
UNJ, Rolled,UNC, UNR, UNF |
| Temperature Range: |
425°C (800°F) |
To Know About Latest Price List of Flange Bolt Please Contact Us
Flange Bolt Specification
Check Flange Bolt Supplier in India who provides Custom Specification

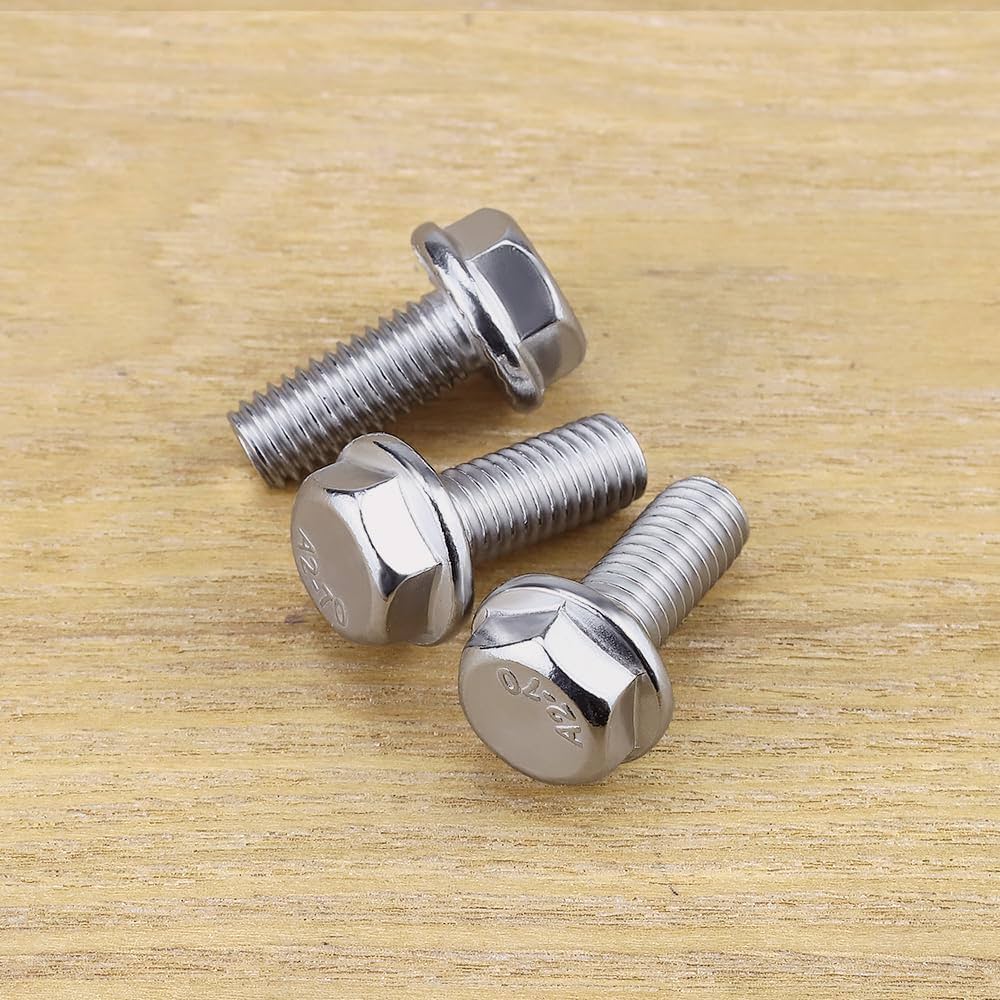

Stainless Steel Hex Flange Bolt Classification
- Serrated and Non-Serrated
Button Head Flange Bolt Metric

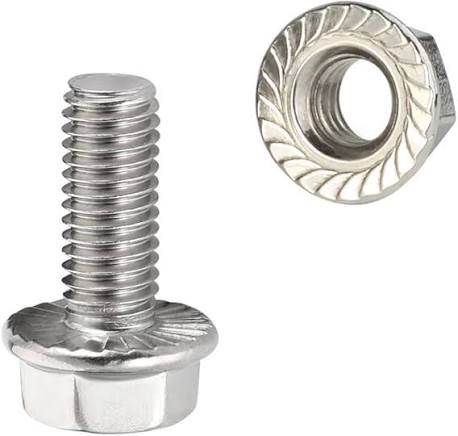

Serrated Flange Bolt Thread Pitch
Flange Bolts Manufacturing Methods
- CNC Machined
- Cold Forging
- Hot Forging
Flange Exhaust Bolts Packaging
- Carton Box
- Wooden Pallet
- Wooden Cases
Supplier of Button Head Flange Bolt With Exact weight as Per Project Requirements at Best Price in
Mumbai
Flange Shoulder Bolt Weight Chart
| Size |
Weight (1000 Piece) |
| M5 |
3.22 kg |
| M8 |
13.76 kg |
| M6 |
6.94 kg |
| M12 |
44.35 kg |
| M10 |
24.04 kg |
| M16 |
83.82 kg |
| M14 |
66.13 kg |
Price List of Flange Bolt
Stockist of Proof Load Tested Serrated Flange Bolt With M5 to M27 Sizes
Range

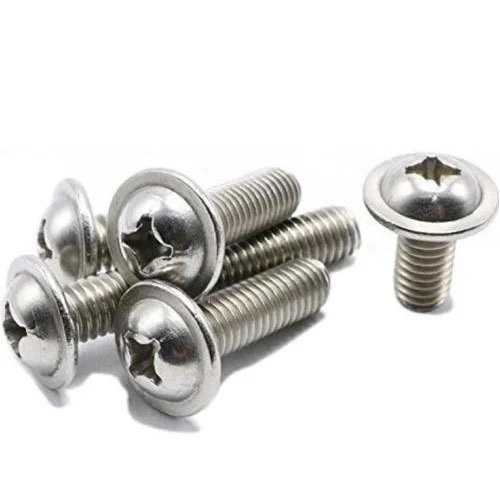

Flange Screws Size
Find Flange Bolt Supplier in India offering various Sizes
| Size |
Hole Size |
Size of Flange Bolt |
| DN10 |
4 |
M12 * 50MM |
| DN40 |
4 |
M16 * 60MM |
| DN20 |
4 |
M12 * 50MM |
| DN80 |
4 |
M16 * 65MM |
| DN50 |
4 |
M16 * 60MM |
| DN150 |
8 |
M20 * 75MM |
| DN100 |
8 |
M16 * 65MM |
| DN250 |
12 |
M20 * 85MM |
| DN200 |
8 |
M20 * 80MM |
| DN400 |
16 |
M24 * 85MM |
| DN300 |
12 |
M20 * 85MM |
| DN500 |
20 |
M24 * 90MM |

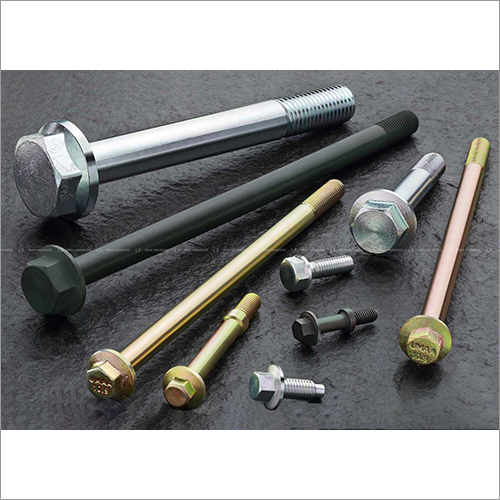

Check Ready Stock Of Flange Bolts for Automotive Industry as per DIN 6921 Standards
Flange Bolt DIN 6921
Applications
-
Automotive and Engines
-
Machinery
-
Aerospace and Manufacturing
-
Piping Plumbing
-
Construction
Types of Flange Bolt
Buy Ready Stock of Forms from Flange Bolt Manufacturer in India at Best Price
Stainless Steel Flange Bolts
Exporter of Flange Exhaust Bolts in Various Materials Like Stainless Steel, Nickel Alloy, Brass and
Titanium etc
Flange Head Bolts Materials
Check Flange Bolt Manufacturer in India providing different various Material
| Material |
| Stainless Steel Flange Bolts |
Carbon Steel Flange Bolts |
| Alloy Steel Flange Bolts |
Brass Flange Bolts |
| Titanium Flange Bolts |
|
Hex Flange Bolt Dimensions
|
Size |
A Width Across Flats |
|
B Across Corners |
C Head Height |
D Flange Dia. |
E Flange Bearing Dia |
|
 |
Max |
Min |
Min |
Max |
Max |
Min |
|
M6 |
10
|
9.78 |
10.95 |
6.6
|
14.2 |
12.2 |
|
M8 |
13
|
12.73 |
14.26 |
8.1
|
18
|
15.8 |
|
M10 |
15
|
14.73 |
16.5 |
9.2
|
22.3 |
19.6 |
|
M12 |
16
|
15.73 |
17.62 |
11.5 |
26.6 |
23.8 |
|
M16 |
21
|
20.67 |
23.15 |
14.4 |
35
|
31.9 |

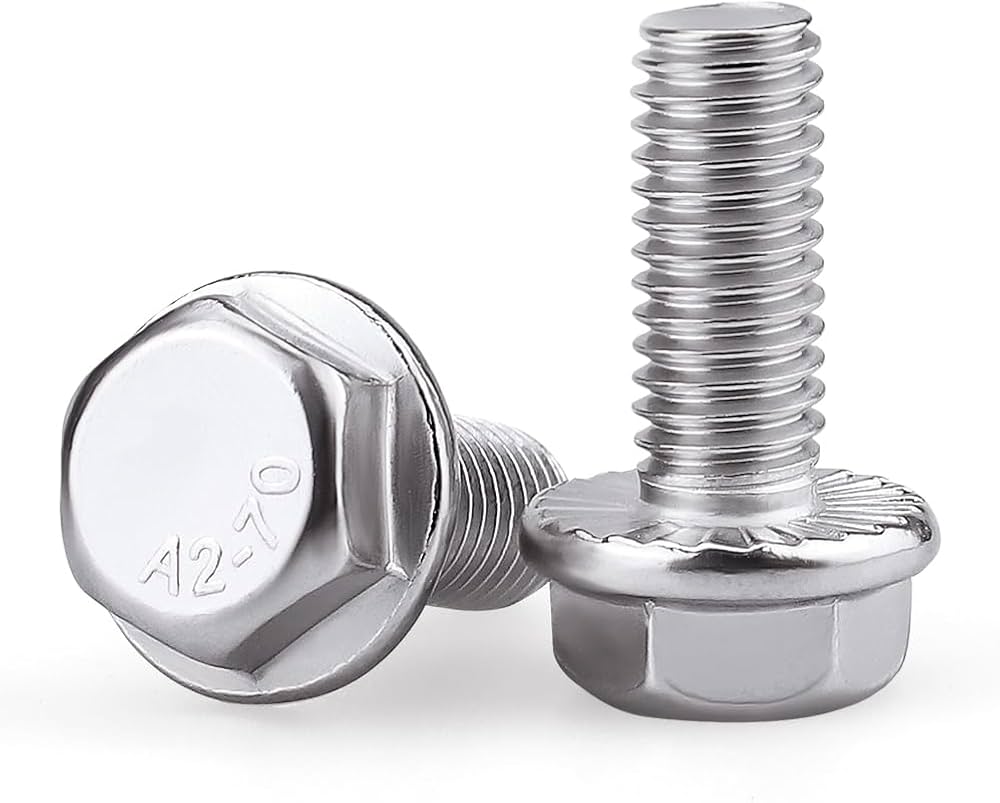

Flange Stud Bolts Torque Chart
|
Size |
Torque in LBS (Min-Max) |
Bolt of Diameter |
| 1/2
|
40
- 50 |
1/2
|
| 1
|
40
- 50 |
1/2
|
| 3/4
|
40
- 50 |
1/2
|
| 2
|
80
- 90 |
5/8
|
| 1
1/2 |
40
- 50 |
1/2
|
| 2
1/2 |
80
- 90 |
5/8
|
| 3
1/2 |
80
- 90 |
5/8
|
| 3
|
110
- 120 |
5/8
|
| 4
|
100
- 110 |
5/8
|
