Grub Screws

Most Trusted Stainless Steel Grub Screws Manufacturer in India

Grub Screw Features

Ready Stock:	M1 To M20
Custom Sizes:	Up to 2"
Length:	3mm to 200mm
International Standard:	ASME B18 2.2 and ASME B18 2.1, DIN 970, DIN 933, DIN 931
DIN Standard:	DIN 913/14/15
Raw Material Origin:	United Kingdom, Morocco, South Africa, SA, Europe, New Zealand, Algeria, New Zealand, Australia India etc
MTC:	EN 10204/3.1B
Suitable Environment:	Salt Water and Mild Acids
Thread Pitch:	Fine Thread and Coarse Thread
Finish:	HDG, Oxidation, Phosphating
Threads:	UNJ, UNC, UNF, Rolled, UNR
Temperature Range:	-180°C to +800°C

To Know About Latest Price List of Grub Screw Please Contact Us

Imperial Grub Screws

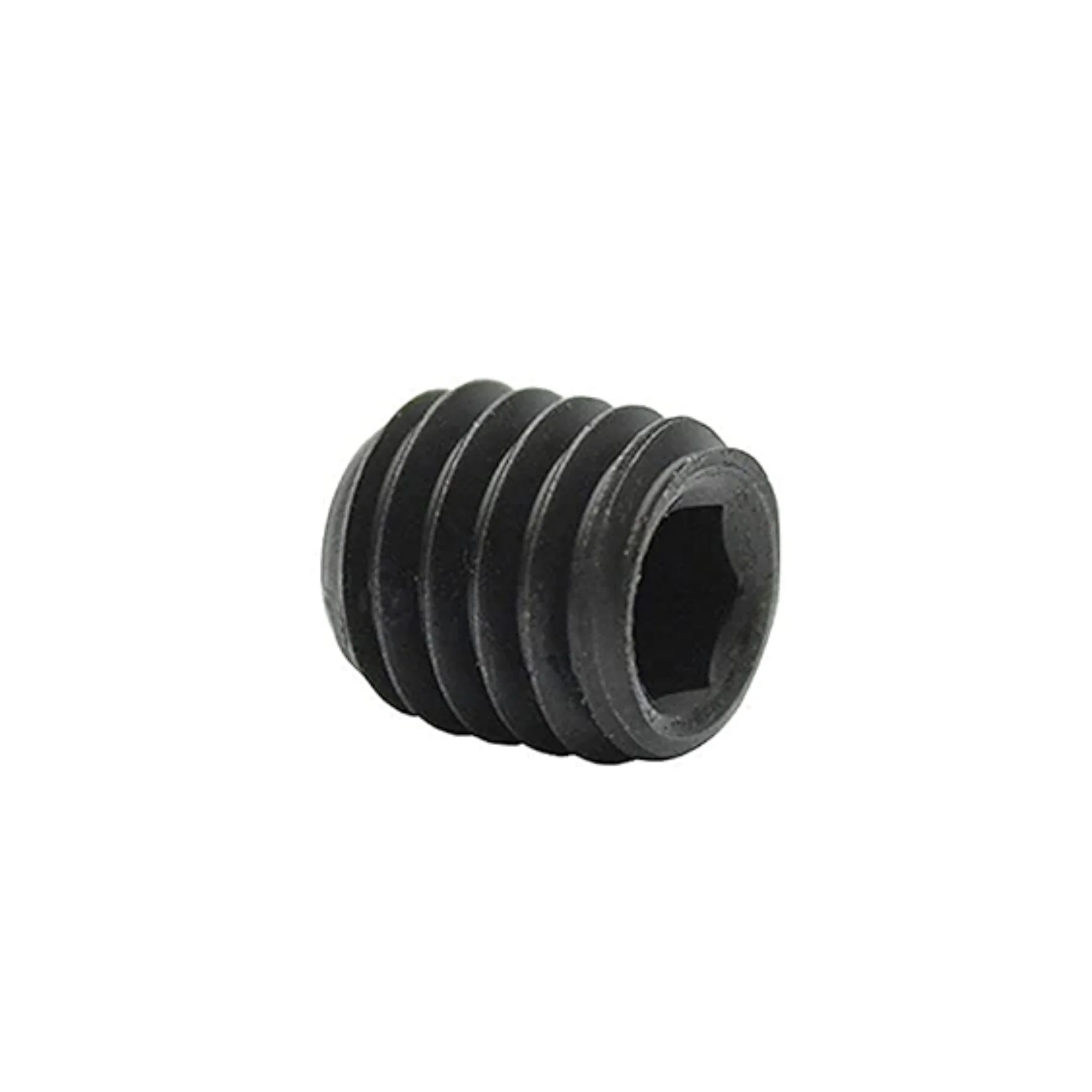

Small Grub Screws

Nylon Grub Screws

Grub Screw Specification

Grub Screw Manufacturer in India Who Ofeer Technical Specification

Grub Screw Size

M1 To M20

Set Screw Diameter

1.5mm to 120mm

Sizes Can Be Manufacture

Up to M150

Imperial Grub Screws Steel Class

Stainless Steel Grub Screws Manufacturing Methods

Cold Forging
CNC Machined
Hot Forging

Countersunk Grub Screws Benefits

Used in Tight Spaces
Less Expensive
Adjusted or Removed Easily

Slotted Set Screws Tolerance

+/-0.01mm to +/-0.05mm

American Standard

ASME B18.3

DIN Standard

DIN 913/14/15

Supplier Of Dog Point Grub Screw With Custom Sizes in DIN 914/15/16 Standards

Grub Screws Dimensions (DIN 914)

d	t min	s
M3	1.2	1.5
M4	1.5	2
M5	2	2.5
M6	2	3
M8	3	4
M10	4	5
M12	4.5	6
M16	6.4	8
M20	8	10

Grub Screws Dimensions (DIN 915)

M3	2	1.2	1.5
M4	2.5	1.5	2
M5	3.5	2	2.5
M6	4	2	3
M8	5.5	3	4
M10	7	4	5
M12	8.5	4.8	6
M16	12	6.4	8
M20	15	8	10
M24	18	10	12

Grub Screws Dimensions (DIN 915)6

Grub Screw Manufacturer in India who offers Accurate Dimensions

M2	1	0.8	0.9
M2.5	1.2	1.2	1.3
M3	1.4	1.2	1.5
M4	2	1.5	2
M5	2.5	2	2.5
M6	3	2	3
M8	5	3	4
M10	6	6	5
M12	8	8	6
M14	9	9	6
M16	10	10	8
M20	14	12	10
M24	16	15	12

Refer to the Self Tapping Grub Screw Point Style and Set Screws Torque Chart

Price List of Grub Screw

Are You Looking for Grub Screw at the Best Price? Please Contact Us

Exporter of Cone Point Set Screws in Exact Weight as Per Customer Requirement for Door Handlet

Allen Grub Screw Weight Chart

Length		2.5	4	6	10	16	25	35	45	55
Diamter	M2	0.0037	0.0059	0.0089	0.0148	-	-	-	-	-
	M3	-	0.014	0.022	0.038	0.062	-	-	-	-
	M5	-	-	0.054	0.102	0.174	0.282	-	-	-
	M8	-	-	-	0.251	0.44	0.724	1.04	-	-
	M12	-	-	-	-	0.95	1.58	2.27	2.97	3.66
	M20	-	-	-	-	-	4.14	6.2	8.26	10.3
	M1.6	0.0025	0.0037	0.0054	-	-	-	-	-	-
	M2.5	0.0063	0.01	0.015	0.0249	-	-	-	-	-
	M4	-	0.023	0.038	0.068	0.113	-	-	-	-
	M6	-	-	0.074	0.144	0.249	0.407	-	-	-
	M10	-	-	-	0.372	0.673	1.12	1.62	2.12	-
	M16	-	-	-	-	1.57	2.74	4.04	5.33	6.63
	M24	-	-	-	-	-	5.52	8.53	11.5	14.5

Types of Grub Screw

Grub Screw Supplier in India Who Deliver Various Types

Dog Point Grub Screw

Allen Key Grub Screw

Assorted Grub Screws

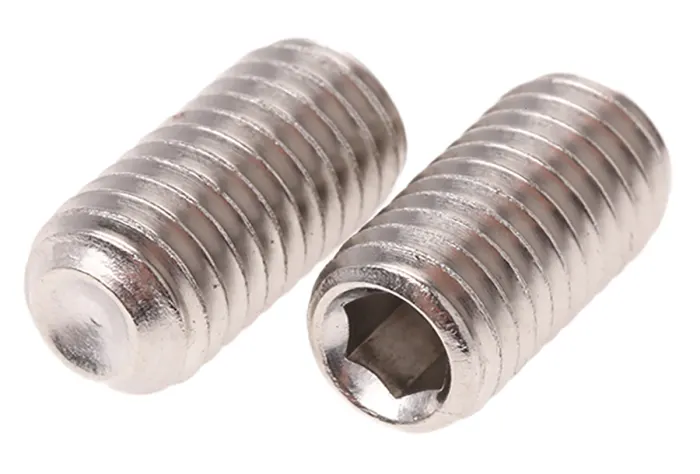

Hex Grub Screws

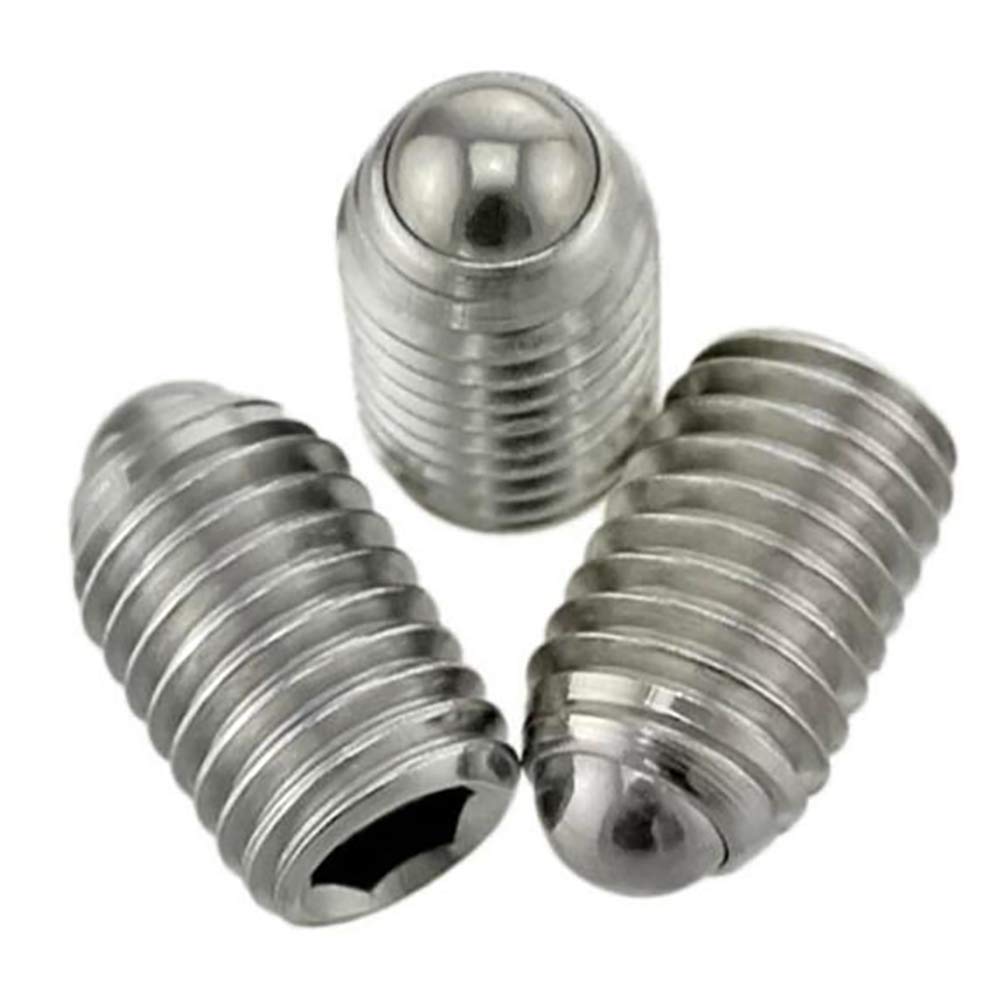

Ball End Grub Screws

Self Tapping Grub Screws

Three Types Of Slotted Head Grub Screws

Torsional	Axial	Vibrational
Resistance to rotation	Resistance to lateral movement	-

Slotted Set Screws Size

Product	Sizes	Standard
Slotted Set Screws With Cone Point	M6 to M12	DIN 553
Slotted Set Screws With Flat Point	M6 to M15	DIN 551
Slotted Set Screws With Long Dog Point	M6 to M30	DIN 438
