Lag Bolts

Stainless Steel Lag Screws Manufacturer in India Available in 304 and 316 Grade

Lag Bolts Core Characteristics

Ready Stock: M10 to M100
Custom Sizes: Up to 4"
Length: 3mm to 200mm
International Standard: ASME B18 2.2 and ASME B18 2.1, DIN 970, DIN 933, DIN 931
DIN Standards: DIN 7981, DIN 931, B.S. DIN 933, DIN 912, DIN 934, DIN 603, DIN 970, DIN916, DIN 7982, DIN 7985, DIN 913, DIN 6923
Raw Material Origin: United Kingdom, Morocco, SA, Europe, New Zealand, Algeria, South Africa, New Zealand, Australia India etc
MTC: EN 10204/3.1B
Suitable Environment: Salt Water and Mild Acids
Thread Pitch: Fine Thread and Coarse Thread
Finish: Phosphating, HDG, Oxidation
Threads: UNJ, UNC, UNF, Rolled, UNR
Pull-Out Force: 5/16" (between 205 – 307 lbs)

To Know About Latest Price List of Lag Bolts Please Contact Us

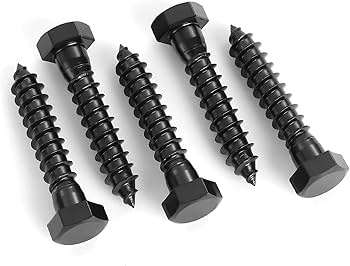

Fully Threaded Lag Bolts

Fully Threaded Lag Bolts

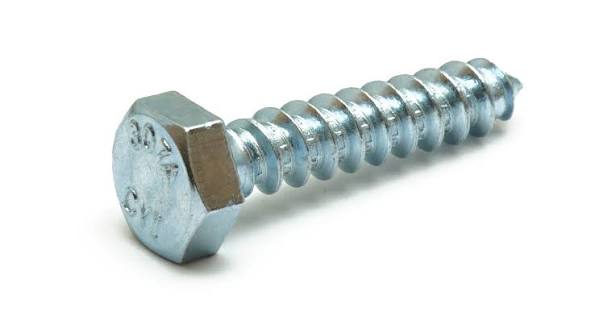

Lag Screw

Lag Screw

Flat Head Lag Bolts

Flat Head Lag Bolts

Table of Content

Lag Bolts Specification

Lag Bolt Size

  • M10 To M120

Sizes Can Be Manufacture

  • Up to 4"

Lag Bolt Diameters

  • 1/4" and 3/4"

Fully Threaded Lag Bolts Thread Pitch

  • Fine
  • Coarse

Manufacturing Methods

  • Cold Forging
  • CNC Machined
  • Hot Forging

Surface Finishes

  • Wrought Iron
  • Plain
  • Black oxide

Supplier of Square Head Lag Bolts in Various Sizes at Best Price in Mumbai

Lag Bolt Head Size Chart

Lag Bolts Manufacturer in India Who Offering Products in Custom Sizes

Diameter Head Size
1/4" 7/16"
5/16" 1/2"
3/8" 9/16"
1/2" 3/4"
5/8" 15/16"
3/4" 11/8"

Price List of Square Head Lag Bolts

Are You Looking for the Most Recent Lag Bolts Price List? To get an estimate right away Contact Us

Stockist of Hex Head Lag Screw in Zinc Plated, Xylan Coated and Oil Rubbed Bronze With MTC

Lag Bolt Weight Capacity

Lag Bolt Size 1/4 inch 5/16 inch 3/8 inch 1/2 inch 3/4 inch 5/8 inch
Lag Bolt Weight Capacity (Per inch of thread) Up to 100 pounds Up to 200 pounds Up to 272 pounds Up to 312 pounds Up to 322 pounds Up to 330 pounds

Refer to the Structural Lag Screws Threads Length and Torque Chart

Lag Screw Pre Drill Size Chart

Lag Bolt Size 1/4 lag bolts 5/16 lag bolts 3/8 lag bolts
Drill Size and Hole 3/32" 9/64" 11/64"

Standard for Heavy Duty Lag Bolts

Standard EN 14399-4 UNI 5712 ISO 7412 DIN 6914 ASME B18.2.3.7M ASME B18.2.1
Size M12 to M42 M4 to M80 M12 to M36 M4 to M100 M16 to M36 M4 To M120

Types of Nickel Fasteners

Buy Various Types From Lag Bolts Manufacturer in India

Self Drilling Lag Bolts

Self Drilling Lag Bolts

Square Head Lag Bolts

Square Head Lag Bolts

Tamper Proof Lag Bolts

Tamper Proof Lag Bolts

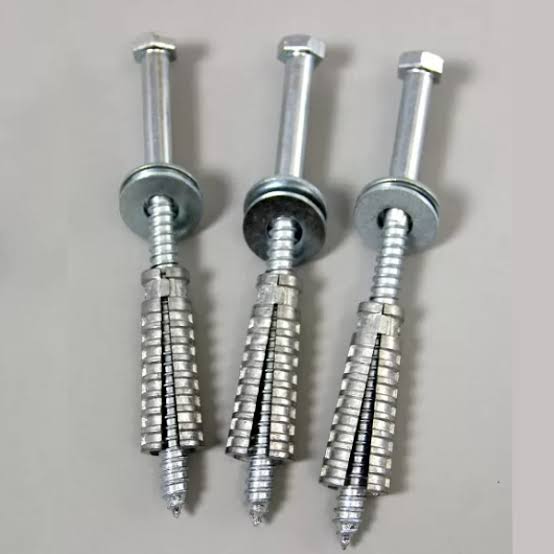

Tamper Resistant Lag Bolts

Tamper Resistant Lag Bolts

Heavy Duty Lag Bolts

Heavy Duty Lag Bolts

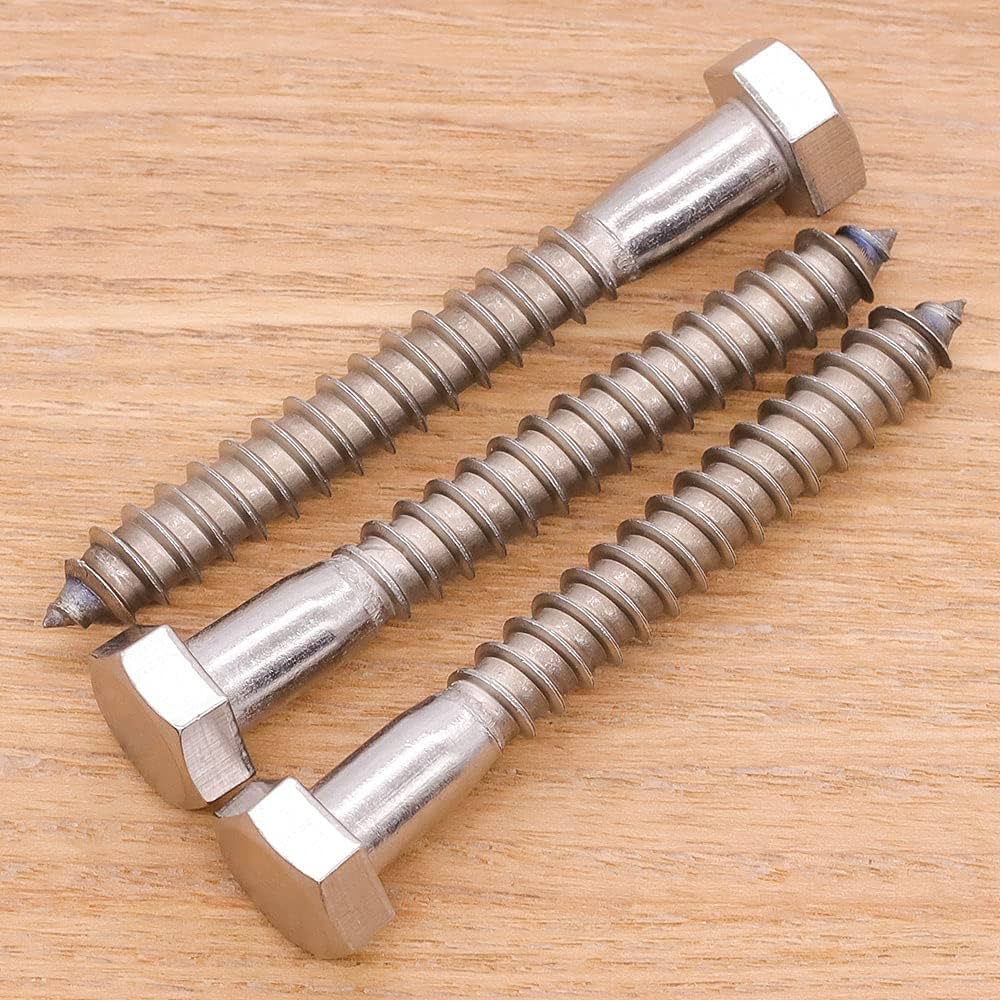

Socket Head Lag Bolts

Socket Head Lag Bolts

SS Lag Bolts Torque Chart

Lag Bolts Supplier in India who provides wide Stock along with suggested tightening torque values

Lag Bolt Diameter 3/8" 7/16" 1/2" 5/8" 3/4" 1" 1 1/8" 1 1/4"
Pilot Hole Diameter
(Thread Portion)		 15/64" 9/32" 5/16" 13/32" 1/2" 23/32" 53/64" 15/16"

Square Head Lag Bolts Tensile Strength

Steel 18-8 stainless steel
60,000 psi (minimum) 100,000 psi (minimum)

Lag Screws Tolerance on Length

Lag Bolts Supplier in India Offering Custom Tolerance at Lowest Price

Nominal Screw Size Over 1/2 1/2 and smaller
Nominal Screw Length Over 6 in +/- 0.25 +/- 0.25
Up to 6 in +/- 0.25 +/- 0.12
