Nylock Nuts

Home / Nylock Nuts
Stainless Steel Hex Bolts

Authorized Nylock Jam Nuts Manufacturer in India as Per ASME B 18.16.6

Nylock Nut Spotlight

Ready Stock: M2 To M64
Custom Sizes: Up to 2-1/2"
Locking Mechanism: Nylon Insert
International Standard: ASME B 18.16.6
Raw Material Origin: SA, Europe, New Zealand, Algeria, United Kingdom, Morocco, South Africa, Australia, India etc
MTC: EN 10204/3.1B
Suitable Environment: Salt Water and Mild Acids
Thread Pitch: Coarse Thread and Fine Thread
Finish: Oxidation, Phosphating, HDG
Threads: Rolled, UNJ, UNC, UNR, UNF
Temperature Range: -50°C to 300°C

To Know About Latest Price List of Nylock Nut Please Contact Us

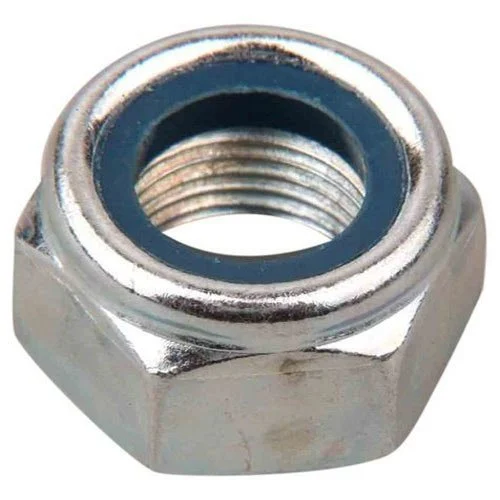

Nylock Jam Nuts

Nylock Jam Nuts

Nylock Lock Nut

Nylock Lock Nut

Nylock Hex Nut

Nylock Hex Nut

Table of Content

Find Nylock Nut Manufacturer in India who provides Metric Sizes as per Requirement

Nylock Nut Size

  • M2 To M64

Nylock Jam Nuts Metric Size

  • Size: Up to 2-1/2"

Also Known

  • Nylon Insert Locknuts

Nylock Lock Nut Thread Pitch

  • Coarse
  • Fine

Nylock Hex Nut Manufacturing Methods

  • Hot Forging
  • Cold Forging
  • CNC Machined

Nylock Rivet Nut Packaging Method

  • Wooden Pallet
  • Carton Box
  • Wooden Cases

Nylock Weld Nut Surface Finish

  • Phosphating, Zinc impregnation
  • Plain, Electric galvanized
  • Oxidation, DACROMET

Thin Nylock Nuts Machines

  • Making Machines
  • CNC Lath
  • Thread Rolling

Nylock Acorn Nut Testing

  • 100% Tested Nylock Nut with MTC EN 10204 3.1/3.2

Supplier of Stainless Steel Nylock Nut With Different Dimension in DIN 985 and DIN 6926 Standards

Nylock Hex Nut Dimensions

Check Nylock Nut Supplier in India who provides Accurate Dimensions

Nominal Size Width Across Flats Wrenching Height (I) Thickness (H)
– Min-Max Min Min-Max
M6 9.78 – 4 5.7 – 6
M3 5.32 – 2.4 3.7 – 4
M4 6.78 – 2.9 4.7 – 5
M8 12.73 – 5.5 7.64 – 8
M5 7.78 – 3.2 4.7 – 5
M10 16.73 – 6.5 9.64 – 10
M7 10.73 – 4.7 7.14 – 7.5
M14 21.67 – 9.5 13.3 – 14
M12 18.67 – 8 11.57 – 12
M18 26.16 – 13 17.66 – 18
M16 23.67 – 10.5 15.3 – 16

Exporter of Corrosion Tested Nylock Lock Nut in M2 To M48 Sizes Range at Low Cost in Mumbai

Price List of Nylock Nut

To Know About Nylock Nut Price Per Kg in India Please Contact Us Nylock Nut Price List

High Tensile Nyloc Nuts Size Chart

Size of Nylon Lock Nut Width Across Flats in Inch Height in Inch
3/8 0.563 0.468
1/4 0.439 0.328
5/16 0.502 0.359
9/16 0.877 0.656
7/16 0.627 0.468
1/2 0.752 0.609
3/4 1.064 0.890
5/8 0.940 0.765
1 1.44 1.078
7/8 1.252 0.999

Purchase Nylock Hex Nut in Galvanized, Aluminum and Mild Steel Materials, Also Check Weight Chart

DIN 985 Nylon Lock Nut Materials and Grades

Discover Nylock Nut Manufacturer in India supplying Following Grades with Different Materials

Material Grade
Aluminum Nylock Nuts Grade 12.9
Stainless Steel Nylock Nut ASTM A4-70/80
Galvanized Nylock Nut Grade 8.8
Brass Nylock Nuts Grade 10.9
Mild Steel Nylock Nut Grade 2 and 5

Nylock Style Nuts Weight Chart

M48 M22 M45 M24 M27 M42 M30 M39 M36 M33
998 75 771 100 162 628 212 499 415 317
M20 M4 M18 M5 M6 M16 M8 M14 M12 M10
65 1.0 45 1.4 2.4 34 5.1 26 17.2 10.6

Types of Nylock Nut

Purchase Bulk Stock of Nuts from Nylock Nut Supplier in India at Best Price

High Tensile Nyloc Nuts

High Tensile Nyloc Nuts

Nyloc Dome Nut

Nyloc Dome Nut

Nyloc Half Nut

Nyloc Half Nut

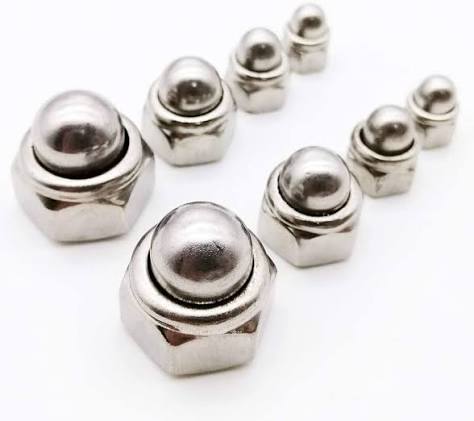

Nylock Acorn Nut

Nylock Acorn Nut

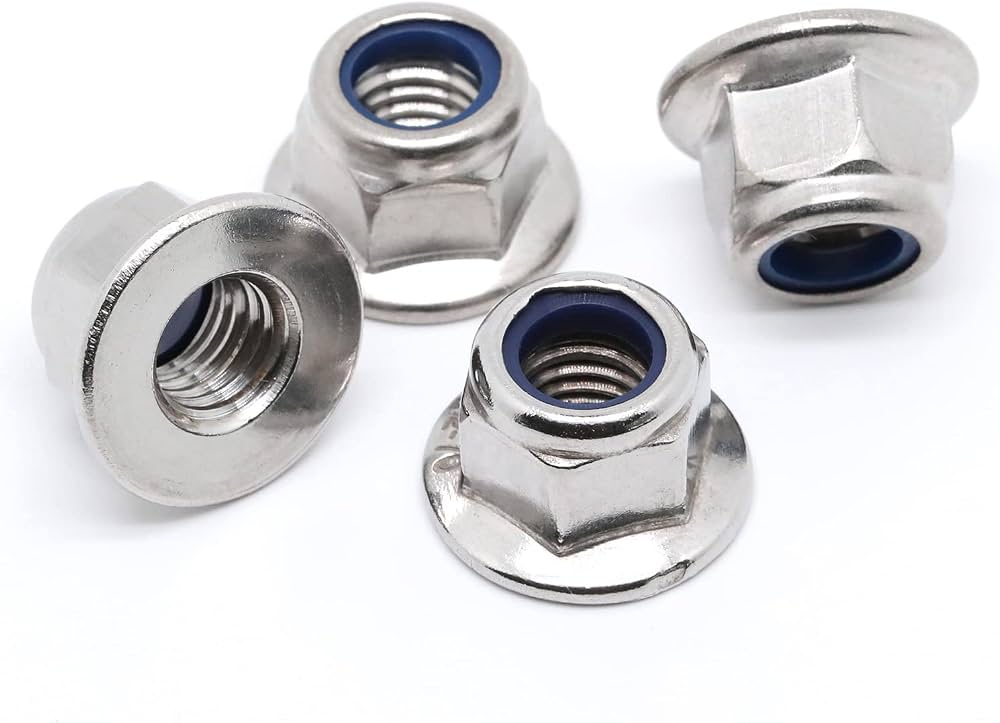

DIN 6926 Nylon Flange Nutt

DIN 6926 Nylon Flange Nutt

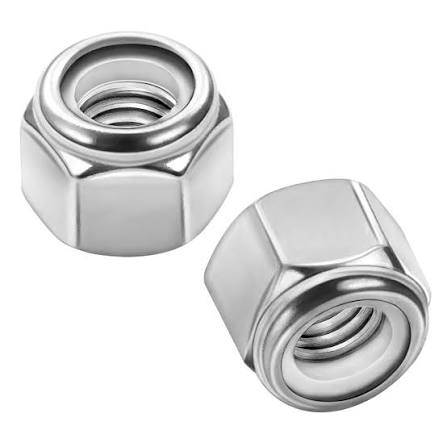

Nylon Insert Hex Lock Nuts

Nylon Insert Hex Lock Nuts

Nylon Insert Hex Lock Nuts Torque Chart

Size of Locknut Threads per inch Clamp Load Tightening Torque min- max (ft-lbs.)
1/4 20 2864 lbs 8 – 12
7/16 14 9568 lbs 45 – 59
5/16 18 4719 lbs 16 – 21
1/2 13 12771 lbs 69 – 90
3/8 16 6974 lbs 28 – 37
3/4 10 30101 lbs 245 – 320
9/16 12 16375 lbs 100 – 130
7/8 9 41556 lbs 394 – 515
5/8 11 20340 lbs 138 – 180
11/8 7 68695 lbs 837 – 1095
1 8 54517 lbs 591 – 772
11/4 7 87220 lbs 1181 – 1545

Nylock Jam Nuts Testing Equipment

  • Coordinate Measuring Machine
  • Smooth plug gauge
  • Image measuring instrument
  • Routine inspection of calipers
  • Micrometer
  • Thread gauge
  • Roughness tester
