Self Tapping Screws

Home / Self Tapping Screws
Stainless Steel Hex Bolts

Trusted Stainless Steel Self Drilling Screw Manufacturer in India

Self Tapping Screws Product Abstract

Ready Stock: M2 to M40
Custom Sizes: Up to 3 1/2"
Diameter: 4.8mm to 8.0mm
International Standard: DIN 970, DIN 933, DIN 931, ASME B18 2.2 and ASME B18 2.1
American Standard: ANSI B18.6.4
Raw Material Origin: Algeria, United Kingdom, Morocco, SA, Europe, New Zealand, South Africa, New Zealand, Australia India etc
MTC: EN 10204/3.1B
Suitable Environment: Salt Water and Mild Acids
Thread Pitch: Fine Thread and Coarse Thread
Finish: Phosphating, HDG, Oxidation
Threads: UNJ, UNC, UNF, Rolled, UNR
Temperature Range: -20°C to +150°C.

To Know About Latest Price List of Self Tapping Screws Please Contact Us

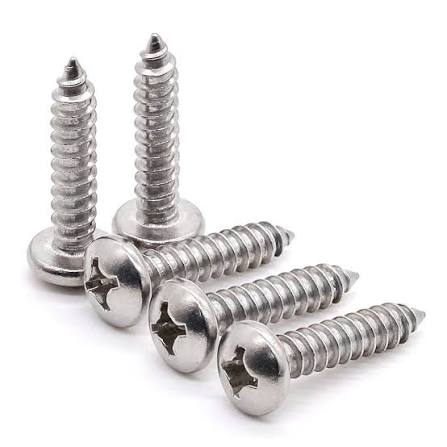

Self Tapping Pan Head Metal Screws

Self Tapping Pan Head Metal Screws

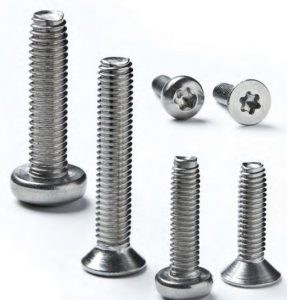

Thread Forming Screws

Thread Forming Screws

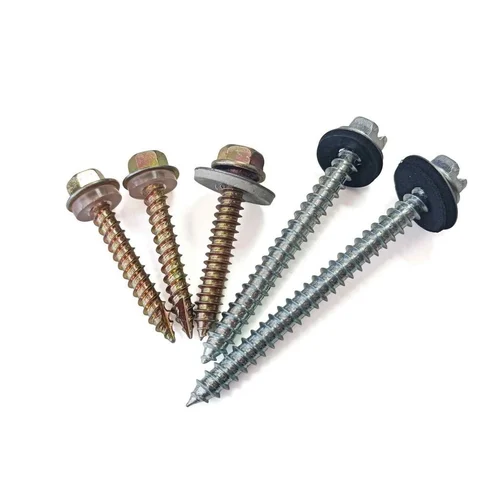

Hex Head Self Tapping Screws

Hex Head Self Tapping Screws

Table of Content

Supplier of Heavy Duty Self Tapping Screws With Custom Sizes at Best Price in Mumbai

Self Drilling Screw Size Chart

Self Tapping Screws Manufacturer in India Who Deliver Various Types

Screw Size Decimal Closest Fraction
#1 0.073" 5/64"
#2 0.086" 3/32"
#3 0.099" 7/64"
#4 0.112" 7/64"
#5 0.125" 1/8"
#6 0.138" 9/64"
#7 0.151" 5/32"
#8 0.164" 5/32"
#9 0.177" 11/64"
#10 0.190" 3/16"

Price List of Self Tapping Pan Head Metal Screws

To Know About Self Tapping Screws Price Per Kg in India Please Contact Us Self Tapping Screws Price List

Exporter of Thread Forming Screws for Drill Wooden Materials With MTC

Types of Self Tapping Screws

Buy Various Types From Self Tapping Screws Supplier in India

Self Tapping Wood Screw

Self Tapping Wood Screw

Zinc Plated Self Drilling Screws

Zinc Plated Self Drilling Screws

Self Drilling Security Screws

Self Drilling Security Screws

Hexagon Head Self Drilling Screws

Hexagon Head Self Drilling Screws

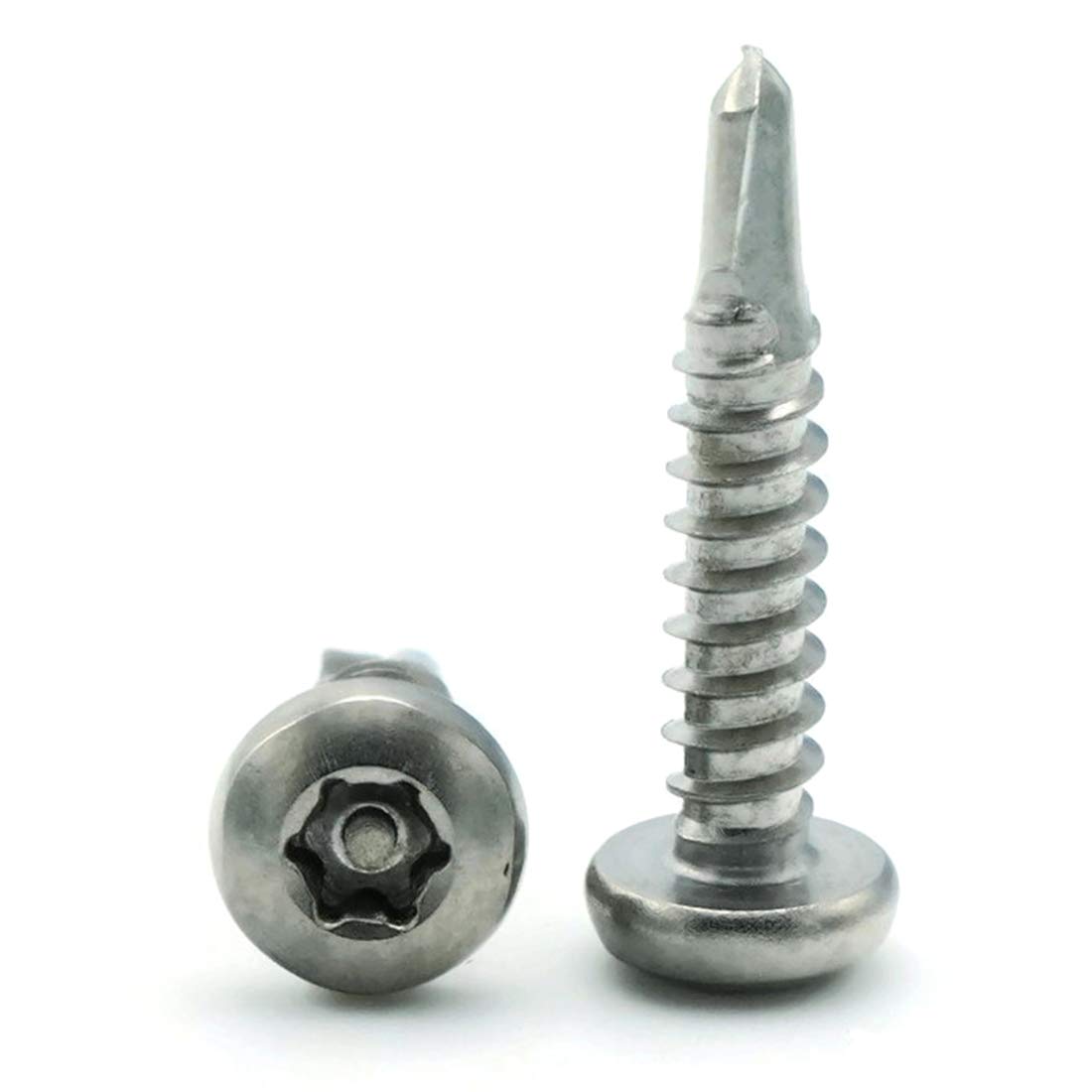

Tamper Proof Self Drilling Screws

Tamper Proof Self Drilling Screws

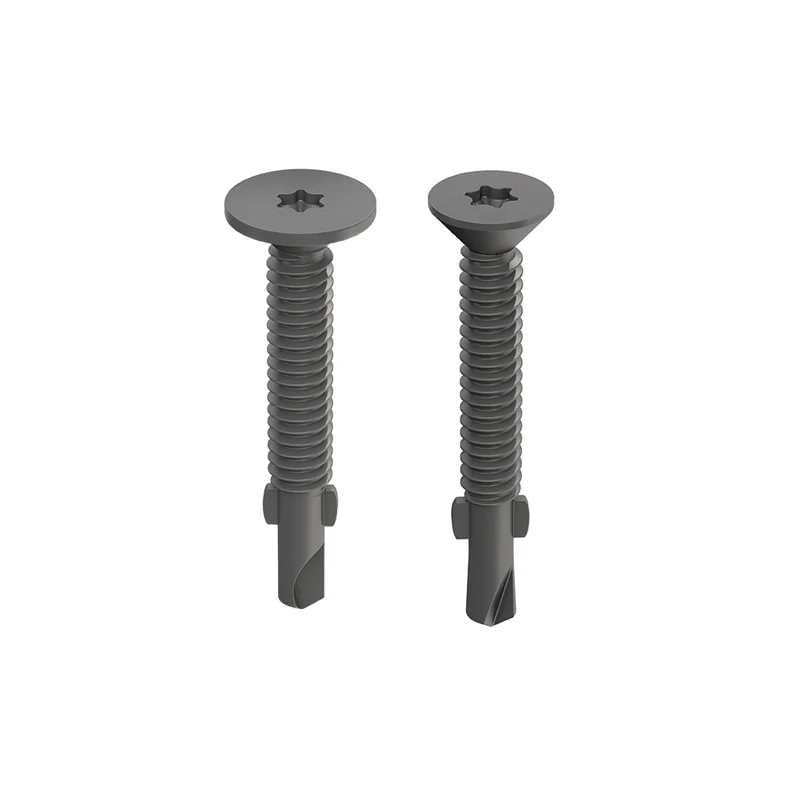

Wood To Metal Self Drilling Screws

Wood To Metal Self Drilling Screws

Self Tapping Screw Gauge Size Chart

Self Tapping Screws Supplier in India Who Offer Prodcts in Various Sizes.

Thread Gauge Diameter No. 2 No. 4 No. 6 No. 7 No. 8 No. 10 No. 12 No. 14 No. 18
Thread Pitch 0.79 mm 1.06 mm 1.27 mm 1.34 mm 1.41 mm 1.59 mm 1.81 mm 1.81 mm 2.12 mm
Threads per Inch (TPI) 32 24 20 19 18 16 14 14 12
Thread Diameter 2.20 mm 2.90 mm 3.50 mm 3.90 mm 4.20 mm 4.80 mm 5.50 mm 6.30 mm 8.00 mm

Thread Forming Screws Tensile Strength

Screw Type Type A Type AB and B Type AB
Diameter 0.235" to 0.246" 0.237" to 0.246" 0.280" to 0.290"
Carbon Steel Self Drilling Screw Tensile 3,150 Lbs 3,850 Lbs 5,890 Lbs
SS 304 Self Drilling Screw Tensile 2,925 Lbs 3,700 Lbs 5,200 Lbs

Drilling Capacity of Heavy Duty Self Tapping Screws

Diameter & Thread Pitch Drilling Capacity
Point Size Min-Max.
10-24 & #5 0.125 to 0.250
12-24 & #4 0.145 to 0.312
12-24 & #5 0.250 to 0.500
1/4-20 & #4 0.250 to 0.312
1/4-20 & #5 0.250 to 0.500
