Shoulder Bolts

Home / Shoulder Bolts
Stainless Steel Hex Bolts

Authorized Shoulder Screw Manufacturer in India

Shoulder Bolts Capabilities

Ready Stock: M2 to M80
Custom Sizes: Up to 4"
Length: 3mm to 200mm
International Standard: ASME B18 2.2 and ASME B18 2.1, DIN 970, DIN 933, DIN 931
Shoulder Bolt Thread Sizes : 1/8", #4-40, 3/32", 1/4", 1/8", 5/64"
Raw Material Origin: Morocco, South Africa, New Zealand, SA, Europe, New Zealand, Algeria, United Kingdom, Australia India etc
MTC: EN 10204/3.1B
Suitable Environment: Salt Water and Mild Acids
Thread Pitch: Fine Thread and Coarse Thread
Finish: Phosphating, HDG, Oxidation
Threads: UNJ, UNC, UNF, Rolled, UNR
Temperature Range: -320°F (-196°C) to 2200°F (1200°C+)
To Know About Latest Price List of Shoulder Bolts Please Contact Us

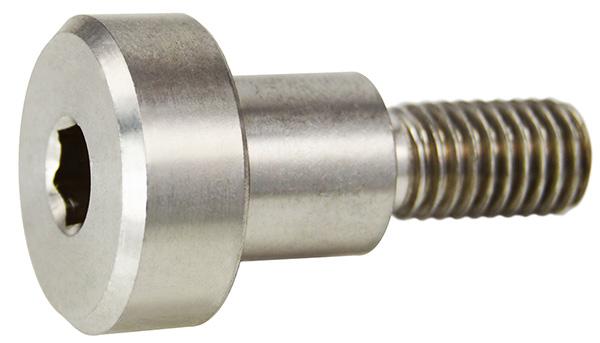

Custom Shoulder Bolts

Custom Shoulder Bolts

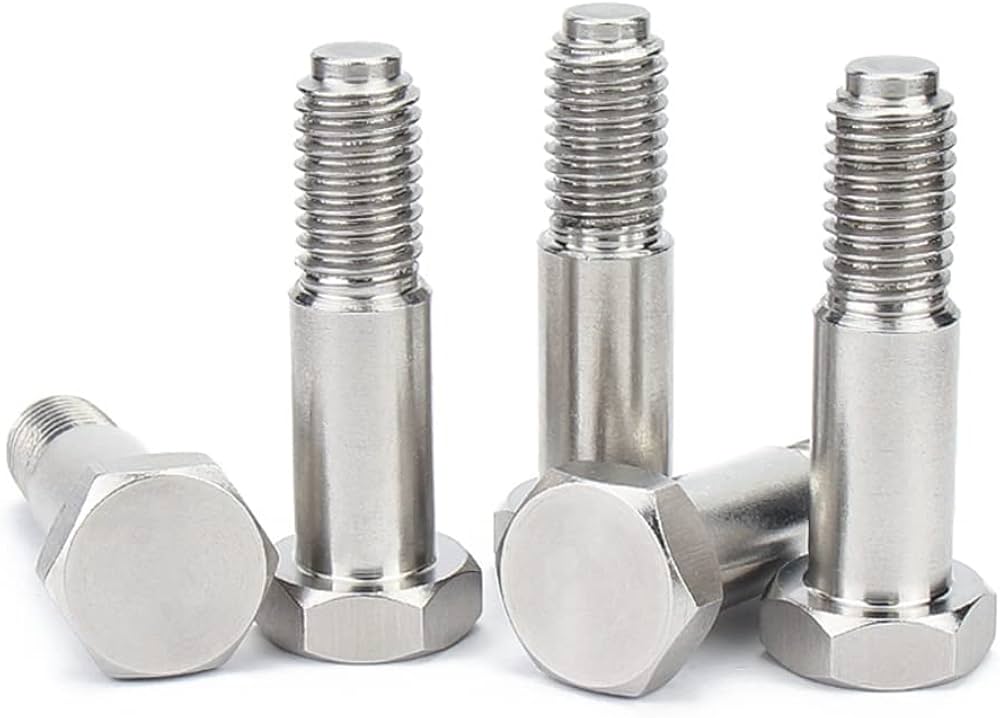

Double Shoulder Bolt

Double Shoulder Bolt

Flat Head Shoulder Bolt

Flat Head Shoulder Bolt

Table of Content

Shoulder Bolts Specification

Shoulder Bolts Manufacturer in India Who Offers Technical Specification

Shoulder Bolts Size

  • M1.2 To M120

Sizes Can Be Manufacture

  • Up to 4"
=

Lifting Shoulder Eye Bolt Hardness

  • RC 32 (minimum)

Fine Thread Shoulder Bolts Thread Pitch

  • Fine
  • Coarse

Long Shoulder Bolts Manufacturing Methods

  • Cold Forging
  • CNC Machined
  • Hot Forging

Lifting Shoulder Eye Bolt Testing

  • Microstructure Testing
  • Stress Rupture Testing
  • Proof Load Test

Fine Thread Shoulder Bolts Surface Finish

  • Plain
  • Black oxide
  • Passivated

Shoulder Bolt Packaging

  • Wooden Pallet
  • Wooden Cases
  • Carton Box

Shoulder Bolt Testing

  • 100% Tested Slotted Shoulder Screw with MTC EN 10204 3.1/3.2

Supplier of Flat Head Shoulder Bolt With Different Tolerance at Best Price in Mumbai

Price List of Shoulder Bolt

To Know About Shoulder Bolt Price Per Kg in India Please Contact Us Shoulder Bolt Price List

Flat Head Shoulder Bolt Tolerances

Shoulder Bolts Manufacturer in India Offering Custom Tolerance at Lowest Price

Shoulder Diameter and Length 1/2 x 1-5/16 1/2 x 1-3/8 1/2 x 1-7/16 1/2 x 1-1/2 1/2 x 1-9/16 1/2 x 1-5/8 1/2 x 1-3/4 1/2 x 1-7/8 1/2
Shoulder Length and Diameter Tolerance ±0.005
x
-0.004
in to
+0.0 in		 ±0.005
x
-0.004
in to
+0.0 in		 ±0.005
x
-0.004
in to
+0.0 in		 ±0.005
x
-0.004
in to
+0.0 in		 ±0.005
x
-0.004
in to
+0.0 in		 ±0.005
x
-0.004
in to
+0.0 in		 ±0.005
x
-0.004
in to
+0.0 in		 ±0.005
x
-0.004
in to
+0.0 in		 ±0.005
x
-0.004
in to
+0.0 in
Thread and Length 3/8"-16
x 3/4		 3/8"-16
x 3/4		 3/8"-16
x 3/4		 3/8"-16
x 3/4		 3/8"-16
x 3/4		 3/8"-16
x 3/4		 3/8"-16
x 3/4		 3/8"-16
x 3/4		 3/8"-16
x 3/4

Exporter of Lifting Shoulder Eye Bolt Available in Hex and Flat Head as Per DIN 7379 Standard

Types of Shoulder Bolts

Shoulder Bolts Supplier in India Who Provides Various Types

Long Shoulder Bolts

Long Shoulder Bolts

Lifting Shoulder Eye Bolt

Lifting Shoulder Eye Bolt

Socket Head Shoulder Bolt

Socket Head Shoulder Bolt

Fine Thread Shoulder Bolts

Fine Thread Shoulder Bolts

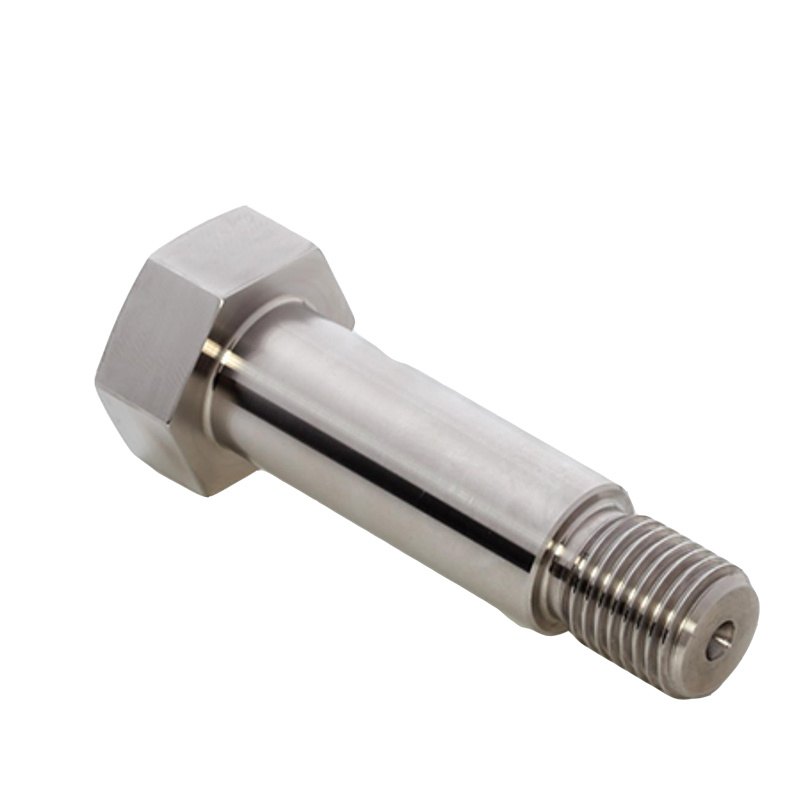

Metric Hex Head Shoulder Bolts

Metric Hex Head Shoulder Bolts

Double Ended Shoulder Bolt

Double Ended Shoulder Bolt

Drive Type of Metric Hex Head Shoulder Bolts

  • Socket Hex
  • Slotted Socket
  • 6-Lobe Socket

Refer to the Hex Head Shoulder Screw Shear Strength Chart

Head Shoulder Bolt Shear Strength

Shoulder Bolts Supplier in India Offering High Strength Product

Size Of Thread 10-24 1/4-20 5/16-18 3/8-16 1/2-13 5/8-11 3/4-10
Diameter Of Shoulder 1/4 5/16 3/8 1/2 5/8 3/4 1
Shear Strength Pounds (Min.) 1250 2340 3970 5985 11140 17800 26800

Shoulder Bolts Dimensions

Shoulder Diameter (A) Thread (C) Thread Length (D) Head Diameter (E) Head Height (F) Allen Wrench Size
1/8 4-40 3/32 1/4 1/8 5/64
3/16 8-32 3/16 5/16 5/32 3/32
1/4 10-24 3/8 3/8 3/16 1/8
5/16 1/4-20 7/16 7/16 7/32 5/32
3/8 5/16-18 1/2 9/16 1/4 3/16
1/2 3/8-16 5/8 3/4 5/16 1/4
5/8 1/2-13 3/4 7/8 3/8 5/16
3/4 5/8-11 7/8 1 1/2 3/8
1 3/4-10 1 1-5/16 5/8 1/2
1-1/4 7/8-9 1-1/8 1-3/4 3/4 5/8
