Stainless Steel Button Socket Head Bolt Manufacturer in India
Socket Head Bolts Features
| Ready Stock: |
M4 To M100 |
| Custom Sizes: |
Up to 4" |
| International Standard: |
ASME B18.2.1, ISO 7412, DIN-EN 14399-4 |
| Raw Material Origin: |
New Zealand, SA, Europe, India, Australia, Algeria, South Africa, United Kingdom, Morocco
etc |
| MTC: |
EN 10204/3.1B |
| Also Known: |
Allen Head Screws |
| Thread Pitch: |
Coarse Thread and Fine Thread |
| Surface: |
Oxidation, HDG, Phosphating |
| Threads: |
UNC, UNJ, UNF, UNR, Rolled |
| Temperature Range: |
-50°C to 300°C |
To Know About Latest Price List of Socket Head Bolts Please Contact Us
Socket Head Bolts Specification
Button Socket Head Bolt Manufacturing Standard
- DIN 7984, ISO 4762, DIN 912
Flat Head Socket Bolt Thread Pitch
Button Head Hex Socket Cap Screw Manufacturing Methods
- CNC Machined
- Cold Forging
- Hot Forging
Square Socket Head Bolt Packaging
- Wooden Cases
- Wooden Pallet
- Carton Box
DIN 912 Socket Head Cap Screw Surface Finish
- Phosphating, Zinc impregnation
- Plain, Electric galvanized
- Oxidation, DACROMET
Socket Head Bolt Machines
- CNC Lath
- Making Machines
- Thread Rolling
Hexagon Socket Head Cap Bolt Testing
- 100% Tested Socket Head Bolts with MTC EN 10204 3.1/3.2
IBR Approved Supplier of Flat Socket Head Bolt in Various Dimension at Best Price in Mumbai
Socket Cap Screw Dimensions as per ASME B18.3
| Thread Size |
T.P.I UNF |
T.P.I UNC |
Head Height (Max) H |
Head Diameter (Max) A |
Key Size J |
Key Engagement (Min) T |
Thread Length (Max) |
Thread Length (Min) |
| 0 |
80 |
|
0.060 |
0.096 |
0.050 |
0.025 |
0.62 |
0.50 |
| 3 |
56 |
48 |
0.099 |
0.161 |
5/64 |
0.044 |
0.83 |
0.62 |
| 1 |
72 |
64 |
0.073 |
0.118 |
1/16 |
0.031 |
0.77 |
0.62 |
| 2 |
64 |
56 |
0.086 |
0.140 |
5/64 |
0.038 |
0.80 |
0.62 |
| 5 |
44 |
40 |
0.125 |
0.205 |
3/32 |
0.057 |
1.00 |
0.75 |
| 4 |
48 |
40 |
0.112 |
0.183 |
3/32 |
0.051 |
0.99 |
0.75 |
| 6 |
40 |
32 |
0.138 |
0.226 |
7/64 |
0.064 |
1.05 |
0.75 |
| 10 |
32 |
24 |
0.190 |
0.312 |
5/32 |
0.090 |
1.27 |
0.88 |
| 8 |
36 |
32 |
0.164 |
0.270 |
9/64 |
0.077 |
1.19 |
0.88 |
| 1/4 |
28 |
20 |
0.250 |
0.375 |
3/16 |
0.120 |
1.50 |
1.00 |
| 3/8 |
24 |
16 |
0.375 |
0.562 |
5/16 |
0.182 |
1.94 |
1.25 |
Price List of Socket Head
Bolts
Stockist of Corrosion Resistance Hex Socket Head Cap Bolt for Mining Equipment as per DIN 912/ ISO
4762
Flanged Button Socket Head
Bolt Standards
Check Socket Head Bolts Manufacturer in India offering Best Products as per DIN 912, ANSI B18.3
Standards
|
ASME B18.2.1 |
ASME B18.2.3.7M |
|
BS 1769 |
DIN 6914 |
|
ASME B18.2.3.6M |
ISO 7412 |
|
UNI 5712 |
DIN-EN 14399-4 |
Exporter of Square Socket Head Bolt With Proof Load and PMI Testing
DIN 912 Socket Head Cap
Screw Testing Methods
Discover Socket Head Bolts Manufacturer in India providing testing Methods like PMI, Tensile etc..
-
Hardness Testing
-
Proof Load Testing
-
Tensile Test
-
PMI Testing
Refer to the Pan Head Socket Screw Torque and Weight Chart

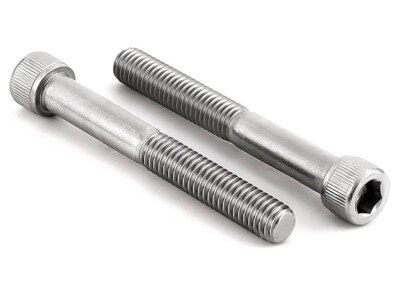

Square Head Socket Bolt Torque Chart
| Size |
Grade 12.9 Socket Head Cap |
Grade 12.9 Button Head Cap |
Grade 12.9 Flat Head Cap |
| M10 |
81.0 Nm |
52 Nm |
52 Nm |
| M4 |
4.83 Nm |
3.10 Nm |
3.10 Nm |
| M6 |
16.8 Nm |
10.5 Nm |
10.50 Nm |
| M12 |
142 Nm |
90 Nm |
90 Nm |
| M8 |
41.0 Nm |
26 Nm |
26 Nm |
| M14 |
226 Nm |
- |
143 Nm |
| M18 |
485 Nm |
- |
- |
| M16 |
350 Nm |
225 Nm |
225 Nm |
| M20 |
685 Nm |
- |
440 Nm |

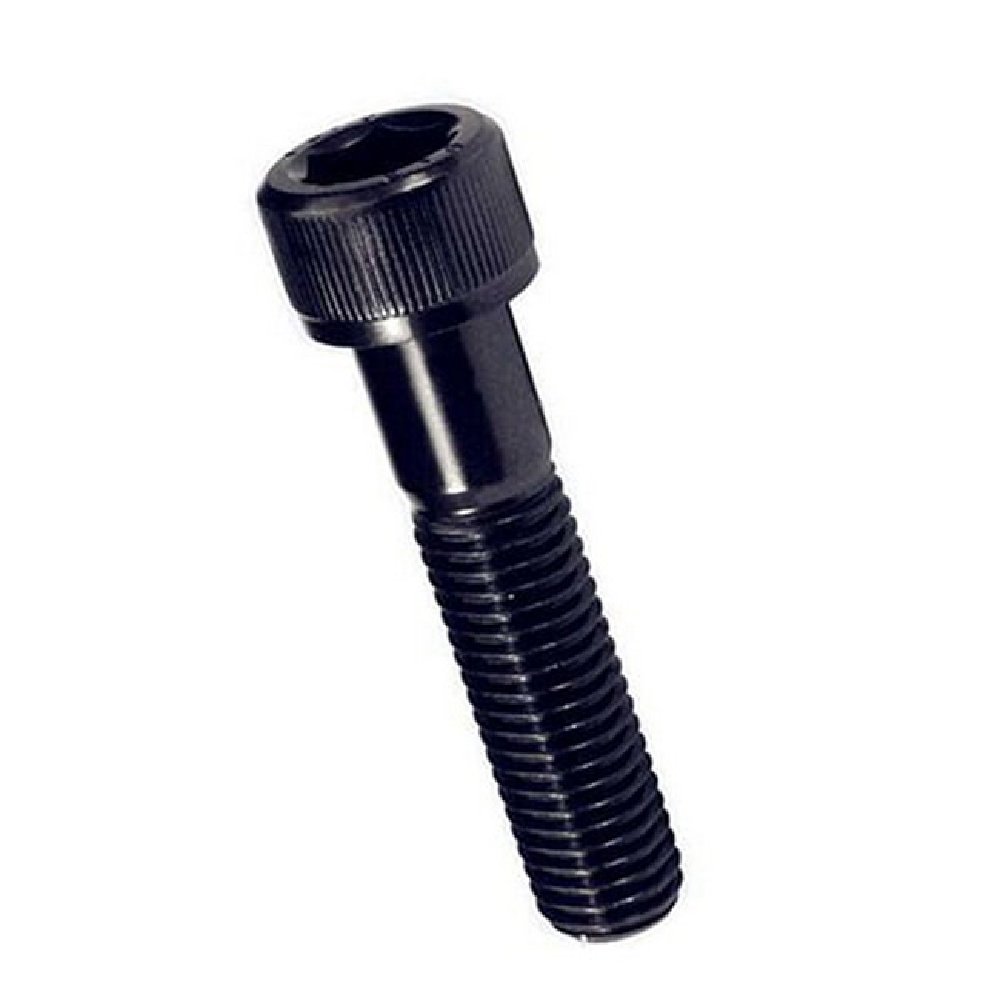

Allen Head Screws Weight Chart
| Diameter |
M8 |
M5 |
M12 |
M6 |
M16 |
M10 |
| Length |
|
|
|
|
|
|
| 3 |
- |
- |
- |
- |
- |
- |
| 140 |
- |
- |
- |
- |
250 |
- |
| 4 |
- |
- |
- |
- |
- |
- |
| 80 |
37.0 |
- |
80.2 |
- |
154 |
58.5 |
| 5 |
- |
- |
- |
- |
- |
- |
| 6 |
- |
- |
- |
- |
- |
- |
| 100 |
- |
- |
98.0 |
- |
186 |
71.2 |
| 8 |
- |
2.5 |
- |
- |
- |
- |
| 10 |
- |
2.7 |
- |
4.7 |
- |
- |
| 160 |
- |
- |
- |
- |
282 |
- |
| 12 |
10.9 |
3.0 |
- |
5.1 |
- |
- |
| 30 |
16.9 |
5.6 |
39.3 |
8.3 |
77.8 |
27.9 |
| 16 |
12.1 |
3.5 |
- |
5.8 |
- |
20.9 |
| 20 |
13.4 |
4.0 |
32.1 |
6.5 |
- |
22.9 |
| 25 |
15.0 |
4.8 |
35.7 |
7.6 |
71.3 |
25.4 |
| 40 |
20.9 |
7.1 |
46.5 |
11.0 |
91 |
32.9 |
| 120 |
- |
- |
116.0 |
- |
218 |
- |
| 50 |
24.9 |
8.6 |
54.5 |
13.2 |
106 |
39.3 |
| 60 |
28.9 |
- |
63.4 |
15.4 |
122 |
45.7 |
Types of Socket Head Bolts
Buy Bulk Stock of Bolts and Screws from Socket Head Bolts Supplier in India at Factory Price
Tapered Socket Head Cap Screw
Flanged Socket Head Cap Screw

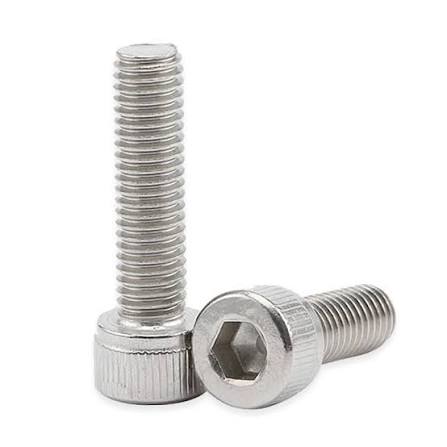

Fully Threaded Socket Head Cap Screws
Socket Head Cap Screw Proof Load
| Sizes |
Proof Load (Pounds Minimum) |
Tensile Load (Pounds Minimum) |
| - |
UNRC |
UNRC |
| M6 |
0.4D |
865 |
| M2 |
0.4D |
350 |
| M8 |
0.4D |
1,330 |
| M4 |
0.4D |
575 |
| M10 |
0.4D |
1,600 |
Pan Head Socket Screw
Shear Strength
|
Size of Socket Cap Screw |
Shear Strength (Minimum) |
|
M10 |
3,060 Lbs |
| M8
|
2,280 Lbs |
| M6
|
1,615 Lbs |
| M5
|
1,325 Lbs |
| M4
|
1,060 Lbs |
| M3
|
830 Lbs |
| M2
|
625 Lbs |
| M1
|
450 Lbs |
Zinc Plated Socket Head
Cap Screws Applications
-
Engineering Devices
-
Mining Equipment
-
Aerospace
-
Automotive
-
Robotics
-
Electronics
