Most Trusted Mild Steel U Bolts Manufacturer in
India
U Bolt Features
| Ready Stock |
M6 to M20 |
| International Standard |
BS 3974, DIN 3570 |
| Raw Material Origin |
SA, Europe, Algeria, United Kingdom, Morocco,
South Africa, New Zealand, Australia, India
etc. |
| MTC |
EN 10204/3.1B |
| Suitable Environment |
Salt Water and Mild Acids |
| Thread Pitch |
Fine Thread and Coarse Thread |
| Finish |
Phosphating, HDG, Oxidation |
| Threads |
UNJ, UNC, UNF, Rolled, UNR |
| Temperature Range |
-70°C to +300°C |
|
To Know About Latest Price List of U Bolts
Please
Contact Us
|
Arrow Piping Solutions is a trusted manufacturer and
supplier of U Bolts in India,
offering metric and imperial sizes with premium quality
finishes, manufacturing
standards and inspection certificates for industrial
applications.

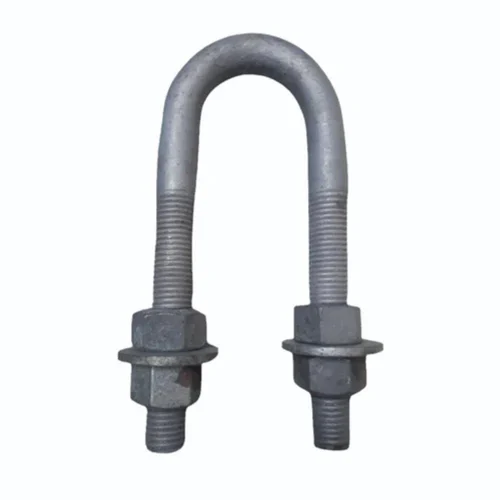

High Strength U Bolts Size
Long Tangent U Bolts Thread Pitch
Rubber Coated U Bolts Manufacturing Methods
- Cold Forging
- Hot Forging
- CNC Machined

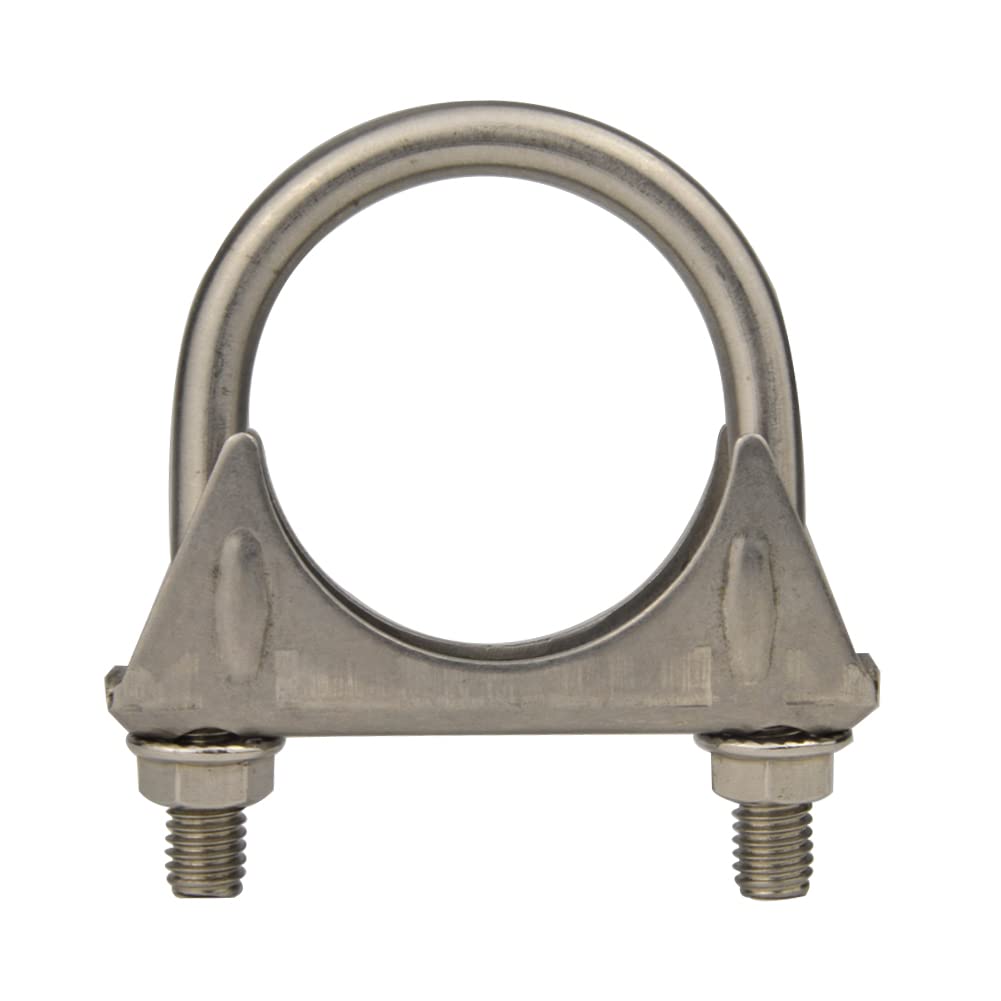

Exhaust U Bolt Packaging
- Carton Box
- Wooden Pallet
- Wooden Cases
Large Square U Bolts Surface Finish
- Phosphating
- Zinc Impregnation
- Plain
- Electric Galvanized
- Oxidation
- DACROMET
BS 3974 U Bolt Certificates
- 100% Radiography Test Report
- Raw Material Certificate
- EN 10204/3.1B
- Third Party Inspection
DIN 3570 U Bolt Testing
- 100% Tested U Bolt
- MTC EN 10204 3.1/3.2

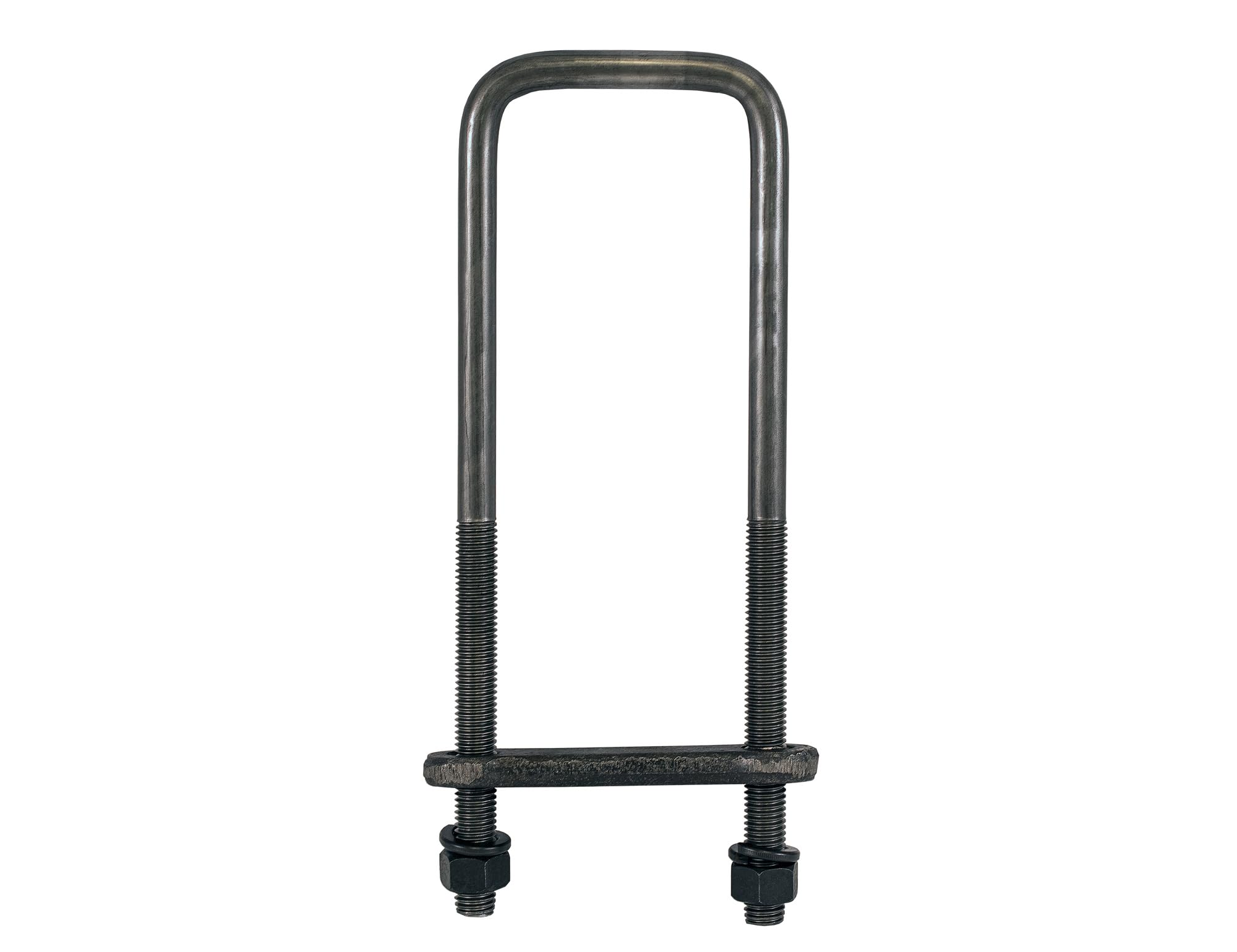

Supplier of Square Bend U Bolts as Per DIN 3570 and BS
3974 For Anchoring Structural Beams
High Strength U Bolts Applications
-
Bridge Rail
-
DIY Projects
-
Framing Fasteners
-
Conduit Support
-
Industrial and Commercial
-
Construction
-
Automotive
-
Piping Support
Check Ready Stock Of High Strength U Bolts With BSF,
BSW, UNF, UNC Thread
Square Bend U Bolts Threads
Find U Bolt Supplier in India who provides various
Threads
|
Threads
|
Description
|
| UNC |
Unified National Coarse
|
| UNF |
Unified National Fine
|
| BSW |
British Standard Whitworth
|
| BSF |
British Standard Fine
|
Stockist of Stainless Steel U Bolts in M6 to M20 Size
Range at Low Cost in Mumbai
Price List of U Bolt
DIN 3570 U Bolt Size Chart
| Pipe Size |
Diameter |
Thread Length |
Hook |
| 1/2 |
1/4 |
2 3/8 |
15/16 |
| 1 |
1/4 |
2 3/8 |
1 3/8 |
| 3/4 |
1/4 |
2 3/8 |
1 1/8 |
| 2 |
3/8 |
2 1/2 |
2 7/16 |
| 1 1/2 |
3/8 |
2 1/2 |
2 |
| 2 1/2 |
1/2 |
3 |
2 15/16 |
| 3 |
1/2 |
3 |
3 9/16 |
| 6 |
5/8 |
3 3/4 |
6 3/4 |
| 4 |
1/2 |
3 |
4 9/16 |
| 8 |
5/8 |
3 3/4 |
8 3/4 |
| 12 |
7/8 |
4 1/4 |
12 7/8 |
| 10 |
3/4 |
4 |
10 7/8 |
| 14 |
7/8 |
4 1/4 |
14 1/8 |
| 18 |
1 |
4 3/4 |
18 1/8 |
| 16 |
7/8 |
4 1/4 |
16 1/8 |
Refer to the Round U Bolts Torque Specs, Load Capacity and Weight Chart
Metric U Bolts Torque Chart
|
Grade 8
|
| Sizes |
Torque
(Max.) |
| 5/8 – 18 |
132 ft. lbs |
| 3/4 – 16 |
234 ft. lbs |
| 7/8 – 14 |
375 ft. lbs |
| 1-1/4 – 12 |
1163 ft. lbs |
| 1 – 14 |
758 ft. lbs |
| 1-1/8 – 12 |
848 ft. lbs |
BS 3974 U Bolt Weight Chart
|
Diameter × Width
|
Weight per Piece
|
| 3/8" × 2" |
0.40 |
| 5/8" × 4-1/8" |
1.50 |
| 3/8" × 2-1/2" |
0.45 |
| 1/2" × 2" |
0.65 |
| 3/8" × 3-1/2" |
0.50 |
| 1/2" × 3-5/8" |
0.80 |
| 1/2" × 3" |
0.70 |
| 5/8" × 3" |
1.45 |
| 1/2" × 4-5/8" |
0.90 |
| 5/8" × 4-5/8" |
1.60 |
Galvanized U Bolts Load Capacity
|
Pipe size |
Maximum normal load 750° F |
Maximum normal load 650° F |
|
½" |
454
lbs |
580
lbs |
|
1 |
454
lbs |
580
lbs |
|
¾ |
454
lbs |
580
lbs |
|
1½ |
1,144 lbs |
1,460 lbs |
|
1¼ |
1,144 lbs |
1,460 lbs |
|
2½ |
2,114 lbs |
2,700 lbs |
|
2 |
1,144 lbs |
1,460 lbs |
|
3½ |
2,114 lbs |
2,700 lbs |
|
3 |
2,114 lbs |
2,700 lbs |
Types of U Bolt
Buy from U Bolt Manufacturer in India who supplies best Products with Fastest Delivery
U Bolts For Boat Trailers

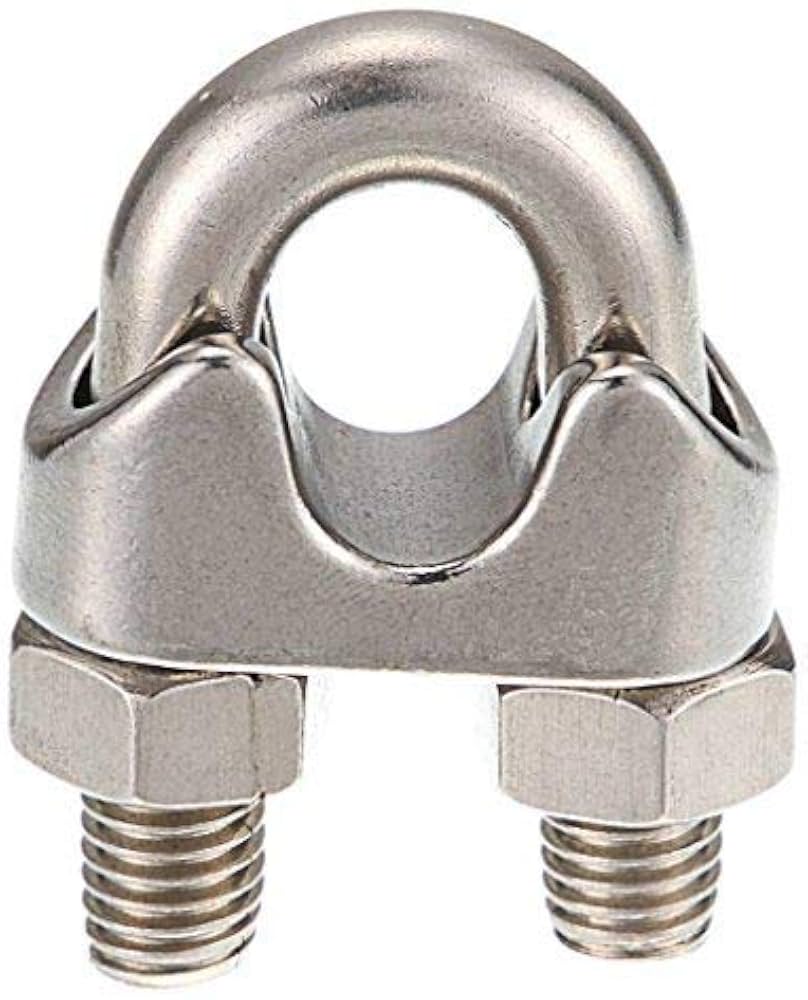

Heavy Duty U Bolts Radius Sizes
|
Diameter |
Width |
Length |
|
1/2" |
2-1/2" |
6-3/4" |
|
5/16" |
1-1/4" |
2"
|
|
3/8" |
2-3/4" |
3-3/4" |
|
5/8" |
2-3/4" |
8"
|
|
9/16" |
2-3/4" |
7"
|
|
3/4" |
3-5/8" |
15"
|
Dimensions of Square U Bolt
Thread Length
(D) |
Size
(B x C) |
|
3/8"-16 (A) |
| 2"
|
3"
x 4" |
|
1-1/2" |
4"
x 3" |
| 3"
|
3"
x 6" |
| 3"
|
4"
x 5" |
| 3"
|
3"
x 7" |
| 3"
|
4"
x 6" |
