Trusted Arc Weld Studs Manufacturer in India

Weld Studs Spotlight

Diameters Range : 4mm to 25mm
Length: 6mm and up
International Standard: DIN 970, DIN 933, DIN 931, ASME B18 2.2 and ASME B18 2.1
ISO and DIN Standard: ISO 13918 and DIN 32501
Raw Material Origin: New Zealand, Algeria, United Kingdom, SA, Europe, Morocco, South Africa, New Zealand, Australia India etc
MTC: EN 10204/3.1B
Suitable Environment: Salt Water and Mild Acids
Thread Pitch: Fine Thread and Coarse Thread
Finish: Phosphating, HDG, Oxidation
Threads: UNJ, UNC, UNF, Rolled, UNR
Temperature Range: Up to 1500 deg ° F(815 deg ° C)
To Know About Latest Price List of Weld Studs Please Contact Us
Headed Weld Studs

Headed Weld Studs

Collar Weld Studs

Collar Weld Studs

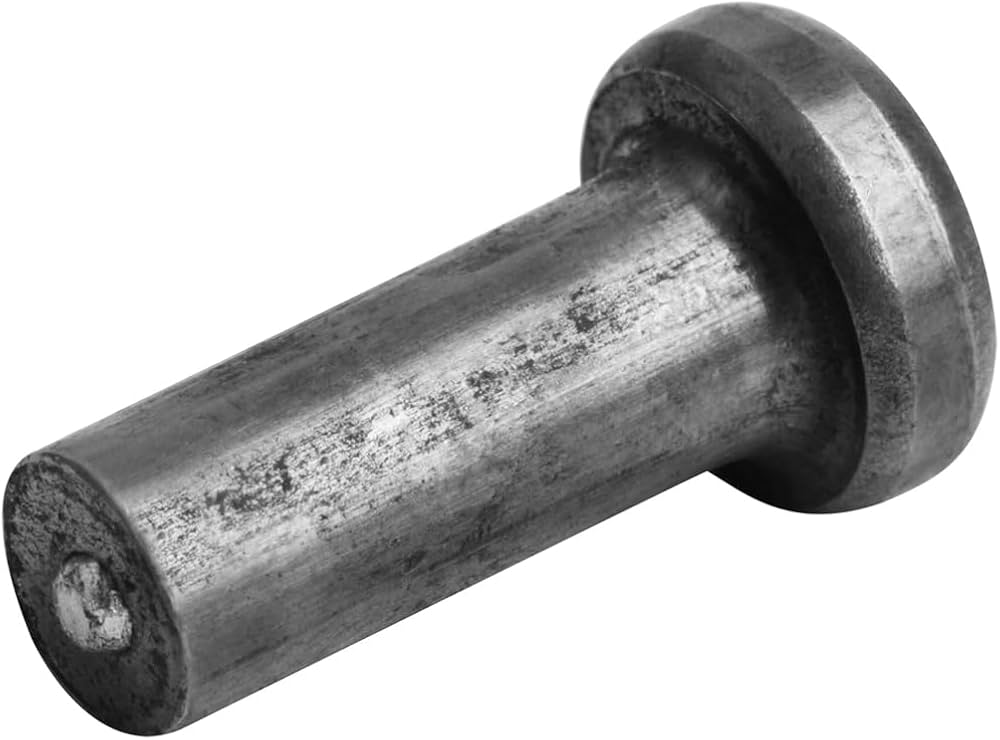

Concrete Weld Studs

Concrete Weld Studs

Table of Content

Weld Studs Manufacturer in India Who Offer Specification in detailed

Weld Stud Size

  • M1 To M20

Welding Studs Diameter

  • 4mm to 25mm

Concrete Weld Studs Lengths Range

  • 6mm and up

Two Methods for Stud Welding

  • CD and Drawn Arc Weld Studs

Flanged Weld Stud Manufacturing Methods

  • Cold Forging
  • CNC Machined

Weldable Studs Test Report

  • 100% Radiography Test Report
  • Third Party Inspection
  • Raw Materials Certificate
  • EN 10204/3.1B

Weldable Threaded Studs Advantages

  • Fast Attachment
  • Good Welding Speed
  • Good Weld Strength

ISO Standard

  • ISO 13918 Weld Stud

DIN Standard

  • DIN 32501 Weld Stud

Supplier of CD Weld Studs in Diameters Range 4mm to 25mm at Best Price in Mumbai

Price List of Weld Studs

Weld Studs Manufacturer in India Provides Various Finishes With fastest delivery

To Know About Weld Studs Price Per Kg in India Please Contact Us

CD Metric Flanged Weld Studs Dimensions

Stud
Specifications 		Thread Size C M3 –
.50		 M4 –
.70		 M5 –
.80		 M6 –
1.00		 M8 –
1.25		 M10 –
1.50
Stud
Diameter 		Z 0.118 0.158 0.197 0.236 0.315 0.394
Flange
Diameter 		D 0.197 0.236 0.276 0.315 0.413 0.465
Min. Length L 6mm 6mm 10mm 10mm 12mm 12mm
Standard
Accessories 		B Collet
Standard 1-
3/8" Long 		P/N
*		 CDB-
003M		 CDB-
004M		 CDB-
005M		 CDB-
006M		 CDB-
008M		 CDB-
010M
Long
Collet 		2-
3/8"
Long 		P/N
**		 CDBN-
003M		 CDBN-
004M		 CDBN-
005M		 CDBN-
006M		 CDBN-
008M		 CDBN-
010M
Euro
Collet 		1.80
Long 		P/N CDBS-
003M		 CDBS-
004M		 CDBS-
005M		 CDBS-
006M		 CDBS-
008M		 CDBS-
010M

Refer to the Drawn Arc Weld Studs and Headed Weld Studs Weldability and Equipment

Drawn Arc Weld Studs Weldability and Equipment

  • Weld Stud Insulation Equipment
  • Capacitive Discharge Equipment
  • Arc Stud Welding Equipment
  • Welding Stud REACH Arms
  • Automatic Drilling Machine
  • CNC Auto Feed Stud Welding Units

Cd Weld Studs Weight Chart

Length 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4
5/16 dia. 12.8 17 21.3 25.5 34 42.5 51 59.5 68
3/8 dia. 18.8 25 31.3 37.5 50 62.5 75 87.5 100
1/2 dia. 34.5 46 57.5 69 92 115 138 161 184
3/4 dia. - - 133.8 160.5 214 267.5 321 374.5 428

Stockist of Threaded Weld Studs for Shipbuilding and Offshore Industry

Weldable Studs Applications

Weld Studs Supplier in India Supplying products To Various engineering applications

  • Weight Handling Capacity
  • Ergonomic Aspects
  • Accessibility
  • Welding Environment
  • Stud Diameter
  • Stud Length
  • Gun Dimensions
  • Cable Length

Exporter of Concrete Weld Studs Available in Various Material Like Stainless, Aluminum and Carbon Steel etc

Internally Threaded Weld Studs Materials

Stability Class A2-70 A4-70 ASTM A193 B8 Class 8.8 Class 10
Description SS
304		 Stainless Steel
316 		Stainless Steel
304 		Medium Carbon
Steel 		Alloy
Steel

Types of Weld Studs

Weld Studs Supplier in India Who Deliver Frequently Used Types

Weld Studs For Concrete

Weld Studs For Concrete

Flanged Weld Stud

Flanged Weld Stud

Weld Mount Studs

Weld Mount Studs

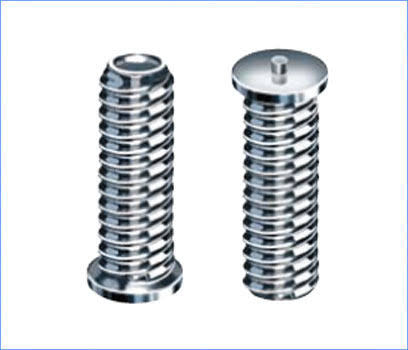

Weldable Studs

Weldable Studs

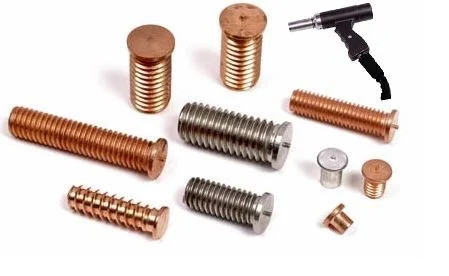

Drawn Arc Stud Welding

Drawn Arc Stud Welding

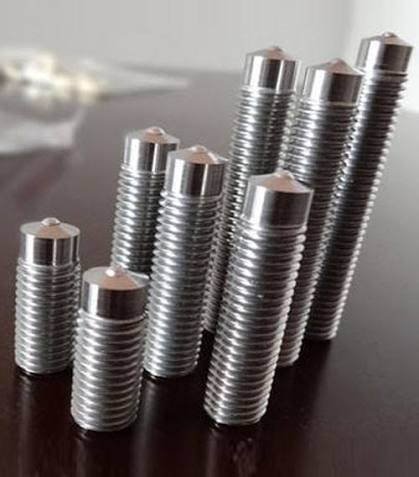

Weldable Threaded Studs

Weldable Threaded Studs

Weldable Studs Torque Specifications

Thread Size #8 #10 #10 1/4 5/16 3/8
Yield Torque 332 lbs 500 lbs 16 lbs 23 lbs 27 lbs 56 lbs 115 lbs 203 lbs
Yield Load 0.006 lbs 0.009 lbs 490 lbs 614 lbs 700 lbs 1114 lbs 1835 lbs 2712 lbs

Arc and CD Weld Studs Types

CD Weld Studs Threaded Unthreaded Tapped Collar Internally
Threaded
Drawn Arc Weld Studs Full
Thread		 Partial
Thread		 Collar
Studs		 Full
Base		 Reduced Base

Arc Weld Studs Mechanical Properties

Standard Mild Steel Studs, Type A,
Per AWS D1.1		 Standard Stainless Steel Studs
Per AWS D1.6
Tensile Strength 61,000 PSI Min. 70,000 PSI Min.
Elongation (% in 2 inch) 17% Min. 40% Min.
Elongation (% in 5x dia.) 14% Min. —
Yield Strength (0.2% offset) 49,000 PSI Min. 35,000 PSI Min.
Reduction of area 50% Min. N/A
