What is ASME B16.11 Threaded Cross Pipe Fitting ?

ASME B16.11 45 Degree Threaded Elbow

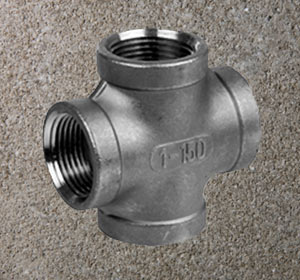

Threaded Cross

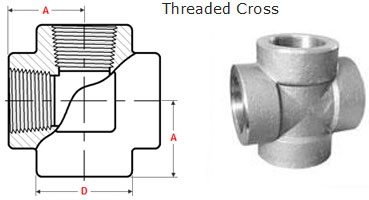

45 Degree Threaded Elbow Dimensions

Threaded Cross Class 2000 Dimensions

NPS Outside Diameter of Band D Center to End A Minimum Wall Thickness
1/2 33 28 3.18
3/4 38 33 3.18
1 46 38 3.68
1¼ 56 44 3.89
1½ 62 51 4.01
2 75 60 4.27
2½ 92 76 5.61
3 109 86 5.99
4 146 106 6.55

Threaded Cross Class 3000 Dimensions

NPS Outside Diameter of Band D Center to End A Minimum Wall Thickness
1/2 38 33 4.09
3/4 46 38 4.32
1 56 44 4.98
1¼ 62 51 5.28
1½ 75 60 5.56
2 84 64 7.14
2½ 102 83 7.65
3 121 95 8.84
4 152 114 11.18

Threaded Cross Class 6000 Dimensions

NPS Outside Diameter of Band D Center to End A Minimum Wall Thickness
1/2 46 38 8.15
3/4 56 44 8.53
1 62 51 9.93
1¼ 75 60 10.59
1½ 84 64 11.07
2 102 83 12.09
2½ 121 95 15.29
3 146 106 16.64
4 152 114 18.67

Stainless Steel Threaded Cross Specification

Threaded Cross Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Stainless Steel Threaded Cross Size 1/8” NB TO 4” NB
Screw Threaded Cross Class 33000 LBS, 6000 LBS, 4500 LBS
NPT Cross Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
NPT Cross Fitting Form Threaded Cross, Forged Threaded Cross
Screwed Cross Fitting Value Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Forged Threaded Cross Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low Temperature Steel, Carbon Steel, Cupro Nickel
ASME B16.11 Threaded Cross Pipe Fitting Pressure Ratings Up to 20,000 psig (1,378 bar)
Threaded Cross Fitting Temperature Ratings Up to 1000° F (537° C)
Types of Screw Threaded Cross NPT, ISO/BSP, SAE threads
ASME B16.11 Threaded Cross Pipe Fitting Sizes Available 1/16 to 1 in.
Main Types Of ASME B16.11 Threaded Cross Pipe Fitting Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs
