Threaded Hex Nipple ASME B16.11

Threaded Hex Nipple ASME B16.11

Suppliers of Brass Hex Nipple , ANSI B16.11 Stainless Steel Hex Nipple manufacturer in India.

Threaded Hex Nipple ASME B16.11 Suppliers in India

Stainless steel hex nipple manufacturers in India

View Threaded reducing hex nipple Dimensions

Manufacturer of ASME B16.11 Hex Nipple Threaded, Carbon Steel Hex Nipple stockist in Mumbai, India, NPT, ISO/BSP, SAE threads Threaded Hex Nipple Price in India.

Table of Content

What is Threaded Hex Nipple ASME B16.11 ?

ASME B16.11 45 Degree Threaded Elbow

Threaded Hex Nipple Dimensions

45 Degree Threaded Elbow Dimensions

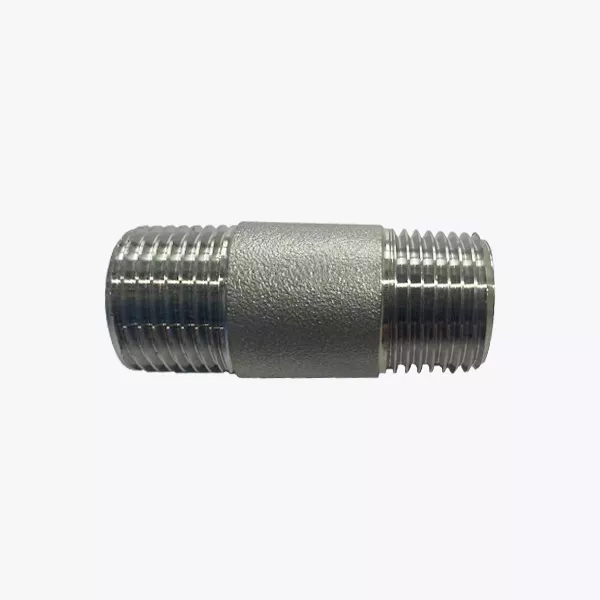

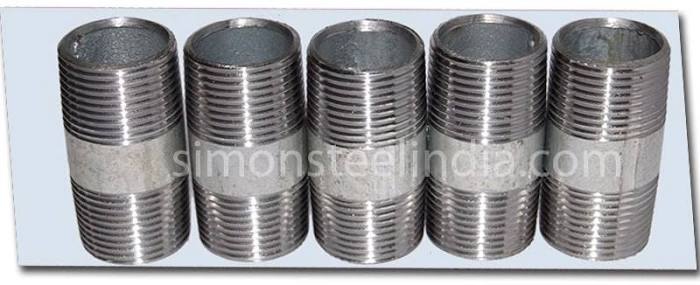

Threaded Pipe Nipple Dimensions

Nominal Diameter Outside Diameter
D		 Sch40 STD
Sch80 XS		 Sch160 XXS L (mm)
DN NPS
8 1/4 13.5 ○ 60
90
10 3/8 17.2 ○ 120
150
15 1/2 21.3 ○ ○ 180
20 3/4 26.7 ○ ○
25 1 33.4 ○ ○
32 1.1/4 42.2 ○ ○
40 1.1/2 48.3 ○ ○
50 2 60.3 ○ ○

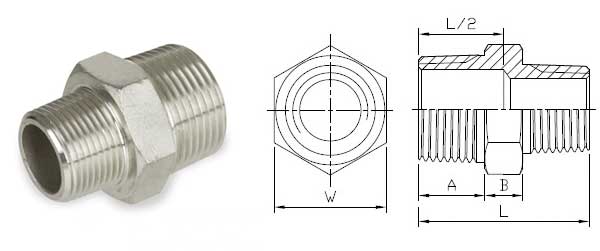

Threaded Reducing Nipple Dimensions

Threaded Reducing Nipple Dimensions
Size A B L W
Standard Pattern Economic Pattern mm in mm in mm in mm in
1/4" 1/8" 13 0.51 6 0.24 31 1.22 15.1 0.59
3/8" 1/8" 14 0.55 7 0.28 34 1.34 18.6 0.73
1/4" 14 0.55 7 0.28 34 1.34 18.6 0.73
1/2" 1/8" 16.5 0.65 8 0.31 36.5 1.44 23 0.91
1/4" 16.5 0.65 8 0.31 36.5 1.44 23 0.91
3/8" 16.5 0.65 8 0.31 36.5 1.44 23 0.91
3/4" 1/8" 16 0.63 8 0.31 40 1.57 29 1.14
1/4" 16 0.63 8 0.31 40 1.57 29 1.14
3/8" 17 0.67 8 0.31 41 1.61 28.5 1.12
1/2" 17 0.67 8 0.31 41.5 1.63 28.5 1.12
1" 1/4" 20 0.79 9 0.35 41 1.61 35.4 1.39
3/8" 20 0.79 9 0.35 42.5 1.67 35.4 1.39
1/2" 20 0.79 9 0.35 45 1.77 35.4 1.39
3/4" 20 0.79 9 0.35 45 1.77 35.4 1.39

ANSI B16.11 Forged Threaded Hex Nipple Specification

Threaded Hex Nipple Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
ANSI B16.11 Forged Threaded Hex Nipple Size 1/8” NB TO 4” NB
ASTM A182 SS Threaded Hex Nipples Class 33000 LBS, 6000 LBS, 4500 LBS
Hex Nipple ASME B16.11 Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Alloy Steel Forged Screwed Hex Nipple Form Threaded Hex Nipple, Forged Threaded Hex Nipple
Forged Screwed Hex Nipple Value Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
ASME B16.11 Threaded Hex Nipple Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low Temperature Steel, Carbon Steel, Cupro Nickel
Hex Nipple ASME B16.11 Pressure Ratings Up to 20,000 psig (1,378 bar)
Threaded Hex Nipple Pipe Temperature Ratings Up to 1000° F (537° C)
Types of Hex Nipple ASME B16.11 NPT, ISO/BSP, SAE threads
Hex Nipple ASME B16.11 Sizes Available 1/16 to 1 in.
Hex Nipple ASME B16.11 Main Types Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs

Forged Threaded Hex Nipple Standards

ASME B16.11 Threaded Hex Nipple: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASME B16.11 Threaded Full Coupling Types

Class 3000 Threaded Brass Elbow

Class 3000 Elbow, Threaded Hex Nipple

Class 6000 NPT Threaded Elbow

Class 6000 Elbow, Threaded Hex Nipple

Class 9000 MS Threaded Elbow

Class 9000 Elbow, Threaded Hex Nipple

B16.11 NPT 45 Degree Street Elbow

B16.11 Threaded Hex Nipple

ASTM A105 45 Degree Threaded Elbow

ASTM A105 Threaded Hex Nipple

A182 45 Degree Threaded Elbow

A182 Threaded Hex Nipple

ASTM A350 45 Degree Threaded Elbow

ASTM A350 Threaded Hex Nipple

A182 Gr F304 Forged 45 Degree Threaded Elbow

A182 Gr F304 Forged Threaded Hex Nipple

ASME B16.11 Forged Threaded Hex Nipple Material

Carbon Steel Hex Nipple
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Stainless Steel Threaded Hex Nipple
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Forged Threaded Hex Nipple Pipe
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Titanium Hex Nipple NPT Thread
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
Inconel Hex Head Threaded Nipple
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel X750
Copper Forged Screwed Hex Nipple T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc.
Copper Nickel Screwed Hex Nipple Copper Nickel 90/10 (C70600) Hex Nipple ASME B16.11, Cupro Nickel 70/30 (C71500) Hex Nipple Threaded, UNS C71640 Hex Nipple NPT Thread
Brass Reducing Hex Nipple 3602 / 2604 / H59 / H62 / etc.
Hastelloy C22 Threaded Hex Nipple Pipe Hastelloy C276 (UNS N10276) Hex Head Threaded Nipple, C22 (UNS N06022) Threaded Reducing Hex Nipple, C4 Threaded Hex Nipple Pipe, C2000 Hexs Nipple, B2 Hexs Nipples, B3 Hexs Nipples, X Hexs Nipples
Monel Forged Threaded Fittings Hex Nipple Monel 400 (UNS No. N04400) Threaded Hex Nipple, Monel 500 (UNS No. N05500) Threaded Hex Nipple Pipe
Alloy 20 Threaded Fittings Hex Nipple Carpenter® 20 Alloy Hexs Nipples, Alloy 20Cb-3 Hexs Nipples
Aluminium Screwed Hex Nipple 3000LB Threaded 5052 / 6061 / 6063 / 2017 / 7075 / etc.
Nickel Alloy 200 Threaded Hex Nipple Nickel 200 Hexs Nipples, Nickel 201 Hexs Nipples
Duplex Steel Hex Nipple Threaded S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Steel Threaded Forged Hex Nipple S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Hex Nipple NPT Thread Incoloy 800 Hexs Nipples, Incoloy 800H Hexs Nipples, Incoloy 800HT (UNS N08800) Hexs Nipples, Incoloy 825 (UNS N08825) Hexs Nipples
254 SMO Hex Head Threaded Nipple SMO 254/6Mo Hexs Nipples, UNS S31254 Hexs Nipples, DIN 1.4547 Hexs Nipples
Nimonic Threaded Reducing Hex Nipple Nimonic 75 Hexs Nipples, Nimonic 80A Hexs Nipples, Nimonic 90 Hexs Nipples
Other Hex Nipple ASME B16.11 material Tin bronze Hexs Nipples, Aluminum bronze Hexs Nipples, Lead bronze Hexs Nipples

ASTM A182 SS Threaded Hex Nipples Price List

Steel Threaded Hexagon Reducing Nipple Price Per Piece in India Stainless Steel Threaded Hexagon Nipples Price in INR Threaded Hex Nipple Pipe Price in Saudi Riyal Threaded Hex Hose Nipple Price in UAE Dirham
HEX NIPPLE: 2 NPS × 1 NPS, CONC. TYPE, ASTM A234-WPB, SMLS, BE × PE, SCH80 × SCH160, NACE MR-0175 / ISO 15156, BS 3799 Rs. 560.81 Saudi Riyal 29.26 UAE Dirham 28.65
HEX NIPPLE: 2 NPS × 1-1/2 NPS, ECC. TYPE, ASTM A234-WPB, SMLS, BE × PE, SCH80 × SCH80, NACE MR-0175 / ISO 15156, BS 3799 Rs. 632.71 Saudi Riyal 33.01 UAE Dirham 32.33
HEX NIPPLE: 2 NPS × 1/2 NPS, ECC. TYPE, ASTM A234-WPB, SMLS, BE × PE, SCH80 × SCH80, NACE MR-0175 / ISO 15156, BS 3799 Rs. 718.99 Saudi Riyal 37.52 UAE Dirham 36.74
HEX NIPPLE: 2 NPS × 1 NPS, CONC. TYPE, ASTM A234-WPB, SMLS, BE × PE, SCH80 × SCH80, NACE MR-0175 / ISO 15156, BS 3799 Rs. 977.82 Saudi Riyal 51.02 UAE Dirham 49.96

Alloy Steel Forged Screwed Full Coupling, Stainless Steel Screwed Full Coupling stockholder, Brass Threaded Full Coupling suppliers in India. Carbon Steel Forged Threaded Full Coupling manufacturers. SS Forged Screwed Full Coupling wholesaler in Mumbai.

Manufacturing full coupling ASME B16.11 in India, Arrow Piping Solution holds a wide range of threaded full pipe coupling in all Thickness, stock for immediate despatch throughout India & globally.
