What is ASME B16.11 Threaded Tee Fittings ?

ASME B16.11 45 Degree Threaded Elbow

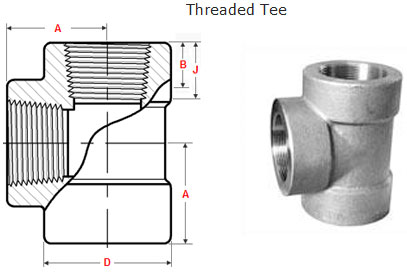

ASME B16.11 Threaded Tee Fitting Dimensions

45 Degree Threaded Elbow Dimensions

Threaded Tee Class 2000 Dimensions

NPS Minimum Length of Thread Outside Diameter of Band
D		 Center to End
A		 Minimum Wall Thickness
B J
1/2 10.9 13.6 33 28 3.18
3/4 12.7 13.9 38 33 3.18
1 14.7 17.3 46 38 3.68
1¼ 17 18 56 44 3.89
1½ 17.8 18.4 62 51 4.01
2 19 19.2 75 60 4.27
2½ 23.6 28.9 92 76 5.61
3 25.9 30.5 109 86 5.99
4 27.7 33 146 106 6.55

Threaded Equal Tee Class 3000 Dimensions

NPS Minimum Length of Thread Outside Diameter of Band
D		 Center to End
A		 Minimum Wall Thickness
B J
1/2 10.9 13.6 38 33 4.09
3/4 12.7 13.9 46 38 4.32
1 14.7 17.3 56 44 4.98
1¼ 17 18 62 51 5.28
1½ 17.8 18.4 75 60 5.56
2 19 19.2 84 64 7.14
2½ 23.6 28.9 102 83 7.65
3 25.9 30.5 121 95 8.84
4 27.7 33 152 114 11.18

Threaded Tee Class 6000 Dimensions

NPS Minimum Length of Thread Outside Diameter of Band
D		 Center to End
A		 Minimum Wall Thickness
B J
1/2 10.9 13.6 46 38 8.15
3/4 12.7 13.9 56 44 8.53
1 14.7 17.3 62 51 9.93
1¼ 17 18 75 60 10.59
1½ 17.8 18.4 84 64 11.07
2 19 19.2 102 83 12.09
2½ 23.6 28.9 121 95 15.29
3 25.9 30.5 146 106 16.64
4 27.7 33 152 114 18.67

NPT Threaded Tee Specification

ASME B16.11 threaded tee Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Threaded tee fittings Size 1/8” NB TO 4” NB
Screwed tee Class 33000 LBS, 6000 LBS, 4500 LBS
Threaded copper tee Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
NPT threaded tee Form Threaded Tee, Forged Threaded Tee
NPT pipe tee Value Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Forged Threaded Tee Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low Temperature Steel, Carbon Steel, Cupro Nickel
ASME B16.11 threaded tee Pressure Ratings Up to 20,000 psig (1,378 bar)
Threaded Fittings Tee Temperature Ratings Up to 1000° F (537° C)
Threaded copper tee Material 316 stainless steel, brass, carbon steel -
Types of Alloy Steel Forged Screwed Tee NPT, ISO/BSP, SAE threads
Sizes available 1/16 to 1 in.
Main Types Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs

Forged Threaded Tee Standards

ASME B16.11 Threaded Tee Fitting ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN EN10253-1, EN10253-2

45 Degree NPT Elbow Types

Class 3000 Threaded Brass Elbow

Class 3000 Elbow, Threaded Brass Elbow

Class 6000 NPT Threaded Elbow

Class 6000 Elbow, NPT Threaded Elbow

Class 9000 MS Threaded Elbow

Class 9000 Elbow, MS Threaded Elbow

B16.11 NPT 45 Degree Street Elbow

B16.11 NPT 45 Degree Street Elbow Brass

ASTM A105 45 Degree Threaded Elbow

ASTM A105 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

Threaded Equal Tee Material

Carbon Steel Screwed Tee
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Stainless Steel Screwed Tee
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Forged Screwed Tee
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Titanium NPT Pipe Tee
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
Inconel Forged Threaded Tee
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel X750
Copper Threaded Equal Tee T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640 etc.
Copper Nickel Threaded Equal Tee Copper Nickel 90/10 (C70600) tees, Cupro Nickel 70/30 (C71500) tees, UNS C71640 tees
Brass Threaded Equal Tee 3602 / 2604 / H59 / H62 / etc.
Hastelloy Threaded Equal Tee Hastelloy C276 (UNS N10276) tees, C22 (UNS N06022) tees, C4 tees, C2000 tees, B2 tees, B3 tees, X tees
Monel Threaded Equal Tee Monel 400 (UNS No. N04400) tees, Monel 500 (UNS No. N05500) tees
Alloy 20 Threaded Equal Tee Carpenter® 20 Alloy tees, Alloy 20Cb-3 tees
Aluminium Threaded Equal Tee 5052 / 6061 / 6063 / 2017 / 7075 / etc.
Nickel Threaded Equal Tee Nickel 200 tees, Nickel 201 tees
Duplex Threaded Fittings Tee S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Threaded Fittings Tee S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Threaded Fittings Tee Incoloy 800 tees, Incoloy 800H tees, Incoloy 800HT (UNS N08800) tees, Incoloy 825 (UNS N08825) tees
254 SMO Forged Threaded Fittings Tee SMO 254/6Mo tees, UNS S31254 tees, DIN 1.4547 tees
Nimonic Forged Threaded Fittings Tee Nimonic 75 tees, Nimonic 80A tees, Nimonic 90 tees
Other ASME B16.11 Threaded Tee Material Tin bronze tees, Aluminum bronze tees, Lead bronze tees

Threaded Tee Fittings Price List

NPT Pipe Tee Price Per Piece in India Threaded Copper Tee Fittings Price in INR Forged Threaded Tee Price in Saudi Riyal ASME B16.11 Threaded Tee Fittings Price in UAE Dirham
EQ. STRAIGHT TEE: 1 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV. TO A153, ASME B16.11 Rs. 930.75 Saudi Riyal 48.75 UAE Dirham 47.73
EQ. STRAIGHT TEE: 1-1/2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV. TO A153, ASME B16.11 Rs. 701.65 Saudi Riyal 36.75 UAE Dirham 35.98
EQ. STRAIGHT TEE: 2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV. TO A153, ASME B16.11 Rs. 558.45 Saudi Riyal 29.25 UAE Dirham 28.64
EQ. STRAIGHT TEE: 1/2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV. TO A153, ASME B16.11 Rs. 916.44 Saudi Riyal 48.00 UAE Dirham 46.99

Threaded Equal Tee Weight Chart

Threaded Equal Tee Weight Chart
Class 2000 Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
B – 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16
A – 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 2 1/16 2 1/2
Wt – 0.188 0.236 0.435 0.740 1.058 1.375 1.740 2.883 7.750 11.000
Class 3000 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/8
A 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2
Wt 0.250 0.290 0.500 0.750 1.188 1.988 2.235 3.000 4.930 7.375 13.000
Class 6000 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
B 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 5 3/8
A 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2 3 1/16
Wt 0.250 0.640 0.500 1.438 2.188 2.785 4.688 5.750 9.500 15.000 30.000
