What is ASME B16.11 Threaded Half Coupling ?

ASME B16.11 45 Degree Threaded Elbow

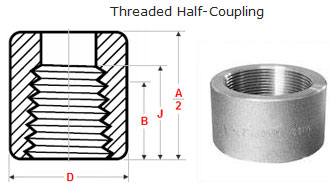

ASME B16.11 Half Coupling Threaded Dimensions

45 Degree Threaded Elbow Dimensions

ASME B16.11 Half Coupling Threaded - Class 3000

NPS End to End Outside Diameter Minimum Length of Thread
A D B J
1/2 48 28 10.9 13.6
3/4 51 35 12.7 13.9
1 60 44 14.7 17.3
1¼ 67 57 17 18
1½ 79 64 17.8 18.4
2 86 76 19 19.2
2½ 92 92 23.6 28.9
3 108 108 25.9 30.5
4 121 140 27.7 33

Threaded Half Coupling Class 6000 Dimensions

NPS End to End Outside Diameter Minimum Length of Thread
A D B J
1/2 48 38 10.9 13.6
3/4 51 44 12.7 13.9
1 60 57 14.7 17.3
1¼ 67 64 17 18
1½ 79 76 17.8 18.4
2 86 92 19 19.2
2½ 92 108 23.6 28.9
3 108 127 25.9 30.5
4 121 159 27.7 33

ASME B16.11 Coupling Threaded Specification

Threaded Half Coupling Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Threaded Pipe Half Coupling Size 1/8” NB TO 4” NB
Threaded Half Coupling Class 33000 LBS, 6000 LBS, 4500 LBS
Threaded Half Coupling Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Threaded Half Coupling Form Threaded Half Coupling, Forged Threaded Half Coupling
Threaded Half Coupling Pressure Ratings Up to 20,000 psig (1,378 bar)
Threaded Half Coupling Temperature Ratings Up to 1000° F (537° C)
Types of ASME B16.11 Threaded Half Coupling NPT, ISO/BSP, SAE threads
Sizes Available 1/16 to 1 in.
Main Types of ASME B16.11 Threaded Half Coupling Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs
Half Coupling ASME B16.11 Value Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Threaded Half Coupling Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low Temperature Steel, Carbon Steel, Cupro Nickel

Threaded Half Coupling 1/2 Standards

ASME B16.11 Threaded Half Coupling: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

45 Degree NPT Elbow Types

Class 3000 Threaded Brass Elbow

Class 3000 Elbow, Threaded Brass Elbow

Class 6000 NPT Threaded Elbow

Class 6000 Elbow, NPT Threaded Elbow

Class 9000 MS Threaded Elbow

Class 9000 Elbow, MS Threaded Elbow

B16.11 NPT 45 Degree Street Elbow

B16.11 NPT 45 Degree Street Elbow Brass

ASTM A105 45 Degree Threaded Elbow

ASTM A105 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

ASME B16.11 Half Coupling Threaded Sizes

ASME B16.11 Half Coupling Threaded Dimensions
Description Class Designation
2000 3000 6000
Coupling 1/2 – 4 1/2 – 2 1/2 – 2
Half-Coupling 1/2 – 4 1/2 – 2 1/2 – 2
Pipe Wall SCH 80 / XS SCH 160 XXS
NOMINAL PIPE SIZE END TO END MINIMUM LENGTH OF THREAD OUTSIDE DIAMETER
Inch. Full Coupling Half Coupling # 3000 # 6000
A A/2 B C D D
1/8 32 A/2 6.7 6.4 16 22
1/4 35 A/2 10.2 8.1 19 25
3/8 38 A/2 10.4 9.1 22 32
1/2 48 A/2 13.6 10.9 28 38
3/4 51 A/2 13.9 12.7 35 44
1 60 A/2 17.3 14.7 44 57
1 1/4 67 A/2 18 17 57 64
1 1/2 79 A/2 18.4 17.8 64 76
2 86 A/2 19.2 19 76 92
2 1/2 92 A/2 28.9 23.6 92 108
3 108 A/2 30.5 25.9 108 127
4 121 A/2 33 27.7 140 159

Threaded Half Coupling Material

Carbon Steel Threaded Pipe Half Couplings
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Stainless Steel Threaded Half Couplings
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Forged Screwed Half Couplings
  • ASTM A182 F5 Forged Half Couplings
  • ASTM A182 F9 Forged Half Couplings
  • ASTM A182 F11 Forged Half Couplings
  • ASTM A182 F22 Forged Half Couplings
  • ASTM A182 F91 Forged Half Couplings
Titanium Forged Screwed Half Couplings
  • ASTM B381 Titanium Gr. 1 Forged Half Couplings
  • ASTM B381 Titanium Gr. 2 Forged Half Couplings
  • ASTM B381 Titanium Gr. 4 Forged Half Couplings
  • ASTM B381 Titanium Gr. 5 Forged Half Couplings
  • ASTM B381 Titanium Gr. 7 Forged Half Couplings
Inconel Threaded Half Couplings
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel X750
Copper Threaded Half Couplings T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc.
Copper Nickel Threaded Half Couplings Copper Nickel 90/10 (C70600) Half Couplings, Cupro Nickel 70/30 (C71500) Half Couplings, UNS C71640 Half Couplings
Brass Forged Threaded Half Couplings 3602 / 2604 / H59 / H62 / etc.
Hastelloy Forged Threaded Half Couplings Hastelloy C276 (UNS N10276) Half Couplings, C22 (UNS N06022) Half Couplings, C4 Half Couplings, C2000 Half Couplings, B2 Half Couplings, B3 Half Couplings, X Half Couplings
Monel Forged Threaded Half Couplings Monel 400 (UNS No. N04400) Half Couplings, Monel 500 (UNS No. N05500) Half Couplings
Alloy 20 Threaded Pipe Half Couplings Carpenter® 20 Alloy Half Couplings, Alloy 20Cb-3 Half Couplings
Aluminium Threaded Half Couplings 5052 / 6061 / 6063 / 2017 / 7075 / etc.
Nickel Threaded Half Couplings Nickel 200 Half Couplings, Nickel 201 Half Couplings
Duplex Threaded Half Couplings S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Threaded Half Couplings S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Threaded Half Couplings Incoloy 800 Half Couplings, Incoloy 800H Half Couplings, Incoloy 800HT (UNS N08800) Half Couplings, Incoloy 825 (UNS N08825) Half Couplings
254 SMO Forged Threaded Half Couplings SMO 254/6Mo Half Couplings, UNS S31254 Half Couplings, DIN 1.4547 Half Couplings
Nimonic Forged Threaded Half Couplings Nimonic 75 Half Couplings, Nimonic 80A Half Couplings, Nimonic 90 Half Couplings
Other ASME B16.11 Threaded Half Coupling Material Tin Bronze Half Couplings, Aluminum Bronze Half Couplings, Lead Bronze Half Couplings

ASME B16.11 Half Coupling Threaded Price List

ASME B16.11 Threaded Half Coupling Price Per Piece in India ASME B16.11 Half Coupling Threaded Price in INR Half Coupling ANSI B16.11 Price in Saudi Riyal Threaded Pipe Half Coupling Price in UAE Dirham
COUPLING: 1 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV TO A153, ASME B16.11 Rs. 716.74 Saudi Riyal 37.53 UAE Dirham 36.76
COUPLING: 1/2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV TO A153, ASME B16.11 Rs. 465.88 Saudi Riyal 24.39 UAE Dirham 23.89
COUPLING: 2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV TO A153, ASME B16.11 Rs. 637.89 Saudi Riyal 33.40 UAE Dirham 32.72

ASME B16.11 Threaded Coupling Weight

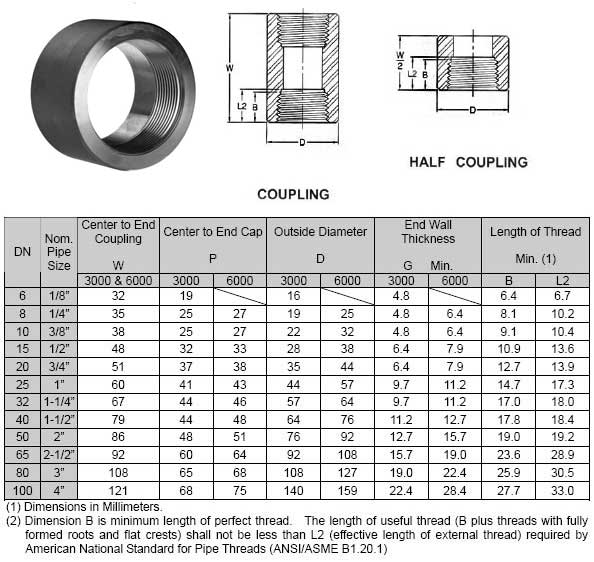

ASME B16.11 Threaded Coupling Dimensions Diagram

ASME B16.11 Threaded Coupling Pressure Ratings

Pressure-Temperature Ratings for Malleable Iron Threaded Fittings (psig)
Temperature Class 300
(°F) (°C) 150 1/4 – 1 inches 1 1/4 – 2 inches 2 1/2 – 3 inches
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 – 935 750 560
450 232 – 725 600 475
500 260 – 510 450 385
550 288 – 300 300 300
