What is ASME B16.11 Threaded Full Coupling ?

ASME B16.11 45 Degree Threaded Elbow

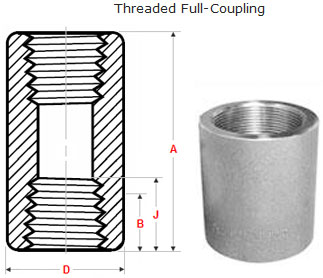

Threaded Full Coupling Dimensions

45 Degree Threaded Elbow Dimensions

Forged Screwed Full Coupling 3000LB Threaded

NPS End to End Outside Diameter Minimum Length of Thread
A D B J
1/2 48 28 10.9 13.6
3/4 51 35 12.7 13.9
1 60 44 14.7 17.3
1¼ 67 57 17 18
1½ 79 64 17.8 18.4
2 86 76 19 19.2
2½ 92 92 23.6 28.9
3 108 108 25.9 30.5
4 121 140 27.7 33

Threaded Reducing Coupling Class 6000 Dimensions

NPS End to End Outside Diameter Minimum Length of Thread
A D B J
1/2 48 38 10.9 13.6
3/4 51 44 12.7 13.9
1 60 57 14.7 17.3
1¼ 67 64 17 18
1½ 79 76 17.8 18.4
2 86 92 19 19.2
2½ 92 108 23.6 28.9
3 108 127 25.9 30.5
4 121 159 27.7 33

Forged Threaded Full Coupling Specification

ASME B16.11 Threaded Full Coupling Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
ASME B16.11 Forged Threaded Coupling Size 1/8" NB TO 4" NB
ANSI B16.11 Forged Threaded Full Coupling Class 33000 LBS, 6000 LBS, 4500 LBS
ASTM A182 SS Threaded Full Coupling Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
ASME B16.11 Threaded Full Coupling Form Threaded Full Coupling, Forged Threaded Full Coupling
Threaded Full Pipe Coupling Pressure Ratings Up to 20,000 psig (1,378 bar)
Full Coupling ASME B16.11 Temperature Ratings Up to 1000° F (537° C)
Types of ASTM A182 SS Threaded Full Coupling NPT, ISO/BSP, SAE threads
Sizes Available 1/16 to 1 in.
Main Types Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs
ANSI B16.11 Forged Threaded Full Coupling Value Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
ASME B16.11 Forged Threaded Coupling Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low Temperature Steel, Carbon Steel, Cupro Nickel

Screwed Full Coupling Standards

ASME B16.11 Threaded Full Coupling: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASME B16.11 Threaded Full Coupling Types

Class 3000 Threaded Brass Elbow

Class 3000 Elbow, Threaded Brass Elbow

Class 6000 NPT Threaded Elbow

Class 6000 Elbow, NPT Threaded Elbow

Class 9000 MS Threaded Elbow

Class 9000 Elbow, MS Threaded Elbow

B16.11 NPT 45 Degree Street Elbow

B16.11 NPT 45 Degree Street Elbow Brass

ASTM A105 45 Degree Threaded Elbow

ASTM A105 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

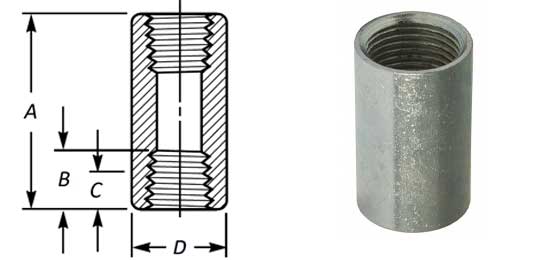

Forged Screwed Full Coupling Sizes

Forged Screwed Full Coupling Sizes
Description Class Designation
2000 3000 6000
Full-Coupling 1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
Pipe Wall SCH 80 / XS SCH 160 XXS
NOMINAL PIPE SIZE END TO END MINIMUM LENGTH OF THREAD OUTSIDE DIAMETER
Inch. Full Coupling Half Coupling # 3000 # 6000
A A/2 B C D D
1/8 32 A/2 6.7 6.4 16 22
1/4 35 A/2 10.2 8.1 19 25
3/8 38 A/2 10.4 9.1 22 32
1/2 48 A/2 13.6 10.9 28 38
3/4 51 A/2 13.9 12.7 35 44
1 60 A/2 17.3 14.7 44 57
1 1/4 67 A/2 18 17 57 64
1 1/2 79 A/2 18.4 17.8 64 76
2 86 A/2 19.2 19 76 92
2 1/2 92 A/2 28.9 23.6 92 108
3 108 A/2 30.5 25.9 108 127
4 121 A/2 33 27.7 140 159

ANSI B16.11 Forged Threaded Full Coupling Material

carbon steel Threaded Full Pipe Coupling
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Stainless Steel Screwed Full Coupling
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Forged Screwed Full Coupling
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Titanium Full Threaded Rod Coupling
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
Inconel Screwed Full Coupling
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750
Copper Forged Forged Threaded Full Coupling T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Threaded Full Coupling Copper Nickel 90/10 (C70600) Full Couplings, Cupro Nickel 70/30 (C71500) Full Couplings, UNS C71640 Full Couplings
Brass Forged Screwed Full Coupling 3602 / 2604 / H59 / H62 / etc.
Hastelloy Threaded Forged Full Coupling Hastelloy C276 (UNS N10276) Full Couplings, C22 (UNS N06022) Full Couplings, C4 Full Couplings, C2000 Full Couplings, B2 Full Couplings, B3 Full Couplings, X Full Couplings
Monel NPT Pipe Coupler Monel 400 (UNS No. N04400) Full Couplings, Monel 500 (UNS No. N05500) Full Couplings
Alloy 20 Threaded Forged Full Coupling Carpenter® 20 Alloy Fulls Couplings, Alloy 20Cb-3 Fulls Couplings
Aluminium Threaded Forged Full Coupling 5052 / 6061 / 6063 / 2017 / 7075 / etc.
Nickel Threaded Full Pipe Coupling Nickel 200 Fulls Couplings, Nickel 201 Full Couplings
Duplex Steel Threaded Full Coupling S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Full Threaded Rod Coupling S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Forged Screwed Full Coupling 3000LB Threaded Incoloy 800 Full Couplings, Incoloy 800H Full Couplings, Incoloy 800HT (UNS N08800) Full Couplings, Incoloy 825 (UNS N08825) Full Couplings
254 Smo Screwed Full Coupling SMO 254/6Mo Full Couplings, UNS S31254 Full Couplings, DIN 1.4547 Full Couplings
Nimonic Forged Screwed Full Coupling 3000LB Threaded Nimonic 75 Full Couplings, Nimonic 80A Full Couplings, Nimonic 90 Full Couplings
Other ASME B16.11 Threaded Full Coupling material Tin bronze Threaded Full Pipe Coupling, Aluminum bronze Full Threaded Rod Coupling, Lead bronze Screwed Full Coupling

ASTM A182 SS Threaded Full Coupling Price List

ASME B16.11 Threaded Full Coupling Price Per Piece in India Threaded full pipe coupling Price in INR ANSI B16.11 Forged Threaded Full Coupling Price in Saudi Riyal Full coupling material Price in UAE Dirham
COUPLING: 2 NPS, FULL COUPLING, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV TO A153, ASME B16.11 Rs. 637.98 Saudi Riyal 33.40 UAE Dirham 32.70
COUPLING: 2 NPS, FULL COUPLING, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV TO A153, ASME B16.11 Rs. 644.80 Saudi Riyal 33.75 UAE Dirham 33.05
COUPLING: 1 NPS, FULL COUPLING, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV TO A153, ASME B16.11 Rs. 859.74 Saudi Riyal 45.00 UAE Dirham 44.07

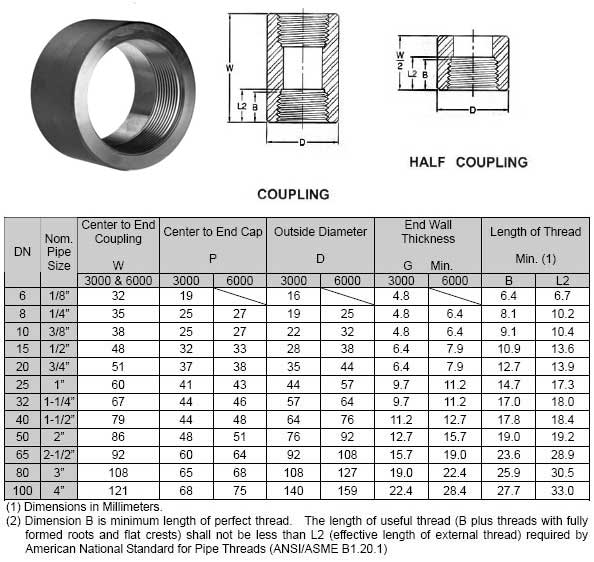

ANSI B16.11 Forged Threaded Full Coupling Weight Chart

ANSI B16.11 Forged Threaded Full Coupling Weight Chart

ASME B16.11 Forged Threaded Coupling Pressure Ratings

Pressure-Temperature ratings for malleable iron threaded fittings (psig)
Temperature Class 150 Class 300
(oF) (oC) 1/4 - 1 inches 1 1/4 - 2 inches 2 1/2 - 3 inches
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 – 935 750 560
450 232 – 725 600 475
500 260 – 510 450 385
550 288 – 300 300 300
