Threaded Union

ANSI / ASME B16.11 Threaded Union

Suppliers of Copper Male Threaded Union , ANSI B16.11 Brass Threaded Union manufacturer in India.

ASME B16.11 Threaded Union Manufacturers in India

ANSI B16.11 Forged Threaded Union Supplier in Mumbai

View ASTM A182 SS Threaded Union Dimensions

Manufacturer of Copper Threaded Union, ASME B16.11 Threaded Union stockist in Mumbai, India, NPT, ISO/BSP, SAE threads Threaded Fittings Union Price in India.

Table of Content

What is ASME B16.11 Threaded Union ?

ASME B16.11 45 Degree Threaded Elbow

Stainless steel threaded union Dimensions

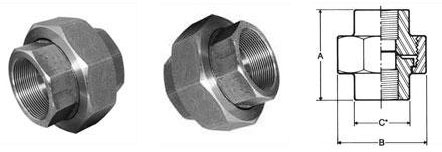

Stainless Steel Threaded Union Dimensions
Class 3000 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
A 1 11/16 1 11/16 1 27/32 2 2 5/16 2 7/16 2 7/8 3 3 1/2 4 1/2 4 7/16
B 1 31/64 1 31/64 1 11/16 1 15/16 2 3/8 2 25/32 3 23/64 3 23/32 4 27/64 5 15/64 6 5/32
C 53/64 53/64 1 1 3/16 1 15/32 1 25/32 2 7/32 2 35/64 3 1/16 3 9/16 4 9/32
D 25/32 25/32 31/32 1 3/32 1 5/32 1 3/8 1 45/64 1 7/8 2 1/16 2 3/8 2 7/16
E 7/16 7/16 7/16 7/16 9/16 9/16 9/16 9/16 11/16 7/8 1
F 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535
0.430 0.565 0.700 0.865 1.075 1.340 1.685 1.925 2.416 2.921 3.550
Class 6000 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
A 1 11/15 1 27/32 2 2 5/16 2 7/16 2 7/8 3 3 1/2 4 1/8
B 1 31/64 1 11/16 1 15/16 2 3/8 2 25/32 3 23/64 3 23/32 4 27/64 5 15/64
C 53/64 1 1 3/16 1 15/32 1 25/32 2 7/32 2 35/64 3 1/16 3 9/16
D 25/32 31/32 1 3/32 1 5/32 1 3/8 1 45/64 1 7/8 2 1/16 2 3/8
E 7/16 7/16 7/16 9/16 9/16 9/16 9/16 11/16 7/8
F 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406
0.430 0.565 0.700 0.865 1.075 1.340 1.685 1.925 2.416

ASME B16.11 Forged Threaded Union Specification

Threaded Union Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
ASME B16.11 Threaded Union Size 1/8” NB TO 4” NB
ASTM A182 SS Threaded Unions Class 33000 LBS, 6000 LBS, 4500 LBS
ANSI B16.11 Forged Threaded Union Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
ASME B16.11 Forged Threaded Union Form Threaded Union, Forged Threaded Union
ASME B16.11 Threaded Union Pressure Ratings Up to 20,000 psig (1,378 bar)
Threaded Fittings Union Temperature Ratings Up to 1000° F (537° C)
Types of ASTM A182 SS Threaded Unions NPT, ISO/BSP, SAE threads
Sizes available 1/16 to 1 in.
Main Types Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs
Screwed Union Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Threaded Forged Union Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

ASME B16.11 Threaded Union Types

Class 3000 Threaded Brass Elbow

Class 3000 Elbow, Threaded Brass Elbow

Class 6000 NPT Threaded Elbow

Class 6000 Elbow, NPT Threaded Elbow

Class 9000 MS Threaded Elbow

Class 9000 Elbow, MS Threaded Elbow

B16.11 NPT 45 Degree Street Elbow

B16.11 NPT 45 Degree Street Elbow Brass

ASTM A105 45 Degree Threaded Elbow

ASTM A105 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

ANSI B16.11 Forged Threaded Union Material

Carbon Steel Threaded Fittings Union
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Stainless Steel Threaded Union
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Forged Screwed Union
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Titanium Forged Threaded Fittings Union
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
Inconel Forged Screwed Union
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel X750
Copper Male Threaded Union T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc.
Copper Nickel Male Threaded Union Copper Nickel 90/10 (C70600) Unions, Cupro Nickel 70/30 (C71500) Unions, UNS C71640 Unions
Brass Threaded Union 3602 / 2604 / H59 / H62 / etc.
Hastelloy Forged Threaded Union Hastelloy C276 (UNS N10276) Unions, C22 (UNS N06022) Unions, C4 Unions, C2000 Unions, B2 Unions, B3 Unions, X Unions
Monel Threaded Forged Union Monel 400 (UNS No. N04400) Union, Monel 500 (UNS No. N05500) Union
Alloy 20 Forged Screwed Union Carpenter® 20 Alloy Union, Alloy 20Cb-3 Union
Aluminium Screwed Union 3000LB Threaded 5052 / 6061 / 6063 / 2017 / 7075 / etc.
Nickel Screwed Union 3000LB Threaded Nickel 200 Union, Nickel 201 Union
Duplex Steel Threaded Unions S31803 / S32205 ASTM Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Threaded Fittings Union S32750 / S32760 ASTM Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Forged Screwed Union Incoloy 800 Unions, Incoloy 800H Unions, Incoloy 800HT (UNS N08800) Unions, Incoloy 825 (UNS N08825) Unions
254 Smo Forged Threaded Union SMO 254/6Mo Union, UNS S31254 Union, DIN 1.4547 Union
Nimonic Threaded Forged Union Nimonic 75 Union, Nimonic 80A Union, Nimonic 90 Union
Other ASME B16.11 Threaded Union material Tin bronze Threaded Fittings Union, Aluminum bronze Threaded Union, Lead bronze Threaded Union

ASTM A182 SS Threaded Unions Price List

Threaded pipe union fittings Price Per Piece in India ASME B16.11 Threaded Union Price in INR Screwed union pipe fittings Price in Saudi Riyal Stainless steel threaded unions Price in UAE Dirham
UNION: 1/2 NPS, HEXAGONAL UNION, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV TO A153, MSS SP 83 Rs. 494.34 Saudi Riyal 25.88 UAE Dirham 25.35
UNION: 2 NPS, HEXAGONAL UNION, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV TO A153, MSS SP 83 Rs. 995.85 Saudi Riyal 52.14 UAE Dirham 51.06
UNION: 1 NPS, HEXAGONAL UNION, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV TO A153, MSS SP 83 Rs. 780.92 Saudi Riyal 40.88 UAE Dirham 40.04

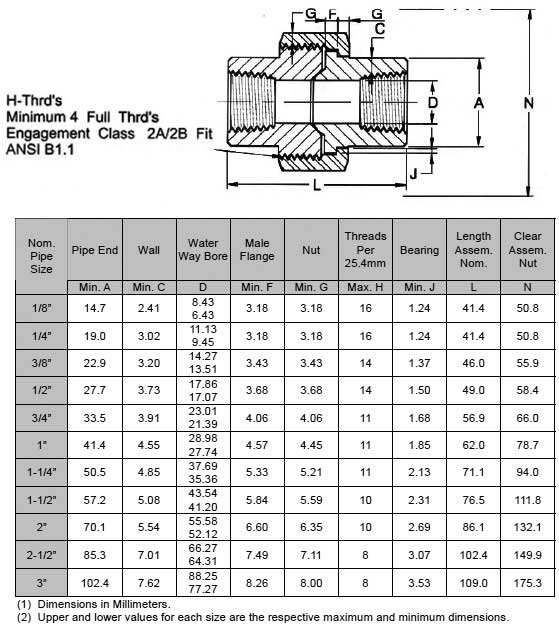

ANSI B16.11 Forged Threaded Union Weight Chart

ANSI B16.11 Forged Threaded Union Weight Chart

Stainless Steel Threaded Union, Forged Threaded Union exporter, ASME B16.11 Forged Threaded Union for NPT threaded connections, ANSI B16.11 Forged Threaded Union manufacturers. ASME B16.11 Threaded Union suppliers in India, BS3799 Screwed Forged Union wholesaler in Mumbai.

Manufacturing threaded fittings unions in India, Arrow Piping Solution holds a wide range of threaded pipe union fittings in all Thickness, stock for immediate despatch throughout India & globally.
