Threaded Street Elbow ASME B16.11 Manufacturer & Exporter in India

ANSI / ASME B16.11 45 Degree Threaded Elbow

Suppliers of Threaded Street Elbow , Stainless Steel Street Elbow manufacturer in India

Threaded Street Elbow ASME B16.11 Manufacturers in India

ANSI B16.11 Forged Threaded Street Elbow Suppliers in Mumbai

ASTM A182 SS Threaded Street Elbows Distributor

ASME B16.11 Brass Street Elbow wholesaler in Mumbai, Manufacturer of ANSI B16.11 Copper Street Elbow, Stainless Steel Reducing Street Elbow Price in India.

Table of Content

What is Threaded Street Elbow ASME B16.11 ?

ASME B16.11 45 Degree Threaded Elbow

Threaded Street Elbow Dimensions

45 Degree Threaded Elbow Dimensions

Threaded Reducing Tee Class 3000 Dimensions

NPS Center to Female End Center to Male End Outside Diameter of Band Minimum Wall Thickness Minimum Wall Thickness Minimum Length Internal Thread Minimum Length Male Thread
A C D G1 G2 B J1 J2
1/2 28 41 38 4.09 4.16 10.9 13.6 14
3/4 35 48 44 4.32 4.88 12.7 13.9 16
1 44 57 51 4.98 5.56 14.7 17.3 19
1¼ 51 66 62 5.28 5.56 17 18 21
1½ 54 71 70 5.56 6.25 17.8 18.4 21
2 64 84 84 7.14 7.64 19 19.2 22

Class 6000 Threaded Street Pipe Elbow Dimensions

NPS Center to Female End Center to Male End Outside Diameter of Band Minimum Wall Thickness Minimum Wall Thickness Minimum Length Internal Thread Minimum Length Male Thread
A C D G1 G2 B J1 J2
1/2 35 48 44 8.15 6.53 10.9 13.6 14
3/4 44 57 51 8.53 6.86 12.7 13.9 16
1 51 66 62 9.93 7.95 14.7 17.3 19
1¼ 54 71 70 10.59 8.48 17 18 21
1½ 64 84 84 11.07 8.89 17.8 18.4 21
2 83 105 102 12.09 9.70 19 19.2 22

ANSI B16.11 Forged Threaded Street Elbow Specification

Threaded Street Elbow Dimensions ASME 16.11, MSS SP-79, MSS SP-95, MSS SP-83, MSS SP-97, BS 3799
ASTM A182 SS Threaded Street Elbows Size 1/8" NB TO 4" NB
ANSI B16.11 Forged Threaded Street Elbow Class 3000 LBS, 6000 LBS, 4500 LBS
ASME B16.11 Forged Threaded Street Elbow Type Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Female Threaded Pipe Nipple Pressure Ratings Up to 20,000 psig (1,378 bar)
Close Threaded Pipe Nipple Temperature Ratings Up to 1000° F (537° C)
Types of Forged Threaded Pipe Nipple NPT, ISO/BSP, SAE Threads
Sizes Available 1/16 to 1 in.
Main Types Pipe Nipples, Adapter and Gaskets, Reducing Bushing and Reducers, Couplings, Elbows, Tees, Crosses, Union Ball Joints, Caps and Plugs
Stainless Steel Threaded Street Elbow Form Threaded Street Elbow, Forged Street Elbow
ASME B16.11 Threaded Street Elbow Value Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
90 Degree Threaded Street Elbow Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low Temperature Steel, Carbon Steel, Cupro Nickel

45 Degree NPT Elbow Types

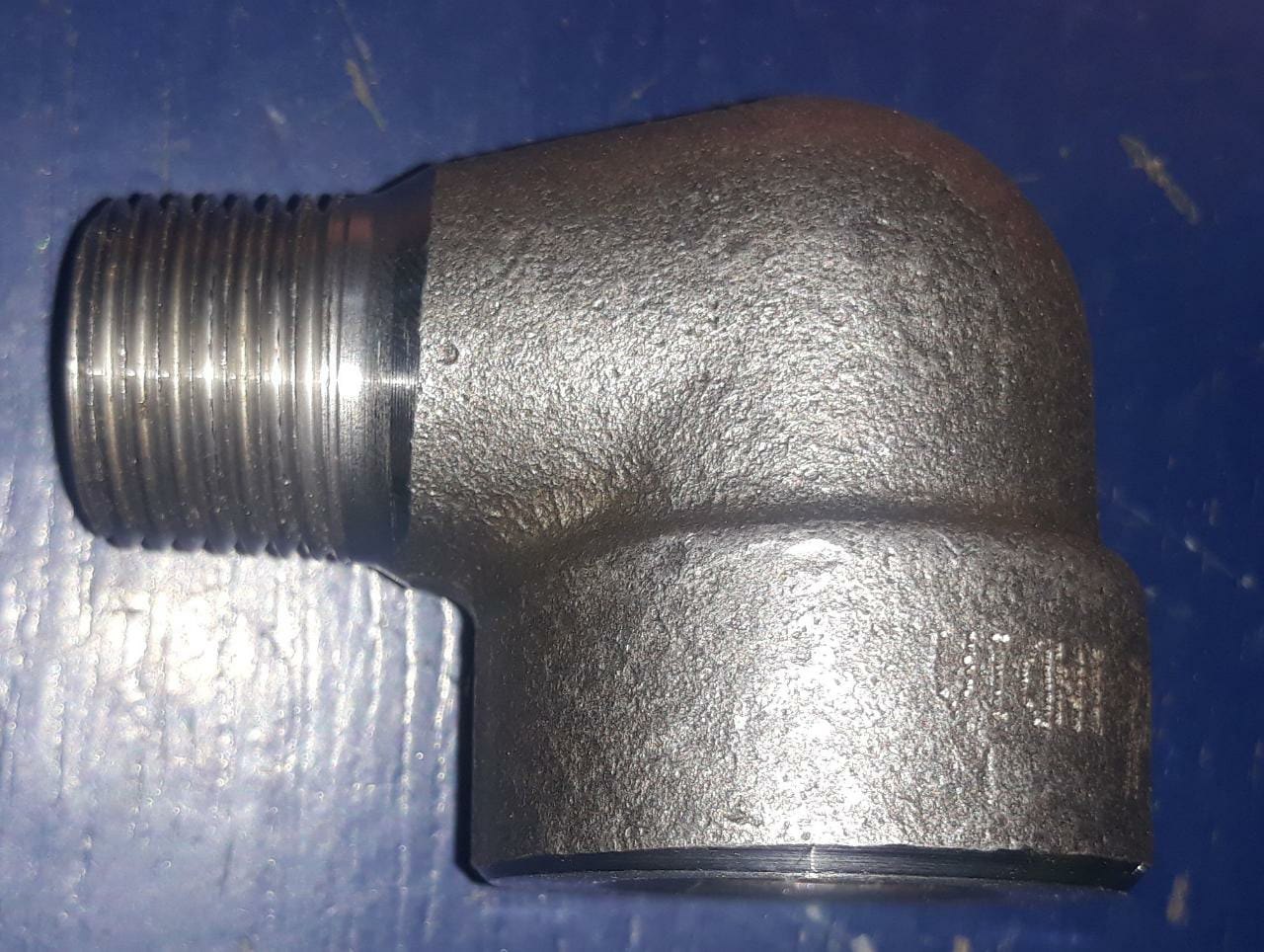

Class 3000 Threaded Brass Elbow

Class 3000 Elbow, Threaded Brass Elbow

Class 6000 NPT Threaded Elbow

Class 6000 Elbow, NPT Threaded Elbow

Class 9000 MS Threaded Elbow

Class 9000 Elbow, MS Threaded Elbow

B16.11 NPT 45 Degree Street Elbow

B16.11 NPT 45 Degree Street Elbow Brass

ASTM A105 45 Degree Threaded Elbow

ASTM A105 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

A182 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

ASTM A350 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

A182 Gr F304 Forged 45 Degree Threaded Elbow

ASME B16.11 Forged Threaded Street Elbow Material

Stainless Steel Reducing Street Elbow
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Carbon Steel Street Elbow
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Alloy Steel Forged Screwed Street Elbow
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Titanium Reducing Street Elbow
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
Inconel Gi Street Elbow
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel X750
Copper Street Elbow T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc.
Copper Nickel Forged Threaded Street Elbow Copper Nickel 90/10 (C70600) Threaded Street Elbow, Cupro Nickel 70/30 (C71500) Reducing Street Elbow, UNS C71640 Steel Pipe Street Elbow
Brass Steel Pipe Street Elbow 3602 / 2604 / H59 / H62 / etc.
Hastelloy C22 Screwed Street Elbow Hastelloy C276 (UNS N10276) Gi Street Elbow, C22 (UNS N06022) Screwed Street Elbow, C4 Threaded Street Pipe Elbow, C2000 90 Degree Threaded Street Elbow, B2 Forged Street Elbow, B3 Threaded Fittings Street Elbow, X Threaded Forged Street Elbow
Monel BS3799 Threaded Street Pipe Elbow Monel 400 (UNS No. N04400) Street Elbows, Monel 500 (UNS No. N05500) Street Elbows
Alloy 20 BS3799 Forged Street Elbow Carpenter® 20 Alloy Street Elbows, Alloy 20Cb-3 Street Elbows
Aluminium BS3799 Forged Threaded Street Elbow 5052 / 6061 / 6063 / 2017 / 7075 / etc.
Nickel Alloy 200 Reducing Street Elbow Nickel 200 Street Elbows, Nickel 201 Street Elbows
Duplex Steel Threaded Street Elbow S31803 / S32205 ASTM A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Steel Gi Street Elbow S32750 / S32760 ASTM A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Screwed Street Elbow Incoloy 800 Street Elbows, Incoloy 800H Street Elbows, Incoloy 800HT (UNS N08800) Street Elbows, Incoloy 825 (UNS N08825) Street Elbows
254 Smo Threaded Street Pipe Elbow SMO 254/6Mo Street Elbows, UNS S31254 Street Elbows, DIN 1.4547 Street Elbows
Nimonic 90 Degree Threaded Street Elbow Nimonic 75 Street Elbows, Nimonic 80A Street Elbows, Nimonic 90 Street Elbows
Other Street Elbow ASME B16.11 Material Tin Bronze Threaded Street Elbow, Aluminum Bronze Reducing Street Elbow, Lead Bronze Gi Street Elbow

ASTM A182 SS Threaded Street Elbows Price List

Threaded Street Pipe Elbow Price Per Piece in India Threaded Forged Street Elbow Price in INR Threaded Street Elbow ASME B16.11 Price in Saudi Riyal Street Elbow Brass Forged Price in UAE Dirham
45° ELBOW: 1/2 NPS, ASTM A105N, NPT (F) THRD (ASME B1.20.1), CL.6000#, NACE MR-0175/ISO 15156, ASME B16.11 Rs. 644.58 Saudi Riyal 33.76 UAE Dirham 33.06
45° ELBOW: 3/4 NPS, ASTM A105 N, NPT (F) THRD (ASME B1.20.1), CL.6000#, NACE MR-0175/ISO 15156, ASME B16.11 Rs. 819.34 Saudi Riyal 42.91 UAE Dirham 42.02
90° ELBOW: 2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV. TO A153, ASME B16.11 Rs. 916.74 Saudi Riyal 48.01 UAE Dirham 47.01
90° ELBOW: 1/2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV. TO A153, ASME B16.11 Rs. 1059.98 Saudi Riyal 55.51 UAE Dirham 54.36

CS Threaded Street Pipe Elbow, Stainless Steel Forged Street Elbow exporter, Stainless Steel Street Elbows suppliers in India. Smooth thread SS Screwed Street Elbow manufacturers. ASTM A182 SS Threaded Street Elbows stockist in Mumbai, India.

Manufacturing Screwed Forged Street Elbow in India, Arrow Piping Solution holds a wide range of Threaded Street Elbows in all Thickness, stock for immediate dispatch throughout India & globally.
