Threaded Fittings Manufacturer & Exporter in India
ASME B16.11 Stainless Steel Threaded Fittings

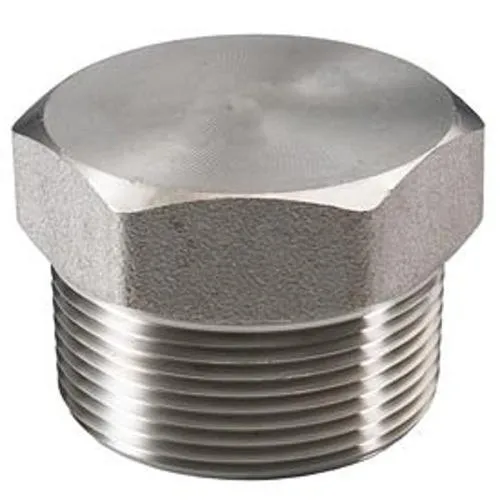

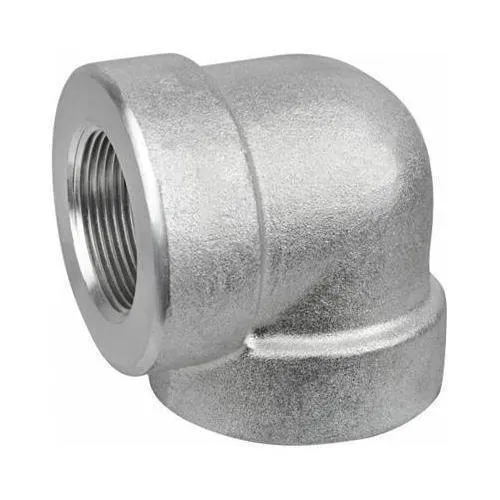

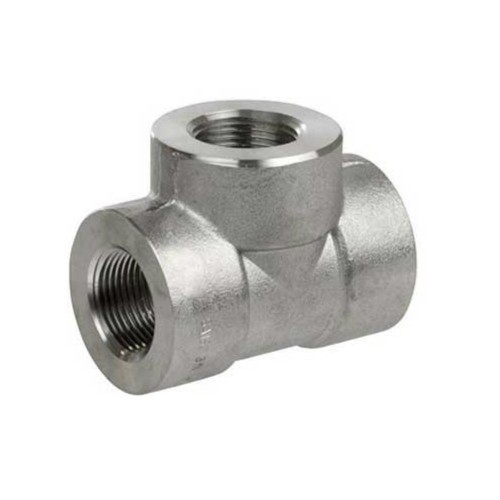

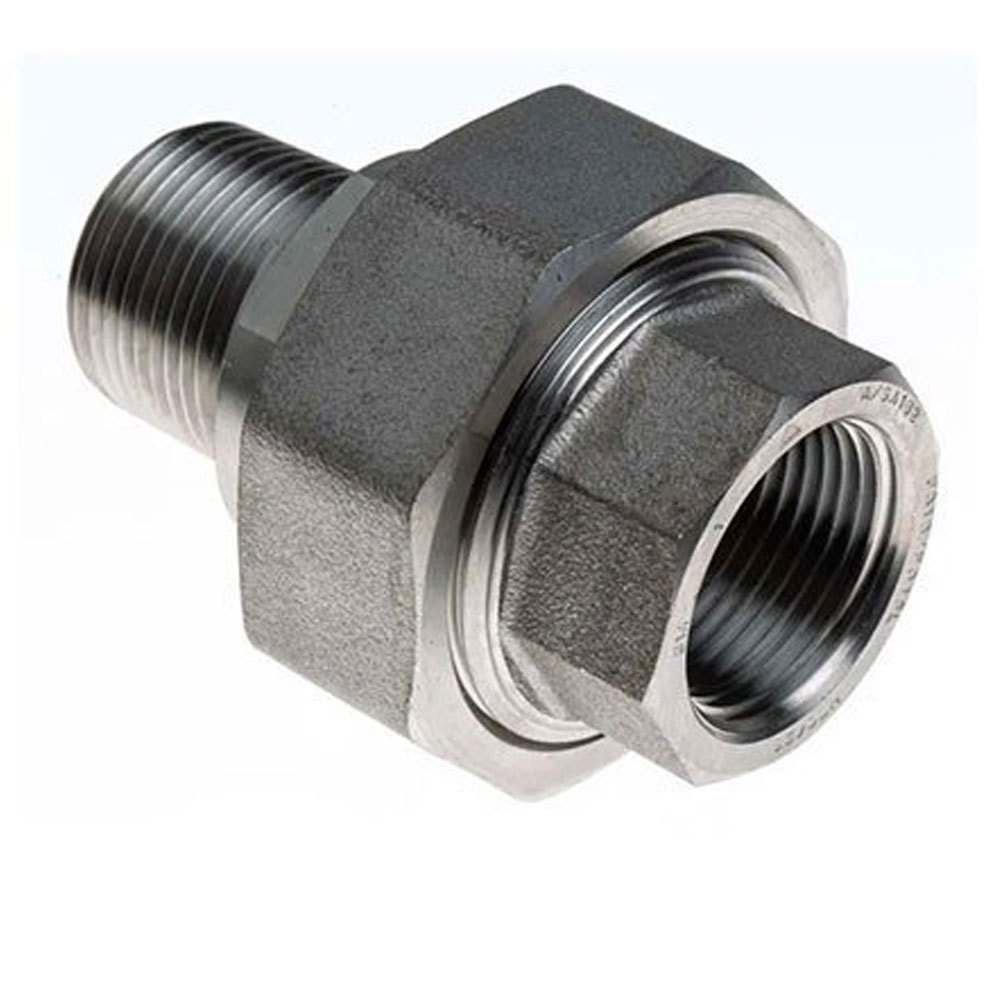

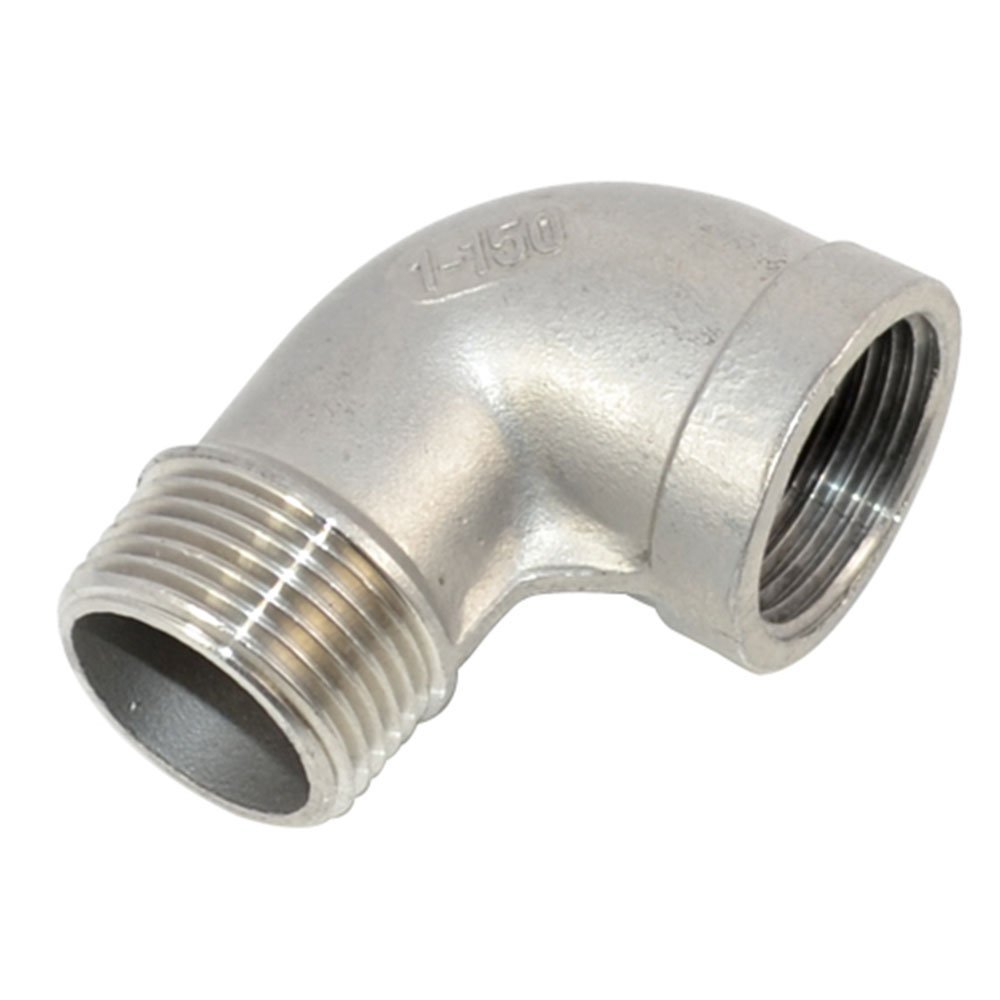

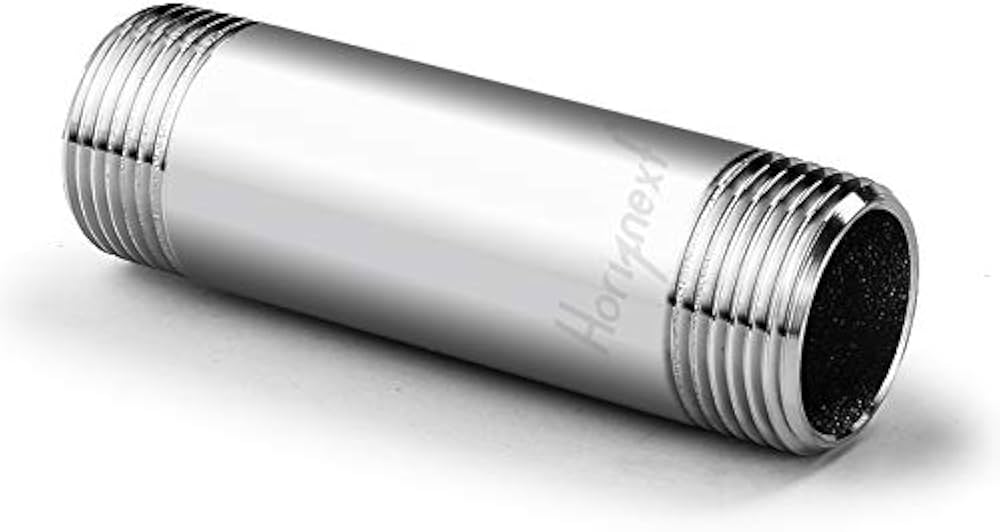

Arrow Piping Solutions is a trusted manufacturer, supplier, exporter and stockist of ASME B16.11 Threaded Fittings in India. We offer a complete range of threaded elbows, threaded tees, threaded couplings, threaded unions, threaded nipples, threaded plugs, threaded bushings and other forged threaded fittings in Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel and Super Duplex Steel grades.
Our threaded fittings are manufactured according to international standards and are widely used in oil & gas, petrochemical, power generation, chemical processing, water treatment and industrial piping systems.
ASME B16.11 Stainless Steel Threaded Fittings Manufacturers in India
Stockist of ASME B16.11 Threaded Fittings

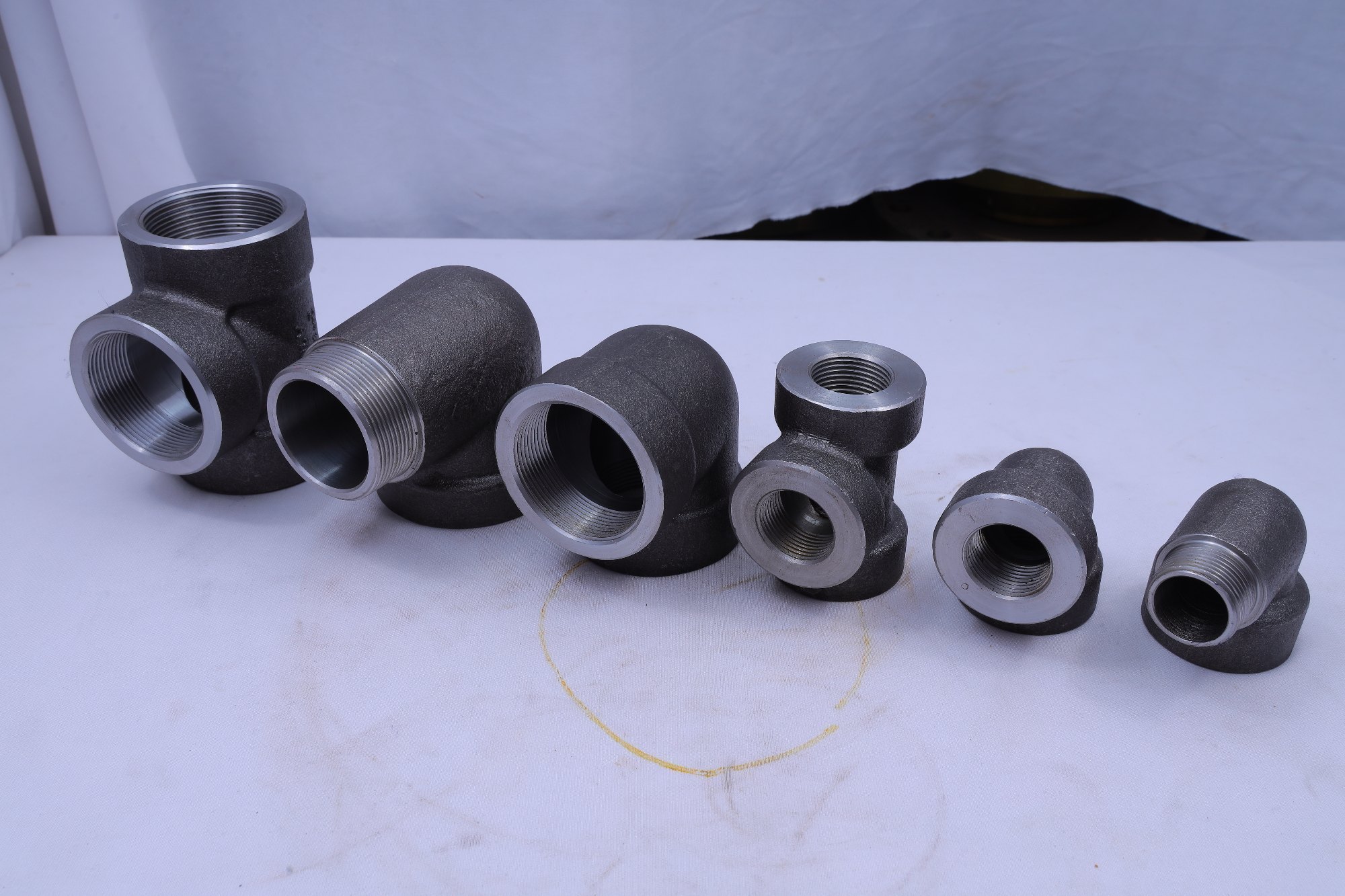

NPT Threaded Pipe Fittings Distributor in India
What is ASME B16.11 Stainless Steel Threaded Fittings?
ASME B16.11 Threaded Fittings Suppliers in India
Forged Threaded Fittings Specification
| Specifications | ASTM A182 & ASME SA182 |
| ASME B16.11 Stainless Steel Threaded Fittings Size | 1/8” NB to 4” NB (Screwed-Threaded) |
| ASME B16.11 Threaded Fittings Dimensions | ASME B16.11, MSS SP-79, SP-83, SP-95, SP-97, BS 3799 |
| Cast Iron Threaded Fittings | NPT, BSPT, BSPP |
| End Connection | Threaded, Welding, JIC |
| Threaded Fittings Pressure Rating | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Connection | Welding |
| Test Certificates |
100% Radiography Test Report EN 10204 / 3.1B Raw Material Certificate Third Party Inspection Report |
| Manufacturers |
BENKAN Corporation (Japan) Mega (Italy) Ulma (Spain) Erne Fittings (Austria) BKL Thai Benkan (Thailand) Melesi (Italy) TecnoForge (Italy) |
| Origin | West Europe / Japan / India / USA / Korea |
| Industrial Applications |
Nuclear Power Plants Petrochemical Industry Acid Processing Plants Bitumen Upgraders Oil Refineries |
Stainless Steel Threaded Fittings Manufacturing Standards
ASTM A182 / ASME SA182
Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings.
ASME B16.9
Factory-Made Wrought Buttwelding Fittings used in piping systems.
ASME B16.11
Forged Threaded and Socket Weld Fittings for high pressure applications.
MSS SP-43
Corrosion Resistant Wrought and Fabricated Butt-Welding Fittings.
MSS SP-95

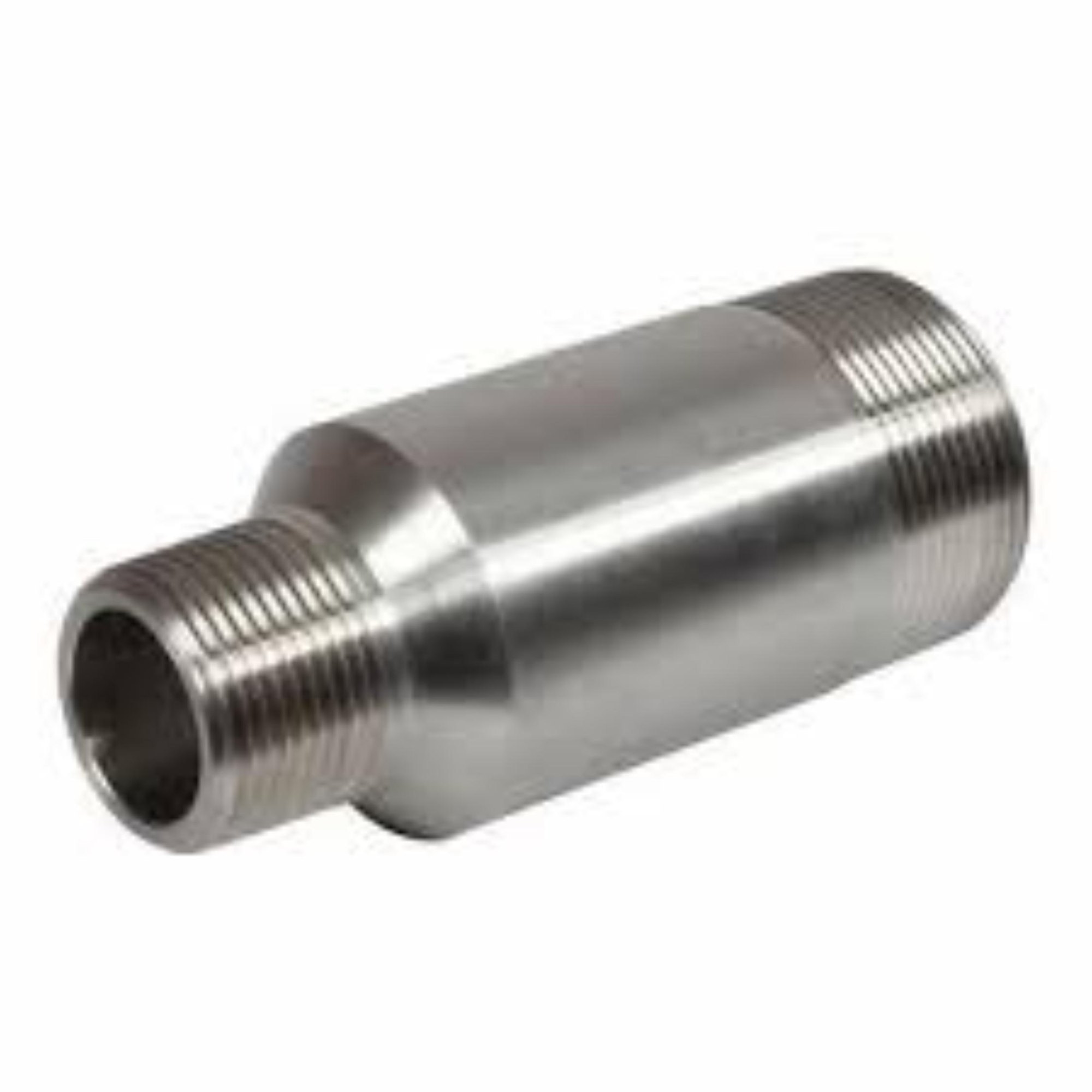

Swage Nipples and Bull Plugs used in threaded piping connections.
BS 3799
Steel Pipe Fittings, Screwed and Socket-Welding for Petroleum Industry.
NPT Threaded Pipe Fittings Material
ASME B16.11 Stainless Steel Threaded Fittings
Available Grades
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L.
- Material conforms to ASME A182 specification.
- Dimensions comply with ASME B16.11 standards.
- NPT Threads conform to ASME B1.20.1.
Forged Threaded Carbon Steel Fittings
Available Grades
ASTM A105, A350 LF2, ASTM A106 Grade B, A234 WPB and other forged carbon steel grades.
- Manufactured as per ASTM/ASME A105 requirements.
- Dimensions conform to ASME B16.11 standards.
- NPT Threads conform to ASME B1.20.1.

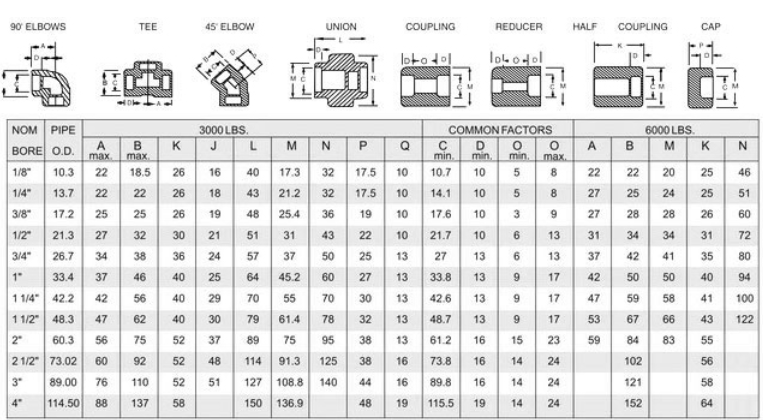

ASME B16.11 Threaded Fittings Class 3000 Dimensions
Arrow Piping Solutions supplies ASME B16.11 Threaded Fittings manufactured in accordance with international standards. Below is the dimensional reference chart for Class 3000 threaded fittings including elbows, tees, unions, couplings, reducers, half couplings and caps.
ASME B16.11 Threaded Fittings Weight Chart
| Size | A | B | Qty | Weight |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⅜ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.50 | 75 | 0.71 |
| 1 | 1.50 | 1.81 | 40 | 1.08 |
| 1¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
Stainless Steel Threaded Fittings Size Chart
| NPS | Minimum Length of Thread | Outside Diameter of Band (D) | Center to End (A) | Minimum Wall Thickness | |
|---|---|---|---|---|---|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1¼ | 17 | 18 | 56 | 44 | 3.89 |
| 1½ | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2½ | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
ASME B16.11 Threaded Fittings Price List
| Product Description | NPT Threaded Fittings Price (INR) | Cast Iron Threaded Fittings Price (Saudi Riyal) | Forged Threaded Fittings Price (UAE Dirham) |
|---|---|---|---|
| EQ. STRAIGHT TEE - 1-1/2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV. TO A153, ASME B16.11 | ₹ 689.60 | SAR 36.01 | AED 35.26 |

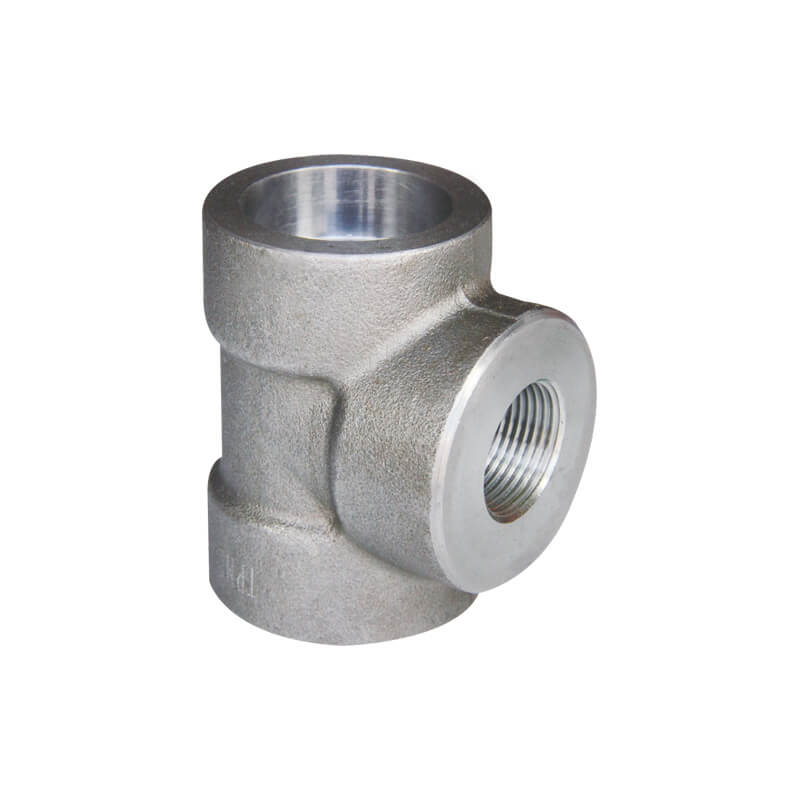

| RED. STRAIGHT TEE - 1 X 1/2 NPS, ASTM A105, NPT (F) THRD, CL3000#, GALV. TO A153 | ₹ 581.85 | SAR 30.38 | AED 29.75 |
| 90° ELBOW - 1/2 NPS, ASTM A105, NPT (F) THRD, CL3000#, GALV. TO A153 | ₹ 466.92 | SAR 24.38 | AED 23.87 |
| CAP - 1/2 NPS, CAP, THRD, NPT-F (ASME B1.20.1), CL3000#, A105N | ₹ 933.84 | SAR 48.76 | AED 47.75 |
ASME B16.11 Fittings, NPT Threaded Pipe Fittings stockholder, Carbon Steel Forged Threaded Pipe Fittings suppliers in India. BS 3799 Duplex Stainless Steel NPT Pipe Fittings manufacturers and NPT 3000 lbs Threaded Adaptors Fittings wholesaler in Mumbai.
Arrow Piping Solutions maintains a wide range of Threaded Galvanised Fittings in various thicknesses and specifications, ensuring ready stock availability for immediate dispatch across India and global export markets.
