EN 1092-1 Flange - PN2.5, PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, And PN400

EN 1092-1 Flanges are standardized flanges designed to meet the European Norm (EN) specifications for piping systems. The EN 1092-1 standard covers a variety of flange types, such as weld neck flanges, slip-on flanges, blind flanges, plate flanges, and threaded flanges, catering to pressure ratings ranging from PN6 to PN100. These EN 1092-1 flanges are manufactured from high-quality materials like carbon steel, stainless steel, alloy steel, and duplex steel, ensuring excellent strength, durability, and resistance to corrosion. EN 1092-1 flanges are known for their precision, reliability, and compatibility with European and global piping systems. Their versatility in handling both low and high-pressure applications makes them a preferred choice for seamless pipe connections in critical industries.

Arrow Piping Solutions is a trusted and leading manufacturer, supplier, and exporter of EN 1092-1 Flanges, delivering top-quality products that meet the highest industry standards. With years of experience and expertise, Arrow Piping Solutions specializes in producing a wide range of EN 1092-1 flanges, including weld neck flanges, slip-on flanges, blind flanges, plate flanges, and threaded flanges, designed for pressure ratings from PN6 to PN100. At Arrow Piping Solutions, quality is a priority. Advanced manufacturing facilities, cutting-edge technology, and rigorous quality control processes guarantee precise dimensions, durability, and excellent performance of the flanges.

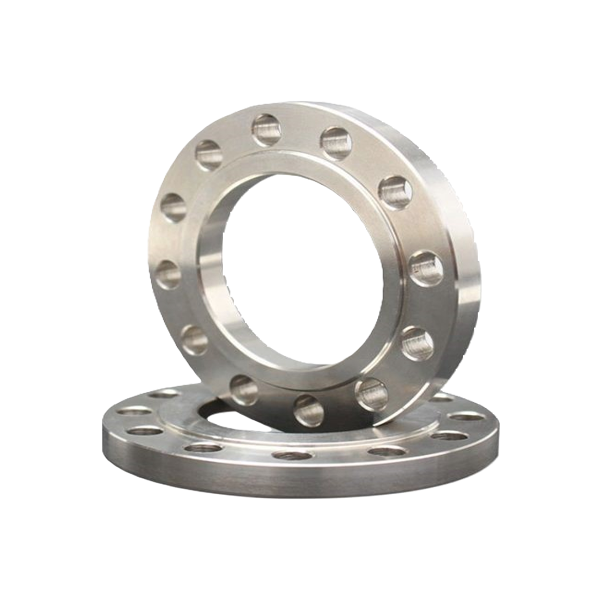

Long Weld Neck Flange

EN 1092-1 Flange, EN 1092-1 Slip-On Flange, EN 1092-1 Weld Neck Flange, EN 1092-1 Blind Flange, EN 1092-1 Plate Flange, EN 1092-1 Threaded Flange, EN 1092-1 Standardized Flanges, Stainless Steel EN 1092-1 Flanges, Alloy Steel EN 1092-1 Flanges

EN 1092-1 Type 02 Flange Specifications

SIZE RANGE

15mm (1/2" NPS ) up to 600mm ( 24" NPS ), For 2500# in sizes from NPS 1/2 to NPS 12

STANDARDS / DIMENSION

ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN

PRESSURE CLASS

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64.

FLANGE FACE TYPE

FF—Flat Face, RF—Raised Face, FM—Female Face, M—Male Face, T—Tongue Face, G—Groove Face, RJ—Ring Joint.

CARBON STEEL

ASTM A105/A105N (SA105N), LTCS A350 LF2, A694

DUPLEX & SUPER DUPLEX

ASTM A182 / ASME SA182 - S31803, S32205, 2205, S32750, S32760, S32950, 2507.

STAINLESS STEEL

ASTM A182 F304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.

ALLOY STEEL

ASTM A182 / SA182 - F1 / F5 / F9 / F11 / F12 / F22 / F91

MTC

EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103

Flanges ANSI/ASME B16.5 & B16.47
worker

ISO CERTIFIED MANUFACTURER

Our worldwide presence ensures the timeliness, cost efficiency compliance adherence required to ensure your production timelines.

→ Free And Quick Quote

DOWNLOAD

Company Report 2019
PDF
Company Brochure
PDF

Materials

➜
Stainless Steel ➜ Carbon Steel ➜ Alloy Steel ➜

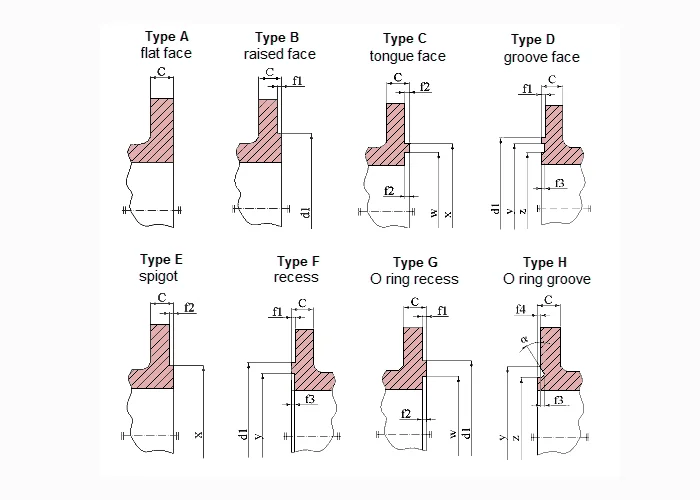

Weld Neck Flange Diagram

EN 1092-1 - DIMENSIONS & WEIGHT

+
DN PN f1 f2 f3 f4 w x y z
2.5 6 10 16 25 40 63 100 160 250 320 400
d1
10 35 35 40 40 40 40 40 40 40 40 40 40 2 4.5 4 2 24 34 35 23
15 40 40 45 45 45 45 45 45 45 45 45 45 29 39 40 28
20 50 50 58 58 58 58 58 58 58 58 58 58 36 50 51 35
25 60 60 68 68 68 68 68 68 68 68 68 68 43 57 58 42
32 70 70 78 78 78 78 78 78 78 78 78 78 51 65 66 50
40 80 80 88 88 88 88 88 88 88 88 88 88 3 61 75 76 60
50 90 90 102 102 102 102 102 102 102 102 102 102 73 87 88 72
65 110 110 122 122 122 122 122 122 122 122 122 122 95 109 110 94
80 128 128 138 138 138 138 138 138 138 138 138 138 106 120 121 105
100 148 148 158 158 162 162 162 162 162 162 162 162 5 4.5 2.5 129 149 150 128
125 178 178 188 188 188 188 188 188 188 188 188 188 155 175 176 154
150 202 202 212 212 218 218 218 218 218 218 218 218 183 203 204 182
200 258 258 268 268 278 285 285 285 285 285 285 285 239 259 260 238
250 312 312 320 320 335 345 345 345 345 345 345 – 292 312 313 291

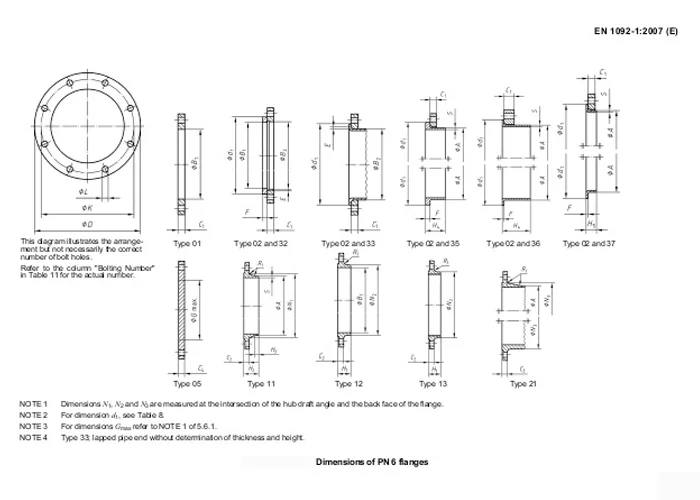

EN 1092-1 TYPE 01 FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

1. SURFACE FINISH FACING TYPES A, B1, B2 etc

2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN6 / P245GH / HEAT NUMBER

EN 1092-1 TYPE 01 PN6 PLATE FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 01 PN 10 PLATE FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 01 PN 16 PLATE FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 01 PN 25 PLATE FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 01 PN 40 PLATE FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 02 FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 02 PN16 LOOSE FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 05 FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 05 PN6 BLIND FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 01 PN25 PLATE FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 01 PN16 BLIND FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 11 FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 11 PN10 WNRF FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 11 PN16 WNRF FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 11 PN25 WNRF FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 11 PN40 WNRF FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 TYPE 13 FLANGE - DIMENSIONS & WEIGHT

+
Rated Diameter Pipe Flange Screws Weight
(7,85 Kg/dm3)
KG
d1 k D b d2 Thread Bolt holes
15 21,3 22,0 55 80 12 11 M10 4 0,401
20 26,9 27,5 65 90 14 11 M10 4 0,590
25 33,7 34,5 75 100 14 11 M10 4 0,716
32 42,4 43,5 90 120 16 14 M12 4 1,153
40 48,3 49,5 100 130 16 14 M12 4 1,344
50 60,3 61,5 110 140 16 14 M12 4 1,478
65 76,1 77,5 130 160 16 14 M12 4 1,850
80 88,9 90,5 150 190 18 18 M16 4 2,944
100 114,3 116,0 170 210 18 18 M16 4 3,247
125 139,7 141,5 200 240 20 18 M16 8 4,301
150 168,3 170,5 225 265 20 18 M16 8 4,741
200 219,1 221,5 280 320 22 18 M16 8 6,862
250 273,0 276,5 335 375 24 18 M16 12 8,893
300 323,9 327,5 395 440 24 22 M20 12 11,880
350 355,6 359,5 445 490 26 22 M20 12 16,788
400 406,4 411,0 495 540 28 22 M20 16 19,781
450 457,0 462,0 550 595 30 22 M20 16 24,495
500 508,0 513,5 600 645 30 22 M20 20 26,307
600 610,0 616,5 705 755 32 26 M24 20 34,702
700 711,0 714,2 810 860 40 26 M24 24 52,441
800 813,0 815,8 920 975 44 30 M27 24 71,262
900 914,0 917,4 1020 1075 48 30 M27 24 86,269
1000 1016,0 1019,0 1120 1175 52 30 M27 28 101,340
1200 1220,0 1224,0 1340 1405 60 33 M30 32 162,638
1400 1420,0 1424,0 1560 1630 72 36 M33 36 257,772
1600 1620,0 1624,0 1760 1830 80 36 M33 40 324,382

EN 1092-1 Flange Standards

EN 1092-1 is a European standard for flanges, widely used in various industries. This standard specifies requirements for circular steel flanges, providing details on dimensions, tolerances, pressure ratings, and materials. It is commonly used in piping systems for industrial applications.

1. EN 1092-1 – Steel Flanges.

2. EN 1092-2 – Cast Iron Flanges.

3. EN 1092-3 – Copper Alloy Flanges.

4. EN 1092-4 – Aluminium Alloy Flanges.

5. EN 1092-5 – Titanium and Nickel Alloy Flanges.

6. EN 1759-1 – Steel Flanges (Class Designations).

7. EN 1759-3 – Copper Alloy Flanges (Class Designations).

8. EN 1759-4 – Aluminium Alloy Flanges (Class Designations).

9. EN 1514-1 – Gasket Dimensions for Flanges (Type I – Non-Metallic).

10. EN 1514-2 – Gasket Dimensions for Flanges (Type II – Spiral Wound).

WHY Arrow Piping Solutions For EN 1092-1 Flanges!

Choosing Arrow Piping Solutions ensures superior quality, timely delivery, and technical excellence for all your EN 1092-1 flange needs.

Global Certifications

Products come with certifications such as EN 10204 3.1/3.2, ensuring compliance with international quality standards.

Custom Solutions

Ability to provide customized flange solutions tailored to specific project requirements. Specialized in manufacturing non-standard and large-diameter flanges on demand.

Fast Delivery and Reliable Service

Maintains a vast inventory of standard EN 1092-1 flanges for immediate dispatch. Excellent customer support and reliable logistics ensure on-time delivery globally.

Experienced Team

Over decades of experience in the piping and flange industry, ensuring technical expertise and professional guidance.

What are the types of flanges covered under EN 1092-1?

−

Type 01: Weld neck flanges.

Type 02: Slip-on plate flanges.

Type 05: Blind flanges.

Type 11: Hubbed slip-on flanges.

Type 12: Hubbed threaded flanges.

Type 13: Hubbed socket weld flanges.

Type 21: Integral flanges.

Are gaskets specified in EN 1092-1?

+

Yes, EN 1092-1 specifies gasket types and dimensions to ensure proper sealing between the flanges. Common gasket types include:

Spiral wound gaskets

Ring joint gaskets

Non-metallic gaskets

What is the difference between EN 1092-1 and EN 1759-1?

+

EN 1092-1: Used for PN-rated flanges in bar units (metric system).

EN 1759-1: Used for Class-rated flanges in psi units (imperial system).

AVAILABLE TYPES OF FLANGES

TONGUE AND GROOVE FLANGES

MALE AND FEMALE FLANGES

WELD NECK FLANGES

BLIND FLANGES

Orifice Flange

Socket Weld Flange / SWRF Flange
