Ring Type Joint Flange

Home / Ring Type Joint

ASME B16.5 & ASME B16.47 Series A/B RTJ Flange Manufacturer, Supplier & Exporter

Ring Type Joint (RTJ) Flanges are specially designed for high-pressure and high-temperature piping systems where superior sealing performance is required. These flanges feature a precision-machined groove that accommodates a metallic ring gasket, creating a highly reliable and leak-tight connection when bolted together. RTJ Flanges are extensively used in industries such as oil & gas, petrochemicals, refineries, offshore platforms, and power generation, where operational safety and performance are critical. Manufactured according to ASME B16.5 and ASME B16.47 Series A & Series B standards, these flanges are available in a wide range of sizes, pressure classes, and material grades.

The unique sealing mechanism of RTJ Flanges makes them highly effective in extreme operating conditions involving elevated pressures, temperatures, and corrosive environments. Available in Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, and other specialty alloys, these flanges offer exceptional mechanical strength, corrosion resistance, and long service life. Their robust construction ensures dependable performance in demanding industrial applications where conventional flange connections may not provide adequate sealing.

Arrow Piping Solutions is a trusted manufacturer, supplier, and exporter of premium-quality RTJ Flanges engineered to meet international quality and performance standards. Our RTJ Flanges are manufactured using advanced production techniques and undergo strict quality inspections to ensure dimensional accuracy, durability, and reliable sealing performance. We offer customized solutions in various materials, sizes, and pressure ratings to suit specific project requirements. With competitive pricing, timely delivery, and a customer-focused approach, Arrow Piping Solutions provides dependable flange solutions for industries worldwide.

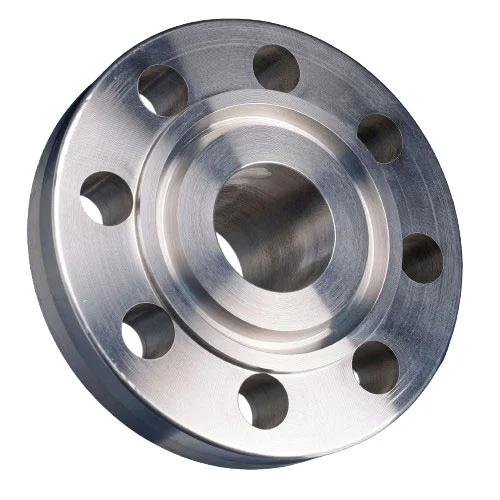

Ring Type Joint Flange

ASME/ANSI B16.5 RTJ Flange

SIZE RANGE

15mm (1/2" NPS ) up to 600mm ( 24" NPS ), For 2500# in sizes from NPS 1/2 to NPS 12

STANDARDS / DIMENSION

ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN

PRESSURE CLASS

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64.

FLANGE FACE TYPE

FF—Flat Face, RF—Raised Face, FM—Female Face, M—Male Face, T—Tongue Face, G—Groove Face, RJ—Ring Joint.

CARBON STEEL

ASTM A105/A105N (SA105N), LTCS A350 LF2, A694

DUPLEX & SUPER DUPLEX

ASTM A182 / ASME SA182 - S31803, S32205, 2205, S32750, S32760, S32950, 2507.

STAINLESS STEEL

ASTM A182 F304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.

ALLOY STEEL

ASTM A182 / SA182 - F1 / F5 / F9 / F11 / F12 / F22 / F91

MTC

EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103

Flanges ANSI/ASME B16.5 & B16.47
worker

ISO CERTIFIED MANUFACTURER

Our worldwide presence ensures the timeliness, cost efficiency compliance adherence required to ensure your production timelines.

→ Free And Quick Quote

DOWNLOAD

Company Report 2019
PDF
Company Brochure
PDF

Materials

➜
Stainless Steel ➜ Carbon Steel ➜ Alloy Steel ➜
Weld Neck Flange Diagram

ASME B16.5 WELD NECK RTJ FLANGE - (CLASS 150) - DIMENSIONS & WEIGHT

+
Size in Inch Size in mm Outer Dia. (A) Flange Thickness (B) Hub OD (C) Weld Neck OD (D) Welding Neck Length (E) RTJ RF Dia (F) RTJ RF Height (G) PCD (H) RTJ Pitch Dia (I) RTJ Depth (J) RTJ Width (K)
1/2 15 95 12.7 38 21.3 51 51 5.54 66.7 34.14 5.54 7.14
3/4 20 115 14.3 48 26.7 56 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 15.9 54 33.4 60 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 17.5 64 42.2 64 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 19.1 70 48.3 67 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 20.7 84 60.3 68 108 7.92 127 82.55 7.92 11.91
2 1/2 65 190 23.9 100 73 75 127 7.92 149.2 101.6 7.92 11.91
3 80 210 27 117 88.9 78 146 7.92 168.3 123.83 7.92 11.91
3 1/2 90 230 28.6 133 101.6 79 159 7.92 184.2 131.78 7.92 11.91
4 100 255 30.2 146 114.3 84 175 7.92 200 149.23 7.92 11.91
5 125 280 33.4 178 141.3 97 210 7.92 235 180.98 7.92 11.91
6 150 320 35 206 168.3 97 241 7.92 269.9 211.12 7.92 11.91
8 200 380 39.7 260 219.1 110 302 7.92 330.2 269.88 7.92 11.91
10 250 445 46.1 321 273 116 356 7.92 387.4 323.85 7.92 11.91
12 300 520 49.3 375 323.8 129 413 7.92 450.8 381 7.92 11.91
14 350 585 52.4 425 355.6 141 457 7.92 514.4 419.1 7.92 11.91
16 400 650 55.6 483 406.4 144 508 7.92 571.5 469.9 7.92 11.91
18 450 710 58.8 533 457 157 575 7.92 628.6 533.4 7.92 11.91
20 500 775 62 587 508 160 635 9.53 685.8 584.2 9.53 13.49
24 600 915 68.3 702 610 167 749 11.13 812.8 692.15 11.13 16.66

ASME B16.5 WELD NECK RTJ FLANGE - (CLASS 300) - DIMENSIONS & WEIGHT

+
Size in Inch Size in mm Outer Dia. (A) Flange Thickness (B) Hub OD (C) Weld Neck OD (D) Welding Neck Length (E) RTJ RF Dia (F) RTJ RF Height (G) PCD (H) RTJ Pitch Dia (I) RTJ Depth (J) RTJ Width (K)
1/2 15 95 12.7 38 21.3 51 51 5.54 66.7 34.14 5.54 7.14
3/4 20 115 14.3 48 26.7 56 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 15.9 54 33.4 60 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 17.5 64 42.2 64 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 19.1 70 48.3 67 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 20.7 84 60.3 68 108 7.92 127 82.55 7.92 11.91
2 1/2 65 190 23.9 100 73 75 127 7.92 149.2 101.6 7.92 11.91
3 80 210 27 117 88.9 78 146 7.92 168.3 123.83 7.92 11.91
3 1/2 90 230 28.6 133 101.6 79 159 7.92 184.2 131.78 7.92 11.91
4 100 255 30.2 146 114.3 84 175 7.92 200 149.23 7.92 11.91
5 125 280 33.4 178 141.3 97 210 7.92 235 180.98 7.92 11.91
6 150 320 35 206 168.3 97 241 7.92 269.9 211.12 7.92 11.91
8 200 380 39.7 260 219.1 110 302 7.92 330.2 269.88 7.92 11.91
10 250 445 46.1 321 273 116 356 7.92 387.4 323.85 7.92 11.91
12 300 520 49.3 375 323.8 129 413 7.92 450.8 381 7.92 11.91
14 350 585 52.4 425 355.6 141 457 7.92 514.4 419.1 7.92 11.91
16 400 650 55.6 483 406.4 144 508 7.92 571.5 469.9 7.92 11.91
18 450 710 58.8 533 457 157 575 7.92 628.6 533.4 7.92 11.91
20 500 775 62 587 508 160 635 9.53 685.8 584.2 9.53 13.49
24 600 915 68.3 702 610 167 749 11.13 812.8 692.15 11.13 16.66

ASME B16.5 WELD NECK RTJ FLANGE - (CLASS 400) - DIMENSIONS & WEIGHT

+
Size in Inch Size in mm Outer Dia. (A) Flange Thickness (B) Hub OD (C) Weld Neck OD (D) Welding Neck Length (E) RTJ RF Dia (F) RTJ RF Height (G) PCD (H) RTJ Pitch Dia (I) RTJ Depth (J) RTJ Width (K)
1/2 15 95 12.7 38 21.3 51 51 5.54 66.7 34.14 5.54 7.14
3/4 20 115 14.3 48 26.7 56 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 15.9 54 33.4 60 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 17.5 64 42.2 64 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 19.1 70 48.3 67 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 20.7 84 60.3 68 108 7.92 127 82.55 7.92 11.91
2 1/2 65 190 23.9 100 73 75 127 7.92 149.2 101.6 7.92 11.91
3 80 210 27 117 88.9 78 146 7.92 168.3 123.83 7.92 11.91
3 1/2 90 230 28.6 133 101.6 79 159 7.92 184.2 131.78 7.92 11.91
4 100 255 30.2 146 114.3 84 175 7.92 200 149.23 7.92 11.91
5 125 280 33.4 178 141.3 97 210 7.92 235 180.98 7.92 11.91
6 150 320 35 206 168.3 97 241 7.92 269.9 211.12 7.92 11.91
8 200 380 39.7 260 219.1 110 302 7.92 330.2 269.88 7.92 11.91
10 250 445 46.1 321 273 116 356 7.92 387.4 323.85 7.92 11.91
12 300 520 49.3 375 323.8 129 413 7.92 450.8 381 7.92 11.91
14 350 585 52.4 425 355.6 141 457 7.92 514.4 419.1 7.92 11.91
16 400 650 55.6 483 406.4 144 508 7.92 571.5 469.9 7.92 11.91
18 450 710 58.8 533 457 157 575 7.92 628.6 533.4 7.92 11.91
20 500 775 62 587 508 160 635 9.53 685.8 584.2 9.53 13.49
24 600 915 68.3 702 610 167 749 11.13 812.8 692.15 11.13 16.66

ASME B16.5 WELD NECK RTJ FLANGE - (CLASS 600) - DIMENSIONS & WEIGHT

+
Size in Inch Size in mm Outer Dia. (A) Flange Thickness (B) Hub OD (C) Weld Neck OD (D) Welding Neck Length (E) RTJ RF Dia (F) RTJ RF Height (G) PCD (H) RTJ Pitch Dia (I) RTJ Depth (J) RTJ Width (K)
1/2 15 95 12.7 38 21.3 51 51 5.54 66.7 34.14 5.54 7.14
3/4 20 115 14.3 48 26.7 56 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 15.9 54 33.4 60 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 17.5 64 42.2 64 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 19.1 70 48.3 67 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 20.7 84 60.3 68 108 7.92 127 82.55 7.92 11.91
2 1/2 65 190 23.9 100 73 75 127 7.92 149.2 101.6 7.92 11.91
3 80 210 27 117 88.9 78 146 7.92 168.3 123.83 7.92 11.91
3 1/2 90 230 28.6 133 101.6 79 159 7.92 184.2 131.78 7.92 11.91
4 100 255 30.2 146 114.3 84 175 7.92 200 149.23 7.92 11.91
5 125 280 33.4 178 141.3 97 210 7.92 235 180.98 7.92 11.91
6 150 320 35 206 168.3 97 241 7.92 269.9 211.12 7.92 11.91
8 200 380 39.7 260 219.1 110 302 7.92 330.2 269.88 7.92 11.91
10 250 445 46.1 321 273 116 356 7.92 387.4 323.85 7.92 11.91
12 300 520 49.3 375 323.8 129 413 7.92 450.8 381 7.92 11.91
14 350 585 52.4 425 355.6 141 457 7.92 514.4 419.1 7.92 11.91
16 400 650 55.6 483 406.4 144 508 7.92 571.5 469.9 7.92 11.91
18 450 710 58.8 533 457 157 575 7.92 628.6 533.4 7.92 11.91
20 500 775 62 587 508 160 635 9.53 685.8 584.2 9.53 13.49
24 600 915 68.3 702 610 167 749 11.13 812.8 692.15 11.13 16.66

ASME B16.5 WELD NECK RTJ FLANGE - (CLASS 900) - DIMENSIONS & WEIGHT

+
Size in Inch Size in mm Outer Dia. (A) Flange Thickness (B) Hub OD (C) Weld Neck OD (D) Welding Neck Length (E) RTJ RF Dia (F) RTJ RF Height (G) PCD (H) RTJ Pitch Dia (I) RTJ Depth (J) RTJ Width (K)
1/2 15 95 12.7 38 21.3 51 51 5.54 66.7 34.14 5.54 7.14
3/4 20 115 14.3 48 26.7 56 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 15.9 54 33.4 60 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 17.5 64 42.2 64 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 19.1 70 48.3 67 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 20.7 84 60.3 68 108 7.92 127 82.55 7.92 11.91
2 1/2 65 190 23.9 100 73 75 127 7.92 149.2 101.6 7.92 11.91
3 80 210 27 117 88.9 78 146 7.92 168.3 123.83 7.92 11.91
3 1/2 90 230 28.6 133 101.6 79 159 7.92 184.2 131.78 7.92 11.91
4 100 255 30.2 146 114.3 84 175 7.92 200 149.23 7.92 11.91
5 125 280 33.4 178 141.3 97 210 7.92 235 180.98 7.92 11.91
6 150 320 35 206 168.3 97 241 7.92 269.9 211.12 7.92 11.91
8 200 380 39.7 260 219.1 110 302 7.92 330.2 269.88 7.92 11.91
10 250 445 46.1 321 273 116 356 7.92 387.4 323.85 7.92 11.91
12 300 520 49.3 375 323.8 129 413 7.92 450.8 381 7.92 11.91
14 350 585 52.4 425 355.6 141 457 7.92 514.4 419.1 7.92 11.91
16 400 650 55.6 483 406.4 144 508 7.92 571.5 469.9 7.92 11.91
18 450 710 58.8 533 457 157 575 7.92 628.6 533.4 7.92 11.91
20 500 775 62 587 508 160 635 9.53 685.8 584.2 9.53 13.49
24 600 915 68.3 702 610 167 749 11.13 812.8 692.15 11.13 16.66

ASME B16.5 WELD NECK RTJ FLANGE - (CLASS 1500) - DIMENSIONS & WEIGHT

+
Size in Inch Size in mm Outer Dia. (A) Flange Thickness (B) Hub OD (C) Weld Neck OD (D) Welding Neck Length (E) RTJ RF Dia (F) RTJ RF Height (G) PCD (H) RTJ Pitch Dia (I) RTJ Depth (J) RTJ Width (K)
1/2 15 95 12.7 38 21.3 51 51 5.54 66.7 34.14 5.54 7.14
3/4 20 115 14.3 48 26.7 56 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 15.9 54 33.4 60 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 17.5 64 42.2 64 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 19.1 70 48.3 67 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 20.7 84 60.3 68 108 7.92 127 82.55 7.92 11.91
2 1/2 65 190 23.9 100 73 75 127 7.92 149.2 101.6 7.92 11.91
3 80 210 27 117 88.9 78 146 7.92 168.3 123.83 7.92 11.91
3 1/2 90 230 28.6 133 101.6 79 159 7.92 184.2 131.78 7.92 11.91
4 100 255 30.2 146 114.3 84 175 7.92 200 149.23 7.92 11.91
5 125 280 33.4 178 141.3 97 210 7.92 235 180.98 7.92 11.91
6 150 320 35 206 168.3 97 241 7.92 269.9 211.12 7.92 11.91
8 200 380 39.7 260 219.1 110 302 7.92 330.2 269.88 7.92 11.91
10 250 445 46.1 321 273 116 356 7.92 387.4 323.85 7.92 11.91
12 300 520 49.3 375 323.8 129 413 7.92 450.8 381 7.92 11.91
14 350 585 52.4 425 355.6 141 457 7.92 514.4 419.1 7.92 11.91
16 400 650 55.6 483 406.4 144 508 7.92 571.5 469.9 7.92 11.91
18 450 710 58.8 533 457 157 575 7.92 628.6 533.4 7.92 11.91
20 500 775 62 587 508 160 635 9.53 685.8 584.2 9.53 13.49
24 600 915 68.3 702 610 167 749 11.13 812.8 692.15 11.13 16.66

ASME B16.5 WELD NECK RTJ FLANGE - (CLASS 2500) - DIMENSIONS & WEIGHT

+
Size in Inch Size in mm Outer Dia. (A) Flange Thickness (B) Hub OD (C) Weld Neck OD (D) Welding Neck Length (E) RTJ RF Dia (F) RTJ RF Height (G) PCD (H) RTJ Pitch Dia (I) RTJ Depth (J) RTJ Width (K)
1/2 15 95 12.7 38 21.3 51 51 5.54 66.7 34.14 5.54 7.14
3/4 20 115 14.3 48 26.7 56 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 15.9 54 33.4 60 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 17.5 64 42.2 64 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 19.1 70 48.3 67 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 20.7 84 60.3 68 108 7.92 127 82.55 7.92 11.91
2 1/2 65 190 23.9 100 73 75 127 7.92 149.2 101.6 7.92 11.91
3 80 210 27 117 88.9 78 146 7.92 168.3 123.83 7.92 11.91
3 1/2 90 230 28.6 133 101.6 79 159 7.92 184.2 131.78 7.92 11.91
4 100 255 30.2 146 114.3 84 175 7.92 200 149.23 7.92 11.91
5 125 280 33.4 178 141.3 97 210 7.92 235 180.98 7.92 11.91
6 150 320 35 206 168.3 97 241 7.92 269.9 211.12 7.92 11.91
8 200 380 39.7 260 219.1 110 302 7.92 330.2 269.88 7.92 11.91
10 250 445 46.1 321 273 116 356 7.92 387.4 323.85 7.92 11.91
12 300 520 49.3 375 323.8 129 413 7.92 450.8 381 7.92 11.91
14 350 585 52.4 425 355.6 141 457 7.92 514.4 419.1 7.92 11.91
16 400 650 55.6 483 406.4 144 508 7.92 571.5 469.9 7.92 11.91
18 450 710 58.8 533 457 157 575 7.92 628.6 533.4 7.92 11.91
20 500 775 62 587 508 160 635 9.53 685.8 584.2 9.53 13.49
24 600 915 68.3 702 610 167 749 11.13 812.8 692.15 11.13 16.66

Ring Type Joint Flange Standards

Ring Type Joint (RTJ) flanges are designed according to several recognized international standards. Here are some of the key standards for RTJ flanges:

1. ASME/ANSI Standards (American)

  • ASME B16.5– Pipe Flanges and Flanged Fittings (NPS 1/2" to 24").
  • ASME B16.47 – Large Diameter Steel Flanges (Series A & B, NPS 26" to 60").
  • ASME B16.36 – Orifice Flanges.
  • ASME B16.48 – Line Blanks (Spectacle, Spade, and Spacer Flanges).
  • ANSI B16.1 – Cast Iron Flanges and Flanged Fittings.
  • ANSI B16.42 – Ductile Iron Pipe Flanges and Flanged Fittings.

2. ISO Standards (International)

  • ISO 7005-1 – Steel Flanges for General Applications.
  • ISO 7005-2 – Cast Iron Flanges.
  • ISO 7005-3 – Copper Alloy Flanges.

3. EN Standards (European)

  • EN 1092-1 – Steel Flanges.
  • EN 1092-2 – Cast Iron Flanges.
  • EN 1092-3 – Copper Alloy Flanges.
  • EN 1092-4 – Aluminium Alloy Flanges.

4. DIN Standards (German)

  • DIN 2527 – Blind Flanges.
  • DIN 2576 – Slip-On Flanges (PN 10).
  • DIN 2633 – Weld Neck Flanges (PN 16).
  • DIN 2634 – Weld Neck Flanges (PN 25).
  • DIN 2635 – Weld Neck Flanges (PN 40).

5. JIS Standards (Japanese)

  • JIS B2220 – Steel Pipe Flanges.

6. GOST Standards (Russian)

  • GOST 12820 – Flat Flanges for Steel Pipe Joints.
  • GOST 12821 – Steel Welded Flanges for High-Pressure Applications.
  • GOST 33259 – Flange Connections for Industrial Equipment and Pipelines.

7. BS Standards (British)

  • BS 4504 – Circular Flanges for Pipes, Valves, and Fittings.
  • BS 10 – Specification for Flanges and Bolting.

8. API Standards (Oil & Gas)

  • API 6A – Wellhead and Christmas Tree Equipment Flanges.
  • API 605 – Large-Diameter Carbon Steel Flanges (merged into ASME B16.47 Series B).

9. AWWA Standards (Waterworks)

  • AWWA C207 – Steel Ring Flanges for Waterworks Service.

10. MSS Standards (Manufacturer's Standardization Society)

  • MSS SP-44 – Steel Pipe Flanges (merged into ASME B16.47 Series A).
  • MSS SP-51 – Flanges for Glass-Lined Equipment.

11. Material-Specific Standards (ASTM)

  • ASTM A105 – Carbon Steel Forged Flanges.
  • ASTM A182 – Alloy and Stainless Steel Forged Flanges.
  • ASTM A350 – Carbon and Low-Alloy Steel Flanges for Low-Temperature Service.
  • ASTM A694 – High-Strength Carbon and Alloy Steel Flanges for High-Pressure Applications.

12. Other Regional and Specialized Standards

  • KS B1511 – Korean Standard Flanges.
  • NF E29-206 – French Standard Flanges.
  • SANS 1123 – South African Standard for Steel Flanges.

Why Choose Arrow Piping Solutions For RTJ Flanges?

Arrow Piping Solutions is a trusted manufacturer and supplier of high-performance RTJ (Ring Type Joint) Flanges designed for critical applications that require exceptional sealing reliability. Our RTJ Flanges are manufactured using premium-grade materials and advanced production techniques to ensure superior performance in high-pressure and high-temperature environments.

Exceptional Strength and Reliability

Our RTJ Flanges are engineered to withstand demanding operating conditions, including extreme pressures, elevated temperatures, and harsh industrial environments. Their robust construction ensures long-term durability and dependable performance.

Excellent Resistance to Fatigue

Designed for applications involving continuous pressure fluctuations, vibrations, and cyclic loading, our RTJ Flanges offer excellent fatigue resistance, making them ideal for dynamic piping systems and critical process industries.

Compliance with International Standards

Arrow Piping Solutions manufactures RTJ Flanges in accordance with globally recognized standards such as ASME, ANSI, API, DIN, and EN. This ensures dimensional accuracy, reliable sealing performance, and complete compatibility with industrial piping systems.

Outstanding Temperature Performance

Our RTJ Flanges maintain their structural integrity and sealing efficiency across a wide range of operating temperatures, making them suitable for both high-temperature processing plants and low-temperature service conditions.

What Types of Gaskets Are Used with RTJ Flanges?

−

RTJ Flanges typically utilize metallic ring gaskets such as Oval Ring, Octagonal Ring, and other specialized ring-type gaskets.

These gaskets fit precisely into the flange groove and provide a highly secure seal for high-pressure applications.

How Do RTJ Flanges Function?

+

RTJ Flanges feature precision-machined grooves on their sealing faces.

When the flange assembly is tightened, the metallic ring gasket is compressed within these grooves, creating a strong metal-to-metal seal that effectively prevents leakage even under severe operating conditions.

What Is the Difference Between RTJ Flanges and Raised Face Flanges?

+

The primary difference lies in the sealing method. Raised Face Flanges use soft or semi-metallic gaskets positioned on the raised surface, whereas RTJ Flanges utilize a specially designed metallic ring gasket seated within a machined groove.

This design enables RTJ Flanges to provide superior sealing performance in high-pressure and high-temperature applications.

AVAILABLE TYPES OF FLANGES

TONGUE AND GROOVE FLANGES

MALE AND FEMALE FLANGES

WELD NECK FLANGES

BLIND FLANGES

Orifice Flange

Socket Weld Flange / SWRF Flange
