ASME/ANSI B16.5 & B16.47 Lap Joint Flange Manufacturer, Supplier & Exporter

Lap Joint Flanges are specially designed to be used with a stub end, providing a practical and flexible piping connection solution. Unlike conventional flanges, Lap Joint Flanges are not directly welded to the pipe, allowing the flange to rotate freely around the pipe. This feature simplifies bolt hole alignment during installation and makes assembly, disassembly, and maintenance much easier. Due to their versatile design, Lap Joint Flanges are widely used in industries such as chemical processing, water treatment, food processing, pharmaceuticals, and petrochemical plants where frequent system inspection or modifications may be required

One of the major advantages of Lap Joint Flanges is their ability to reduce installation time and maintenance costs. Since the flange can be reused and easily removed, it is an economical choice for low-pressure and non-critical service applications. These flanges are manufactured in a variety of materials including Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, and other special alloys to provide excellent corrosion resistance, strength, and durability across different operating conditions.

Arrow Piping Solutions is a trusted manufacturer, supplier, and exporter of premium-quality Lap Joint Flanges manufactured in compliance with ASME/ANSI B16.5 and B16.47 standards. We offer a comprehensive range of Lap Joint Flanges in various sizes, pressure ratings, and material grades to meet diverse industrial requirements. Our products are manufactured using advanced technology and undergo strict quality inspections to ensure dimensional accuracy, superior performance, and long service life. With competitive pricing, prompt delivery, and customer-focused service, Arrow Piping Solutions delivers reliable flange solutions for industrial applications worldwide.

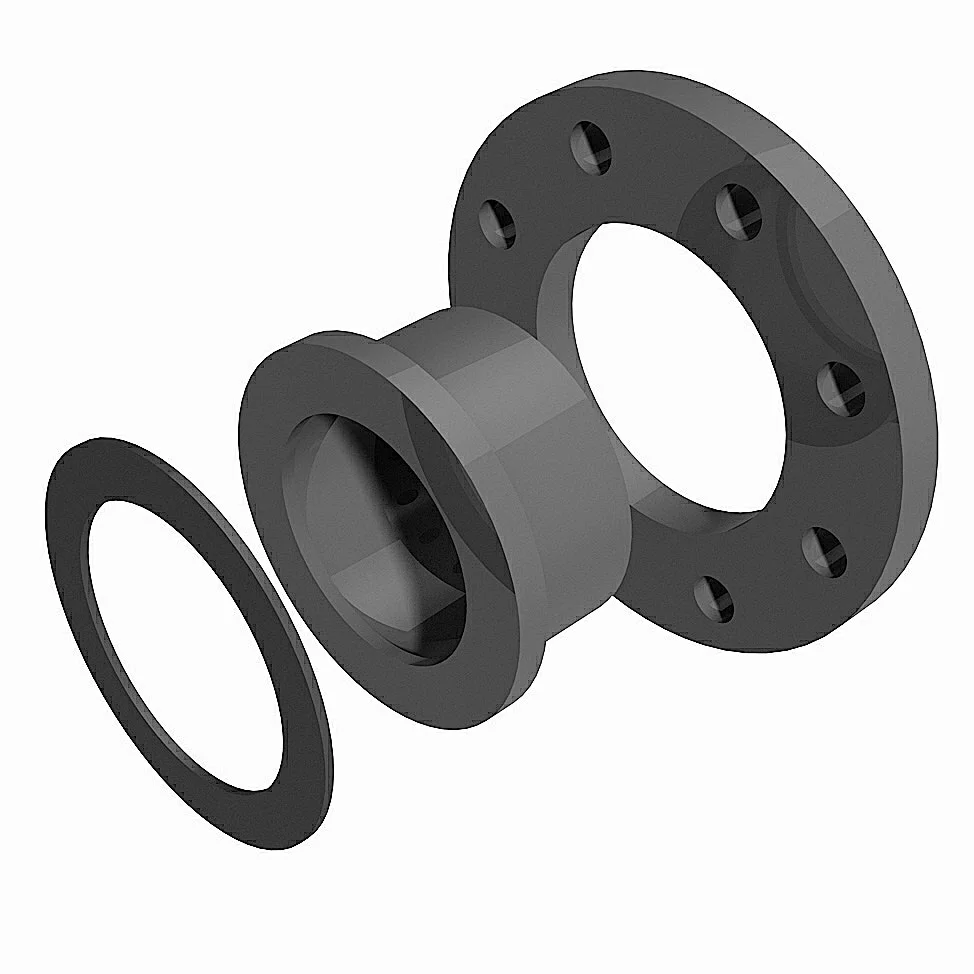

Loose Lap Joint Flange

Loose Flange, Stub End Flange with Lap Joint, Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Nickel Alloy Lap Joint Flange, 1/2, 24 Inch Lap Joint Flange, EN 1092-1 Lap Joint Flange, DIN 2642 Lap Joint Flange


ASME/ANSI B16.5 Lap Joint Flange

SIZE RANGE

15mm (1/2" NPS ) up to 600mm ( 24" NPS ), For 2500# in sizes from NPS 1/2 to NPS 12

STANDARDS / DIMENSION

ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN

PRESSURE CLASS

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64.

FLANGE FACE TYPE

FF—Flat Face, RF—Raised Face, FM—Female Face, M—Male Face, T—Tongue Face, G—Groove Face, RJ—Ring Joint.

CARBON STEEL

ASTM A105/A105N (SA105N), LTCS A350 LF2, A694

DUPLEX & SUPER DUPLEX

ASTM A182 / ASME SA182 - S31803, S32205, 2205, S32750, S32760, S32950, 2507.

STAINLESS STEEL

ASTM A182 F304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.

ALLOY STEEL

ASTM A182 / SA182 - F1 / F5 / F9 / F11 / F12 / F22 / F91

MTC

EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103

Flanges ANSI/ASME B16.5 & B16.47
worker

ISO CERTIFIED MANUFACTURER

Our worldwide presence ensures the timeliness, cost efficiency compliance adherence required to ensure your production timelines.

→ Free And Quick Quote

DOWNLOAD

Company Report 2019
PDF
Company Brochure
PDF

Materials

➜
Stainless Steel ➜ Carbon Steel ➜ Alloy Steel ➜
Lap Joint Flange Diagram

ASME B16.5 LAP JOINT FLANGE - (NPS 1/2 TO 4, CLASS 150) - DIMENSIONS & WEIGHT

+
Nominal Pipe Size Outside Diameter (O) Thickness (T) Raised Face Diameter (R) Length Thru Hub (Y) Point of Weld (A) Hub Diameter (X) Bore (B) Approximate Weight (lbs) Bolt Circle (C) Number of Holes Diameter of Holes
1/2 3.50 0.44 0.63 1.19 0.13 0.90 1 2.38 4 0.63
3/4 3.88 0.50 0.63 1.50 0.13 1.11 2 2.75 4 0.63
1 4.25 0.56 0.69 1.94 0.13 1.38 2 3.13 4 0.63
1 1/4 4.63 0.63 0.81 2.31 0.19 1.72 3 3.50 4 0.63
1 1/2 5.00 0.69 0.88 2.56 0.25 1.97 3 3.88 4 0.63
2 6.00 0.75 1.00 3.06 0.31 2.46 5 4.75 4 0.75
2 1/2 7.00 0.88 1.13 3.56 0.31 2.97 7 5.50 4 0.75
3 7.50 0.94 1.19 4.25 0.38 3.60 8 6.00 4 0.75
3 1/2 8.50 0.94 1.25 4.81 0.38 4.10 11 7.00 8 0.75
4 9.00 0.94 1.31 5.31 0.44 4.60 13 7.50 8 0.75
5 10.00 0.94 1.44 6.44 0.44 5.69 15 8.50 8 0.88
6 11.00 1.00 1.56 7.56 0.50 6.75 19 9.50 8 0.88
8 13.50 1.13 1.75 9.69 0.50 8.75 30 11.75 8 0.88
10 16.00 1.19 1.94 12.00 0.50 10.92 43 14.25 12 1.00
12 19.00 1.25 2.19 14.38 0.50 12.92 64 17.00 12 1.00
14 21.00 1.38 3.13 15.75 0.50 14.18 105 18.75 12 1.13
16 23.50 1.44 3.44 18.00 0.50 16.19 140 21.25 16 1.13
18 25.00 1.56 2.88 19.88 0.50 18.20 160 22.75 16 1.25
20 27.50 1.69 4.06 22.00 0.50 20.25 195 25.00 20 1.25
22 29.50 1.81 4.25 24.25 0.50 22.25 245 27.25 20 1.38
24 32.00 1.88 4.38 26.13 0.50 24.25 275 29.50 20 1.38

ASME B16.5 LAP JOINT FLANGE - (NPS 1/2 TO 4, CLASS 300) - DIMENSIONS & WEIGHT

+
Nominal Pipe Size Outside Diameter (O) Thickness (T) Raised Face Diameter (R) Length Thru Hub (Y) Point of Weld (A) Hub Diameter (X) Bore (B) Approximate Weight (lbs) Bolt Circle (C) Number of Holes Diameter of Holes
1/2 3.50 0.44 0.63 1.19 0.13 0.90 1 2.38 4 0.63
3/4 3.88 0.50 0.63 1.50 0.13 1.11 2 2.75 4 0.63
1 4.25 0.56 0.69 1.94 0.13 1.38 2 3.13 4 0.63
1 1/4 4.63 0.63 0.81 2.31 0.19 1.72 3 3.50 4 0.63
1 1/2 5.00 0.69 0.88 2.56 0.25 1.97 3 3.88 4 0.63
2 6.00 0.75 1.00 3.06 0.31 2.46 5 4.75 4 0.75
2 1/2 7.00 0.88 1.13 3.56 0.31 2.97 7 5.50 4 0.75
3 7.50 0.94 1.19 4.25 0.38 3.60 8 6.00 4 0.75
3 1/2 8.50 0.94 1.25 4.81 0.38 4.10 11 7.00 8 0.75
4 9.00 0.94 1.31 5.31 0.44 4.60 13 7.50 8 0.75
5 10.00 0.94 1.44 6.44 0.44 5.69 15 8.50 8 0.88
6 11.00 1.00 1.56 7.56 0.50 6.75 19 9.50 8 0.88
8 13.50 1.13 1.75 9.69 0.50 8.75 30 11.75 8 0.88
10 16.00 1.19 1.94 12.00 0.50 10.92 43 14.25 12 1.00
12 19.00 1.25 2.19 14.38 0.50 12.92 64 17.00 12 1.00
14 21.00 1.38 3.13 15.75 0.50 14.18 105 18.75 12 1.13
16 23.50 1.44 3.44 18.00 0.50 16.19 140 21.25 16 1.13
18 25.00 1.56 2.88 19.88 0.50 18.20 160 22.75 16 1.25
20 27.50 1.69 4.06 22.00 0.50 20.25 195 25.00 20 1.25
22 29.50 1.81 4.25 24.25 0.50 22.25 245 27.25 20 1.38
24 32.00 1.88 4.38 26.13 0.50 24.25 275 29.50 20 1.38

ASME B16.5 LAP JOINT FLANGE - (NPS 1/2 TO 4, CLASS 400) - DIMENSIONS & WEIGHT

+
Nominal Pipe Size Outside Diameter (O) Thickness (T) Raised Face Diameter (R) Length Thru Hub (Y) Point of Weld (A) Hub Diameter (X) Bore (B) Approximate Weight (lbs) Bolt Circle (C) Number of Holes Diameter of Holes
1/2 3.50 0.44 0.63 1.19 0.13 0.90 1 2.38 4 0.63
3/4 3.88 0.50 0.63 1.50 0.13 1.11 2 2.75 4 0.63
1 4.25 0.56 0.69 1.94 0.13 1.38 2 3.13 4 0.63
1 1/4 4.63 0.63 0.81 2.31 0.19 1.72 3 3.50 4 0.63
1 1/2 5.00 0.69 0.88 2.56 0.25 1.97 3 3.88 4 0.63
2 6.00 0.75 1.00 3.06 0.31 2.46 5 4.75 4 0.75
2 1/2 7.00 0.88 1.13 3.56 0.31 2.97 7 5.50 4 0.75
3 7.50 0.94 1.19 4.25 0.38 3.60 8 6.00 4 0.75
3 1/2 8.50 0.94 1.25 4.81 0.38 4.10 11 7.00 8 0.75
4 9.00 0.94 1.31 5.31 0.44 4.60 13 7.50 8 0.75
5 10.00 0.94 1.44 6.44 0.44 5.69 15 8.50 8 0.88
6 11.00 1.00 1.56 7.56 0.50 6.75 19 9.50 8 0.88
8 13.50 1.13 1.75 9.69 0.50 8.75 30 11.75 8 0.88
10 16.00 1.19 1.94 12.00 0.50 10.92 43 14.25 12 1.00
12 19.00 1.25 2.19 14.38 0.50 12.92 64 17.00 12 1.00
14 21.00 1.38 3.13 15.75 0.50 14.18 105 18.75 12 1.13
16 23.50 1.44 3.44 18.00 0.50 16.19 140 21.25 16 1.13
18 25.00 1.56 2.88 19.88 0.50 18.20 160 22.75 16 1.25
20 27.50 1.69 4.06 22.00 0.50 20.25 195 25.00 20 1.25
22 29.50 1.81 4.25 24.25 0.50 22.25 245 27.25 20 1.38
24 32.00 1.88 4.38 26.13 0.50 24.25 275 29.50 20 1.38

ASME B16.5 LAP JOINT FLANGE - (NPS 1/2 TO 4, CLASS 600) - DIMENSIONS & WEIGHT

+
Nominal Pipe Size Outside Diameter (O) Thickness (T) Raised Face Diameter (R) Length Thru Hub (Y) Point of Weld (A) Hub Diameter (X) Bore (B) Approximate Weight (lbs) Bolt Circle (C) Number of Holes Diameter of Holes
1/2 3.50 0.44 0.63 1.19 0.13 0.90 1 2.38 4 0.63
3/4 3.88 0.50 0.63 1.50 0.13 1.11 2 2.75 4 0.63
1 4.25 0.56 0.69 1.94 0.13 1.38 2 3.13 4 0.63
1 1/4 4.63 0.63 0.81 2.31 0.19 1.72 3 3.50 4 0.63
1 1/2 5.00 0.69 0.88 2.56 0.25 1.97 3 3.88 4 0.63
2 6.00 0.75 1.00 3.06 0.31 2.46 5 4.75 4 0.75
2 1/2 7.00 0.88 1.13 3.56 0.31 2.97 7 5.50 4 0.75
3 7.50 0.94 1.19 4.25 0.38 3.60 8 6.00 4 0.75
3 1/2 8.50 0.94 1.25 4.81 0.38 4.10 11 7.00 8 0.75
4 9.00 0.94 1.31 5.31 0.44 4.60 13 7.50 8 0.75
5 10.00 0.94 1.44 6.44 0.44 5.69 15 8.50 8 0.88
6 11.00 1.00 1.56 7.56 0.50 6.75 19 9.50 8 0.88
8 13.50 1.13 1.75 9.69 0.50 8.75 30 11.75 8 0.88
10 16.00 1.19 1.94 12.00 0.50 10.92 43 14.25 12 1.00
12 19.00 1.25 2.19 14.38 0.50 12.92 64 17.00 12 1.00
14 21.00 1.38 3.13 15.75 0.50 14.18 105 18.75 12 1.13
16 23.50 1.44 3.44 18.00 0.50 16.19 140 21.25 16 1.13
18 25.00 1.56 2.88 19.88 0.50 18.20 160 22.75 16 1.25
20 27.50 1.69 4.06 22.00 0.50 20.25 195 25.00 20 1.25
22 29.50 1.81 4.25 24.25 0.50 22.25 245 27.25 20 1.38
24 32.00 1.88 4.38 26.13 0.50 24.25 275 29.50 20 1.38

ASME B16.5 LAP JOINT FLANGE - (NPS 1/2 TO 4, CLASS 900) - DIMENSIONS & WEIGHT

+
Nominal Pipe Size Outside Diameter (O) Thickness (T) Raised Face Diameter (R) Length Thru Hub (Y) Point of Weld (A) Hub Diameter (X) Bore (B) Approximate Weight (lbs) Bolt Circle (C) Number of Holes Diameter of Holes
1/2 3.50 0.44 0.63 1.19 0.13 0.90 1 2.38 4 0.63
3/4 3.88 0.50 0.63 1.50 0.13 1.11 2 2.75 4 0.63
1 4.25 0.56 0.69 1.94 0.13 1.38 2 3.13 4 0.63
1 1/4 4.63 0.63 0.81 2.31 0.19 1.72 3 3.50 4 0.63
1 1/2 5.00 0.69 0.88 2.56 0.25 1.97 3 3.88 4 0.63
2 6.00 0.75 1.00 3.06 0.31 2.46 5 4.75 4 0.75
2 1/2 7.00 0.88 1.13 3.56 0.31 2.97 7 5.50 4 0.75
3 7.50 0.94 1.19 4.25 0.38 3.60 8 6.00 4 0.75
3 1/2 8.50 0.94 1.25 4.81 0.38 4.10 11 7.00 8 0.75
4 9.00 0.94 1.31 5.31 0.44 4.60 13 7.50 8 0.75
5 10.00 0.94 1.44 6.44 0.44 5.69 15 8.50 8 0.88
6 11.00 1.00 1.56 7.56 0.50 6.75 19 9.50 8 0.88
8 13.50 1.13 1.75 9.69 0.50 8.75 30 11.75 8 0.88
10 16.00 1.19 1.94 12.00 0.50 10.92 43 14.25 12 1.00
12 19.00 1.25 2.19 14.38 0.50 12.92 64 17.00 12 1.00
14 21.00 1.38 3.13 15.75 0.50 14.18 105 18.75 12 1.13
16 23.50 1.44 3.44 18.00 0.50 16.19 140 21.25 16 1.13
18 25.00 1.56 2.88 19.88 0.50 18.20 160 22.75 16 1.25
20 27.50 1.69 4.06 22.00 0.50 20.25 195 25.00 20 1.25
22 29.50 1.81 4.25 24.25 0.50 22.25 245 27.25 20 1.38
24 32.00 1.88 4.38 26.13 0.50 24.25 275 29.50 20 1.38

ASME B16.5 LAP JOINT FLANGE - (NPS 1/2 TO 4, CLASS 1500) - DIMENSIONS & WEIGHT

+
Nominal Pipe Size Outside Diameter (O) Thickness (T) Raised Face Diameter (R) Length Thru Hub (Y) Point of Weld (A) Hub Diameter (X) Bore (B) Approximate Weight (lbs) Bolt Circle (C) Number of Holes Diameter of Holes
1/2 3.50 0.44 0.63 1.19 0.13 0.90 1 2.38 4 0.63
3/4 3.88 0.50 0.63 1.50 0.13 1.11 2 2.75 4 0.63
1 4.25 0.56 0.69 1.94 0.13 1.38 2 3.13 4 0.63
1 1/4 4.63 0.63 0.81 2.31 0.19 1.72 3 3.50 4 0.63
1 1/2 5.00 0.69 0.88 2.56 0.25 1.97 3 3.88 4 0.63
2 6.00 0.75 1.00 3.06 0.31 2.46 5 4.75 4 0.75
2 1/2 7.00 0.88 1.13 3.56 0.31 2.97 7 5.50 4 0.75
3 7.50 0.94 1.19 4.25 0.38 3.60 8 6.00 4 0.75
3 1/2 8.50 0.94 1.25 4.81 0.38 4.10 11 7.00 8 0.75
4 9.00 0.94 1.31 5.31 0.44 4.60 13 7.50 8 0.75
5 10.00 0.94 1.44 6.44 0.44 5.69 15 8.50 8 0.88
6 11.00 1.00 1.56 7.56 0.50 6.75 19 9.50 8 0.88
8 13.50 1.13 1.75 9.69 0.50 8.75 30 11.75 8 0.88
10 16.00 1.19 1.94 12.00 0.50 10.92 43 14.25 12 1.00
12 19.00 1.25 2.19 14.38 0.50 12.92 64 17.00 12 1.00
14 21.00 1.38 3.13 15.75 0.50 14.18 105 18.75 12 1.13
16 23.50 1.44 3.44 18.00 0.50 16.19 140 21.25 16 1.13
18 25.00 1.56 2.88 19.88 0.50 18.20 160 22.75 16 1.25
20 27.50 1.69 4.06 22.00 0.50 20.25 195 25.00 20 1.25
22 29.50 1.81 4.25 24.25 0.50 22.25 245 27.25 20 1.38
24 32.00 1.88 4.38 26.13 0.50 24.25 275 29.50 20 1.38

ASME B16.5 LAP JOINT FLANGE - (NPS 1/2 TO 4, CLASS 2500) - DIMENSIONS & WEIGHT

+
Nominal Pipe Size Outside Diameter (O) Thickness (T) Raised Face Diameter (R) Length Thru Hub (Y) Point of Weld (A) Hub Diameter (X) Bore (B) Approximate Weight (lbs) Bolt Circle (C) Number of Holes Diameter of Holes
1/2 3.50 0.44 0.63 1.19 0.13 0.90 1 2.38 4 0.63
3/4 3.88 0.50 0.63 1.50 0.13 1.11 2 2.75 4 0.63
1 4.25 0.56 0.69 1.94 0.13 1.38 2 3.13 4 0.63
1 1/4 4.63 0.63 0.81 2.31 0.19 1.72 3 3.50 4 0.63
1 1/2 5.00 0.69 0.88 2.56 0.25 1.97 3 3.88 4 0.63
2 6.00 0.75 1.00 3.06 0.31 2.46 5 4.75 4 0.75
2 1/2 7.00 0.88 1.13 3.56 0.31 2.97 7 5.50 4 0.75
3 7.50 0.94 1.19 4.25 0.38 3.60 8 6.00 4 0.75
3 1/2 8.50 0.94 1.25 4.81 0.38 4.10 11 7.00 8 0.75
4 9.00 0.94 1.31 5.31 0.44 4.60 13 7.50 8 0.75
5 10.00 0.94 1.44 6.44 0.44 5.69 15 8.50 8 0.88
6 11.00 1.00 1.56 7.56 0.50 6.75 19 9.50 8 0.88
8 13.50 1.13 1.75 9.69 0.50 8.75 30 11.75 8 0.88
10 16.00 1.19 1.94 12.00 0.50 10.92 43 14.25 12 1.00
12 19.00 1.25 2.19 14.38 0.50 12.92 64 17.00 12 1.00
14 21.00 1.38 3.13 15.75 0.50 14.18 105 18.75 12 1.13
16 23.50 1.44 3.44 18.00 0.50 16.19 140 21.25 16 1.13
18 25.00 1.56 2.88 19.88 0.50 18.20 160 22.75 16 1.25
20 27.50 1.69 4.06 22.00 0.50 20.25 195 25.00 20 1.25
22 29.50 1.81 4.25 24.25 0.50 22.25 245 27.25 20 1.38
24 32.00 1.88 4.38 26.13 0.50 24.25 275 29.50 20 1.38

Loose Flange Standards

Loose flanges, commonly referred to as Lap Joint Flanges, are manufactured in compliance with various international standards to ensure compatibility, safety, and reliability across different applications.

1. ASME/ANSI Standards (American)

  • ASME B16.5– Pipe Flanges and Flanged Fittings (NPS 1/2" to 24").
  • ASME B16.47 – Large Diameter Steel Flanges (Series A & B, NPS 26" to 60").
  • ASME B16.36 – Orifice Flanges.
  • ASME B16.48 – Line Blanks (Spectacle, Spade, and Spacer Flanges).
  • ANSI B16.1 – Cast Iron Flanges and Flanged Fittings.
  • ANSI B16.42 – Ductile Iron Pipe Flanges and Flanged Fittings.

2. ISO Standards (International)

  • ISO 7005-1 – Steel Flanges for General Applications.
  • ISO 7005-2 – Cast Iron Flanges.
  • ISO 7005-3 – Copper Alloy Flanges.

3. EN Standards (European)

  • EN 1092-1 – Steel Flanges.
  • EN 1092-2 – Cast Iron Flanges.
  • EN 1092-3 – Copper Alloy Flanges.
  • EN 1092-4 – Aluminium Alloy Flanges.

4. DIN Standards (German)

  • DIN 2527 – Blind Flanges.
  • DIN 2576 – Slip-On Flanges (PN 10).
  • DIN 2633 – Weld Neck Flanges (PN 16).
  • DIN 2634 – Weld Neck Flanges (PN 25).
  • DIN 2635 – Weld Neck Flanges (PN 40).

5. JIS Standards (Japanese)

  • JIS B2220 – Steel Pipe Flanges.

6. GOST Standards (Russian)

  • GOST 12820 – Flat Flanges for Steel Pipe Joints.
  • GOST 12821 – Steel Welded Flanges for High-Pressure Applications.
  • GOST 33259 – Flange Connections for Industrial Equipment and Pipelines.

7. BS Standards (British)

  • BS 4504 – Circular Flanges for Pipes, Valves, and Fittings.
  • BS 10 – Specification for Flanges and Bolting.

8. API Standards (Oil & Gas)

  • API 6A – Wellhead and Christmas Tree Equipment Flanges.
  • API 605 – Large-Diameter Carbon Steel Flanges (merged into ASME B16.47 Series B).

9. AWWA Standards (Waterworks)

  • AWWA C207 – Steel Ring Flanges for Waterworks Service.

10. MSS Standards (Manufacturer's Standardization Society)

  • MSS SP-44 – Steel Pipe Flanges (merged into ASME B16.47 Series A).
  • MSS SP-51 – Flanges for Glass-Lined Equipment.

11. Material-Specific Standards (ASTM)

  • ASTM A105 – Carbon Steel Forged Flanges.
  • ASTM A182 – Alloy and Stainless Steel Forged Flanges.
  • ASTM A350 – Carbon and Low-Alloy Steel Flanges for Low-Temperature Service.
  • ASTM A694 – High-Strength Carbon and Alloy Steel Flanges for High-Pressure Applications.

12. Other Regional and Specialized Standards

  • KS B1511 – Korean Standard Flanges.
  • NF E29-206 – French Standard Flanges.
  • SANS 1123 – South African Standard for Steel Flanges.

Why Choose Arrow Piping Solutions For Lap Joint Flanges?

Arrow Piping Solutions is a trusted manufacturer and supplier of high-quality Lap Joint Flanges, delivering reliable products designed to meet the diverse requirements of modern industrial piping systems. Our commitment to quality, technical expertise, and customer satisfaction enables us to provide dependable flange solutions for a wide range of applications.

Technical Expertise and Customer Assistance

Our experienced team of professionals provides expert guidance in selecting the most suitable Lap Joint Flanges based on project specifications and operating conditions. We are committed to supporting our customers throughout the procurement process, from product selection to after-sales assistance.

Reliable Global Supply Chain

With efficient manufacturing capabilities and a strong distribution network, Arrow Piping Solutions ensures timely delivery of Lap Joint Flanges to customers across domestic and international markets. Our streamlined logistics help reduce project delays and maintain operational efficiency.

Comprehensive Product Range

We offer Lap Joint Flanges in a wide variety of sizes, pressure classes, and material grades to suit different industrial applications. Our extensive inventory enables us to meet the requirements of both standard and customized projects.

Customized Flange Solutions

Arrow Piping Solutions provides tailor-made Lap Joint Flanges based on customer specifications, including custom dimensions, materials, pressure ratings, and surface finishes. This flexibility allows us to serve specialized applications across multiple industries.

What Are the Advantages of Lap Joint Flanges?

−

Simplifies bolt hole alignment during installation.

Allows easy dismantling and reassembly of piping systems.

Reduces maintenance time and associated costs.

Enables flange reuse when replacing or modifying pipe sections.

Offers an economical solution where different materials are required for the flange and pipe.

Where Are Lap Joint Flanges Commonly Used?

+

Lap Joint Flanges are widely used in industries such as oil & gas, chemical processing, petrochemicals, water treatment, power generation, food processing, and pharmaceutical manufacturing, where frequent maintenance and system modifications are required.

Can Lap Joint Flanges Be Customized?

+

Yes, Arrow Piping Solutions offers customized Lap Joint Flanges in various material grades, dimensions, pressure classes, and surface finishes to meet specific project requirements and industrial standards.

AVAILABLE TYPES OF FLANGES

TONGUE AND GROOVE FLANGES

MALE AND FEMALE FLANGES

WELD NECK FLANGES

BLIND FLANGES

Orifice Flange

Socket Weld Flange / SWRF Flange
