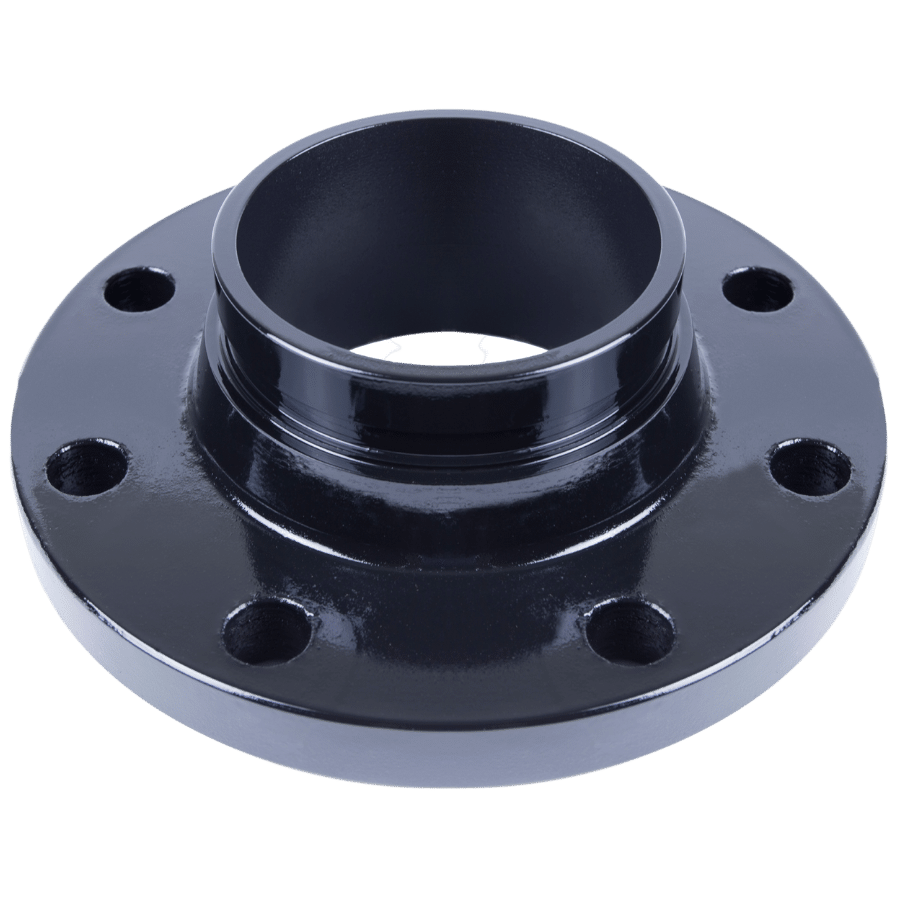

Raised Face Flange

Home / Industrial Flanges

ASME/ANSI B16.5, B16.47 Weld Neck Flange, LWN Flange, WN Flange Supplier

Raised Face (RF) Flanges are among the most widely used flange types in industrial piping systems due to their superior sealing capability and reliable performance. These flanges feature a raised sealing surface above the bolt circle, which allows the gasket to be compressed effectively when the flange assembly is tightened. This design creates a secure, leak-resistant connection, making Raised Face Flanges ideal for applications involving high pressure, elevated temperatures, and critical process conditions. RF Flanges are extensively used in industries such as oil & gas, petrochemicals, power generation, chemical processing, refineries, and water treatment facilities

The raised sealing surface helps concentrate gasket pressure within a smaller area, improving sealing efficiency and reducing the possibility of leakage. Raised Face Flanges are manufactured in various material grades including Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, and other specialty alloys to suit different operating environments. Their robust construction, excellent strength, and corrosion resistance make them suitable for both standard and demanding industrial applications.

Arrow Piping Solutions is a trusted manufacturer, supplier, and exporter of premium-quality Raised Face Flanges manufactured according to international standards such as ASME B16.47 and ANSI B16.5. Our RF Flanges are available in a wide range of sizes, pressure classes, and material grades to meet the diverse needs of industrial projects. Manufactured using advanced technology and subjected to stringent quality control procedures, our products ensure superior performance, dimensional accuracy, and long service life. With competitive pricing, prompt delivery, and dedicated customer support, Arrow Piping Solutions provides dependable flange solutions for customers worldwide.

Raised Face Flange

RF flange, Raised face flange gasket, Raised face flange weld neck, Carbon steel raised face flange, Stainless steel raised face flange, Forged raised face flange, Raised face flange welding

Raised face flange ASME B16.5 Specifications

SIZE RANGE

15mm (1/2" NPS ) up to 600mm ( 24" NPS ), For 2500# in sizes from NPS 1/2 to NPS 12

STANDARDS / DIMENSION

ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN

PRESSURE CLASS

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64.

FLANGE FACE TYPE

FF—Flat Face, RF—Raised Face, FM—Female Face, M—Male Face, T—Tongue Face, G—Groove Face, RJ—Ring Joint.

CARBON STEEL

ASTM A105/A105N (SA105N), LTCS A350 LF2, A694

DUPLEX & SUPER DUPLEX

ASTM A182 / ASME SA182 - S31803, S32205, 2205, S32750, S32760, S32950, 2507.

STAINLESS STEEL

ASTM A182 F304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.

ALLOY STEEL

ASTM A182 / SA182 - F1 / F5 / F9 / F11 / F12 / F22 / F91

MTC

EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103

Flanges ANSI/ASME B16.5 & B16.47
worker

ISO CERTIFIED MANUFACTURER

Our worldwide presence ensures the timeliness, cost efficiency compliance adherence required to ensure your production timelines.

→ Free And Quick Quote

DOWNLOAD

Company Report 2019
PDF
Company Brochure
PDF

Materials

➜
Stainless Steel ➜ Carbon Steel ➜ Alloy Steel ➜

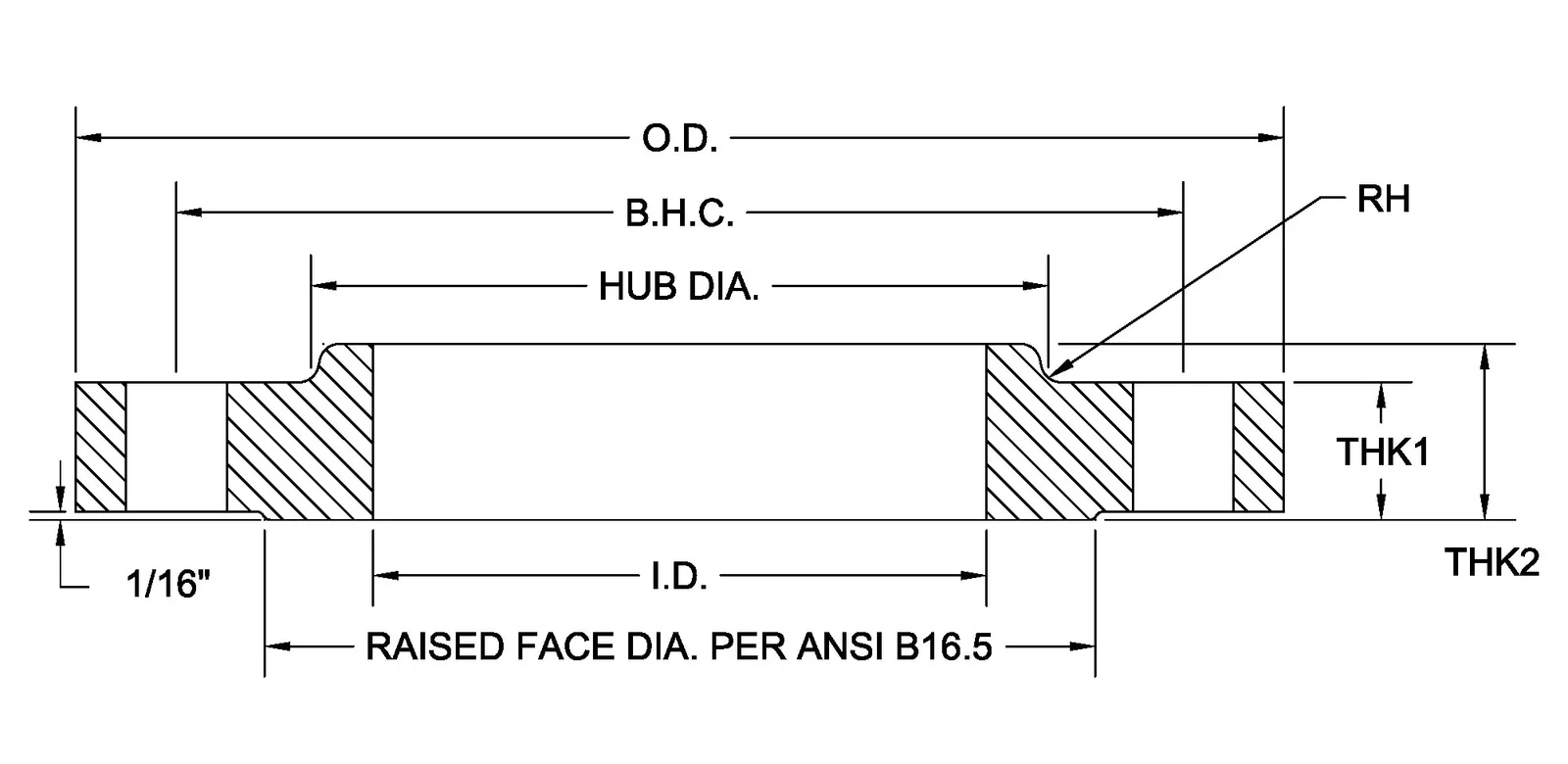

Weld Neck Flange Diagram

ASME B16.5 RAISED FACE FLANGE,RF FLANGE - DIMENSIONS & WEIGHT

+
Nominal Pipe Size Outside Diameter (O) Thickness (T) Raised Face Diameter (R) Length Thru Hub (Y) Point of Weld (A) Hub Diameter (X) Bore (B) Approximate Weight (lbs) Bolt Circle (C) Number of Holes Diameter of Holes
1/2 3.75 0.56 1.38 2.06 0.84 1.50 0.62 2 2.63 4 0.63
3/4 4.63 0.63 1.69 2.25 1.05 1.88 0.82 3 3.25 4 0.75
1 4.88 0.69 2.00 2.44 1.32 2.13 1.05 4 3.50 4 0.75
1 1/4 5.25 0.75 2.50 2.56 1.66 2.50 1.38 5 3.88 4 0.75
1 1/2 6.13 0.81 2.88 2.69 1.90 2.75 1.61 7 4.50 4 0.88
2 6.50 0.88 3.63 2.75 2.38 3.31 2.07 9 5.00 8 0.75
2 1/2 7.50 1.00 4.13 3.00 2.88 3.94 2.47 12 5.88 8 0.88
3 8.25 1.13 5.00 3.13 3.50 4.63 3.07 15 6.63 8 0.88
3 1/2 9.00 1.19 5.50 3.19 4.00 5.25 3.55 18 7.25 8 0.88
4 10.00 1.25 6.19 3.38 4.50 5.75 4.03 25 7.88 8 0.88
5 11.00 1.38 7.31 3.88 5.56 7.00 5.05 32 9.25 8 0.88
6 12.50 1.44 8.50 3.88 6.63 8.13 6.07 42 10.63 12 0.88
8 15.00 1.63 10.63 4.38 8.63 10.25 8.63 67 13.00 12 1.00
10 17.50 1.88 12.75 4.63 10.75 12.63 10.02 91 15.25 16 1.13
12 20.50 2.00 15.00 5.13 12.75 14.75 12.00 140 17.75 16 1.25
14 23.00 2.13 16.25 5.63 14.00 16.75 13.25 180 20.25 20 1.25
16 25.50 2.25 18.50 5.75 16.00 19.00 15.25 250 22.50 20 1.38
18 28.00 2.38 21.00 6.25 18.00 21.00 17.25 320 24.75 24 1.38
20 30.50 2.50 23.00 6.38 20.00 23.13 19.25 400 27.00 24 1.38
22 33.00 2.63 25.25 6.50 22.00 25.25 21.25 465 29.25 24 1.63
24 36.00 2.75 27.25 6.63 24.00 27.63 23.25 580 32.00 24 1.63

ASME raised face flange Standards

specific standards for raised face flanges to ensure they meet dimensional, pressure, and material requirements in various industrial applications. The primary standards governing raised face flanges include:

1. ASME/ANSI Standards (American)

  • ASME B16.5– Pipe Flanges and Flanged Fittings (NPS 1/2" to 24").
  • ASME B16.47 – Large Diameter Steel Flanges (Series A & B, NPS 26" to 60").
  • ASME B16.36 – Orifice Flanges.
  • ASME B16.48 – Line Blanks (Spectacle, Spade, and Spacer Flanges).
  • ANSI B16.1 – Cast Iron Flanges and Flanged Fittings.
  • ANSI B16.42 – Ductile Iron Pipe Flanges and Flanged Fittings.

2. ISO Standards (International)

  • ISO 7005-1 – Steel Flanges for General Applications.
  • ISO 7005-2 – Cast Iron Flanges.
  • ISO 7005-3 – Copper Alloy Flanges.

3. EN Standards (European)

  • EN 1092-1 – Steel Flanges.
  • EN 1092-2 – Cast Iron Flanges.
  • EN 1092-3 – Copper Alloy Flanges.
  • EN 1092-4 – Aluminium Alloy Flanges.

4. DIN Standards (German)

  • DIN 2527 – Blind Flanges.
  • DIN 2576 – Slip-On Flanges (PN 10).
  • DIN 2633 – Weld Neck Flanges (PN 16).
  • DIN 2634 – Weld Neck Flanges (PN 25).
  • DIN 2635 – Weld Neck Flanges (PN 40).

5. JIS Standards (Japanese)

  • JIS B2220 – Steel Pipe Flanges.

6. GOST Standards (Russian)

  • GOST 12820 – Flat Flanges for Steel Pipe Joints.
  • GOST 12821 – Steel Welded Flanges for High-Pressure Applications.
  • GOST 33259 – Flange Connections for Industrial Equipment and Pipelines.

7. BS Standards (British)

  • BS 4504 – Circular Flanges for Pipes, Valves, and Fittings.
  • BS 10 – Specification for Flanges and Bolting.

8. API Standards (Oil & Gas)

  • API 6A – Wellhead and Christmas Tree Equipment Flanges.
  • API 605 – Large-Diameter Carbon Steel Flanges (merged into ASME B16.47 Series B).

9. AWWA Standards (Waterworks)

  • AWWA C207 – Steel Ring Flanges for Waterworks Service.

10. MSS Standards (Manufacturer's Standardization Society)

  • MSS SP-44 – Steel Pipe Flanges (merged into ASME B16.47 Series A).
  • MSS SP-51 – Flanges for Glass-Lined Equipment.

11. Material-Specific Standards (ASTM)

  • ASTM A105 – Carbon Steel Forged Flanges.
  • ASTM A182 – Alloy and Stainless Steel Forged Flanges.
  • ASTM A350 – Carbon and Low-Alloy Steel Flanges for Low-Temperature Service.
  • ASTM A694 – High-Strength Carbon and Alloy Steel Flanges for High-Pressure Applications.

12. Other Regional and Specialized Standards

  • KS B1511 – Korean Standard Flanges.
  • NF E29-206 – French Standard Flanges.
  • SANS 1123 – South African Standard for Steel Flanges.

WHY Arrow Piping Solutions For ANSI Raised Face Flange!

Arrow Piping Solutions offers high-quality ANSI raised face flanges made from superior materials, ensuring durability and reliability in high-pressure systems. Our custom solutions, precision manufacturing, and adherence to industry standards make us the ideal choice for all your flange needs.

Compliance with Industry Standards

Our ANSI raised face flanges adhere to the latest ASME B16.5 and ASME B16.47 standards, ensuring that they meet stringent quality and safety requirements for various industrial applications.

Custom Solutions

We offer customized ANSI raised face flanges in different sizes, pressure ratings, and materials to suit the specific needs of your projects, ensuring a perfect fit and reliable performance.

Precision Manufacturing

With advanced manufacturing processes and precision machining, our ANSI raised face flanges are designed to provide a leak-proof seal and ensure safe, efficient fluid and gas flow.

Experienced Team

With years of expertise, Arrow Piping Solutions' team provides expert advice, support, and customer service, ensuring that you select the best ANSI raised face flanges for your applications.

With years of expertise, Arrow Piping Solutions' team provides expert advice, support, and customer service, ensuring that you select the best ANSI raised face flanges for your applications

−

Raised face flanges provide a better sealing surface, reducing the risk of leaks under pressure. They are ideal for high-pressure systems, ensuring a secure and reliable connection.

Can raised face flanges be customized?

+

Yes, raised face flanges can be customized in terms of size, material, pressure rating, and gasket dimensions to meet specific project requirements.

What is the difference between a raised face and a flat face flange?

+

A raised face flange has a raised portion around the sealing surface, which helps create a better seal compared to a flat face flange that has no raised portion. Raised face flanges are typically used in higher pressure systems.
